Motor Manufacturer，Rreliable Quality， Price Concessions

|
| Place of Origin: | China |
| Brand Name: | VIC-TECH |
| Certification: | RoHS |
| Model Number: | 15m motor with gearbox |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | $3.2-$8/unit |
| Packaging Details: | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time: | 15-30 work days |
| Payment Terms: | MoneyGram, T/T, Western Union, T/T |
| Supply Ability: | 1000000units/year |
| Step Angle: | 18 ° | Voltage: | 5.0 V |
|---|---|---|---|
| Resistance: | 10 Ω ± 10% | Phase: | 60 MA |
| Type: | Permanent Magnet | Current: | 200 MA |
| High Light: | Customized Shaft Micro Stepper Motor,Worm Gearbox Micro Stepper Motor,Dia 15mm Geared Stepper Motor |
||

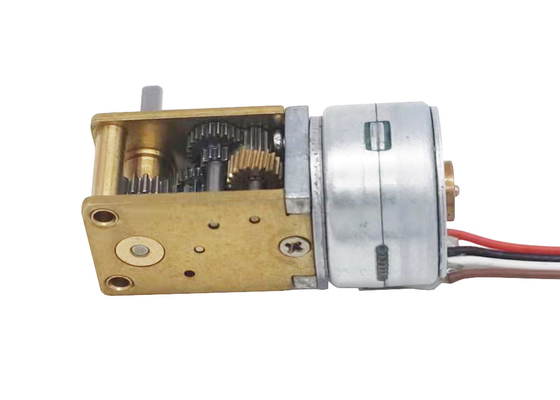

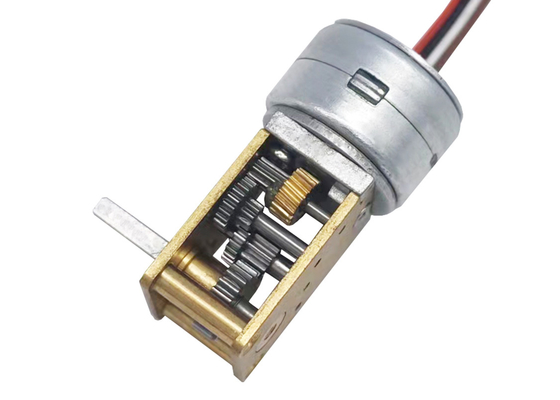

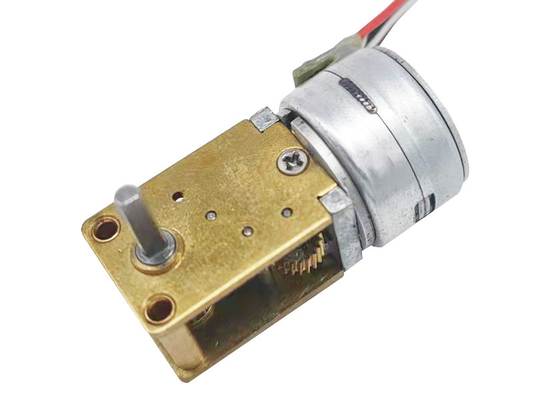

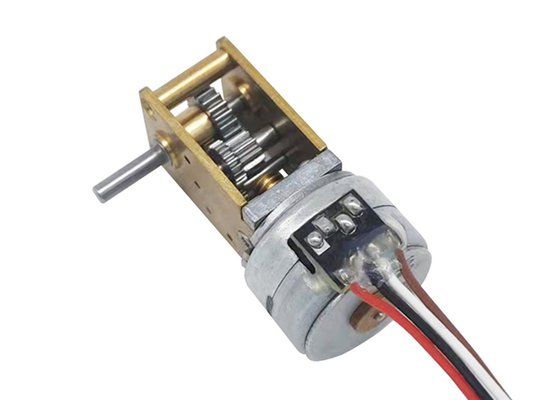

This is a 15mm stepper motor attached with a worm gearbox.
The output shaft is 2mm diameter D shaft, in general, it’s 3mm diameter D shaft.
You are free to change the length and design of output shaft.
We are different types of gear ratio for you to choose from 21:1 to 1030:1.
The bigger ratio it has, motor will rotate slower with bigger torque.
Please feel free to contact us if you want to buy few samples to test.
We don’t have MOQ, you can order any quantity you want.
Medical instruments
Precision instrument
Robot
Factory automation
Game machine
ATM equipment
Security equipment
Specifications
| Motor type | 15mm motor with gearbox |
| Model No. | 15- |
| Motor diameter | 15mm |
| Step angle | 18° |
| Coil resistance | 10 or 31Ω/phase |
| Output shaft |
2mm or 3mm diameter D shaft (customizable) |
| Gearbox type | 18*12mm worm gearbox |
| Gear ratio |
21:1, 42:1, 118:1, 236:1, 302:1, 515:1, 603:1, 798:1, 1030:1 |
Competitive Advantage
Near Shanghai port, the traffic is very convenient.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
