Motor Manufacturer，Rreliable Quality， Price Concessions
 |
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | VIC-TECH |
| Model Number: | SW2210A |
| Minimum Order Quantity: | 1Unit |
|---|---|
| Price: | $19.13-$33.32 |
| Packaging Details: | Standard export package, or can be customized |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Units/year |
| No-load Current:: | ≤1000mA | Load Current: | ≤1000mA |
|---|---|---|---|
| Load Speed: | 2500±8%rpm | Terminal Resistance: | 50±10%mΩ |
| Insulation Class: | 12.5A | Insulation Resistance: | 10mΩ Min |
| Weight: | 53g | Max Thrust: | 1.4kgf |
| Underwater Depth: | 200 Meter | ||
| High Light: | ROV Propulsion Motor,Underwater ROV Propulsion Motor,8V ROV Thruster Motors |
||

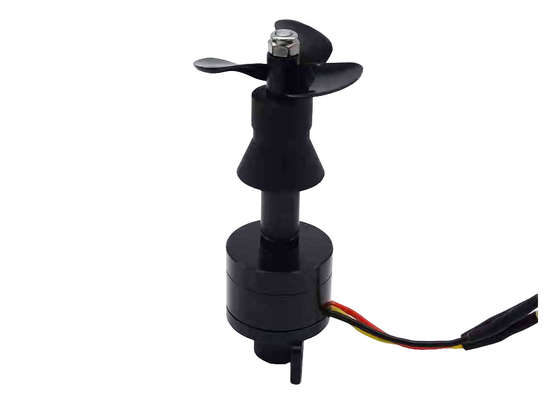

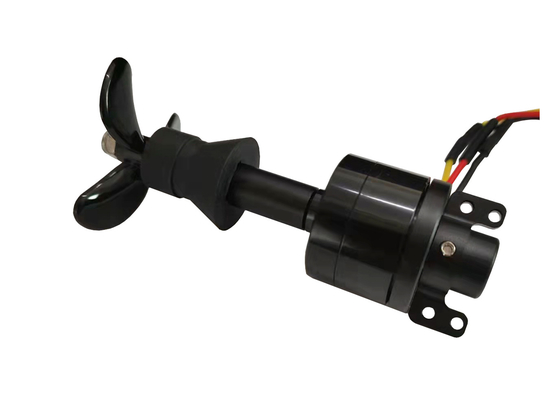

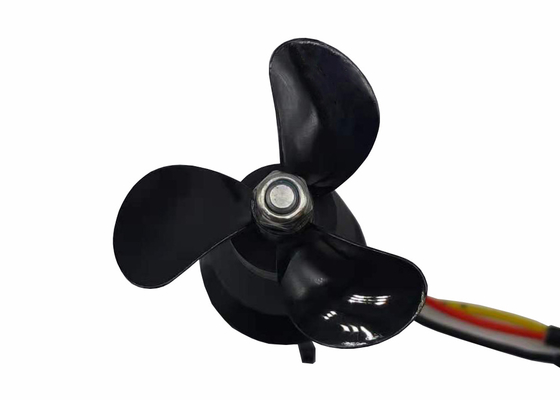

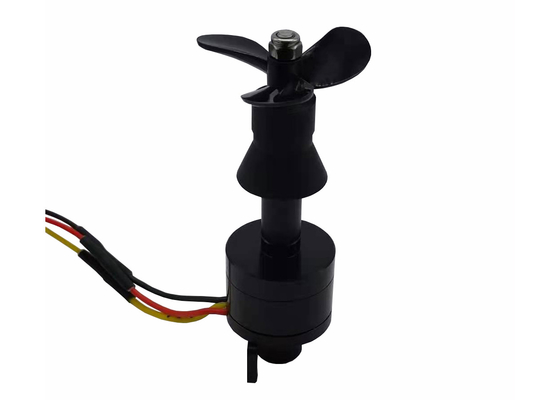

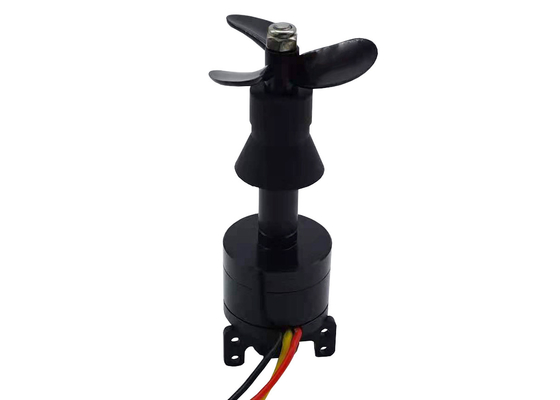

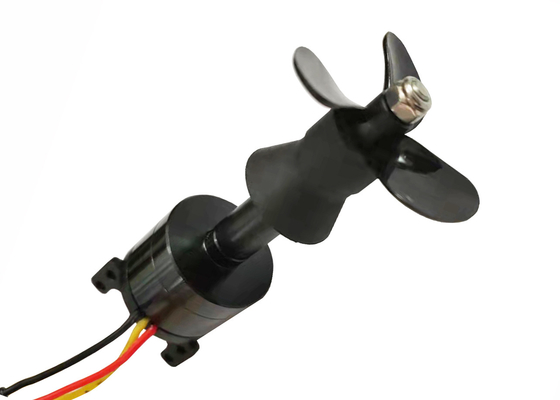

SW2210 water underwater motor, beautiful appearance, small size, long life, low noise technology, high energy saving rate, large torque and high precision. Wide range of applications in precision electronic equipment, automation equipment, water and underwater equipment, aircraft model drones and intelligent robots. We are a manufacturer specializing in R&D, production and sales of underwater motors. We have a wealth of production experience, a wide range of products, and a wide range of specifications. At the same time, we are the source factory direct sales, reliable quality, large inventory, and reasonable price.
Typical Applications
| Model: | SW2210A with long shaft | |||
| Weight: | Long shaft 75g | |||
| Unloaded current: | 0.25A/11.1V | |||
| Rated voltage: | 11.1V | |||
| Rated current: | 6A | |||
| Rated power: | 100W | |||
| Electrical resistance(Three Phase): | 0.55Ω±5% | |||
| Motor inductance: | 60.5uH | |||
| Nominal torque: | 0.25N.M | |||
| Rated voltage: | 11.1V | |||
| Dielectric strength: | AC300V/60s ≤5mA, No breakdown on the motor | |||
| Pressure resistance: | 1.5Mpa,No leakage in motor and wire | |||
