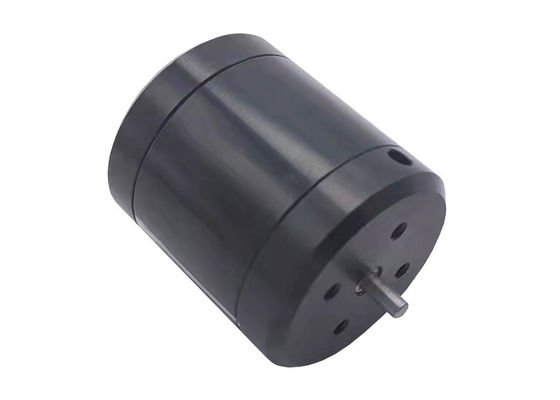

3kg Thrust Underwater Thruster Motor Brushless SW2820

  • 3kg Thrust Underwater Thruster Motor Brushless SW2820
  • 3kg Thrust Underwater Thruster Motor Brushless SW2820
  • 3kg Thrust Underwater Thruster Motor Brushless SW2820
  • 3kg Thrust Underwater Thruster Motor Brushless SW2820
Place of Origin Guangdong, China (Mainland)
Brand Name VIC-TECH
Model Number SW2820
Minimum Order Quantity 1Unit
Price $35.6-$49.8
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
No-load Current ≤1000mA Load Current ≤1000mA
Load Speed 2500±8%rpm Terminal Resistance 50±10%mΩ
Insulation Class 8A Insulation Resistance 10mΩ Min
Weight 76g Voltage Range 16-32V （6-12S）
High Light

3kg Thrust Underwater Brushless Motor

,

Brushless Underwater Thruster Motor

,

SW2820
Leave a Message
Product Description

Underwater Thruster Underwater Motor 3kg Thrust Underwater Brushless Motor SW2820



Product Name: SW2820 underwater underwater propeller diving equipment motor
Product brand: SUMAX
Product advantages: stable performance, long-lasting cruise, light and sensitive, and widely used
Product use: Wide range of applications in precision electronic equipment, automation equipment, water and underwater equipment, aircraft model drones and intelligent robots







3kg Thrust Underwater Thruster Motor Brushless SW2820 0



Mechanical Dimension:MM



3kg Thrust Underwater Thruster Motor Brushless SW2820 1



Technical Features



24V

Model  Voltage(V) No Load  Rated Load  Stall
  Operating Range Rated Speed (rpm) Current (A) Torque (mNm) Speed (rpm) Current (A) Output P. (W) Torque (mNm) Current (A)
2820 24～36 24 7080 0.3 542 3540 13.5 201 1079 25A



36V

Model  Voltage(V) No Load  Rated Load  Stall
  Operating Range Rated Speed (rpm) Current (A) Torque (mNm) Speed (rpm) Current (A) Output P. (W) Torque (mNm) Current (A)
2820 24～36 36 10560 1 724 4631 16 400W 1650 35A


Typical Applications

  • Precision Electronic Instrument
  • Automation Equipment
  • Underwater Equipment
  • Aircraft Model Drone
  • Smart Robot

Specifications

Model: SW2820
Weight: Short shaft 75g
Unloaded current: 0.25A/11.1V
Rated voltage: 11.1V
Rated current: 6A
Rated power: 100W
Electrical resistance(Three Phase): 0.55Ω±5%
Motor inductance: 60.5uH
Nominal torque: 0.25N.M
Rated voltage: 11.1V
Dielectric strength: AC300V/60s ≤5mA, No breakdown on the motor
Pressure resistance: 1.5Mpa,No leakage in motor and wire



Torque Curve For Reference

3kg Thrust Underwater Thruster Motor Brushless SW2820 2



Instructions for use

3kg Thrust Underwater Thruster Motor Brushless SW2820 3



Product Detail Presentation

3kg Thrust Underwater Thruster Motor Brushless SW2820 4

3kg Thrust Underwater Thruster Motor Brushless SW2820 5

3kg Thrust Underwater Thruster Motor Brushless SW2820 6
