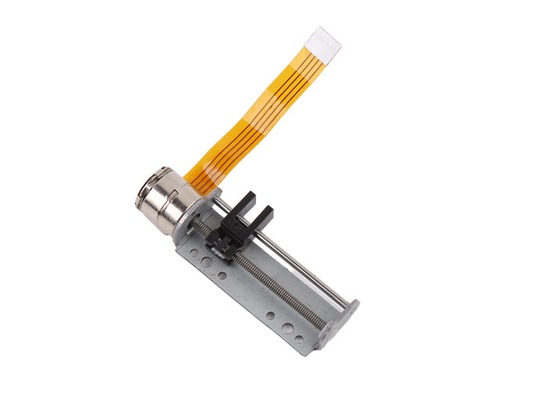

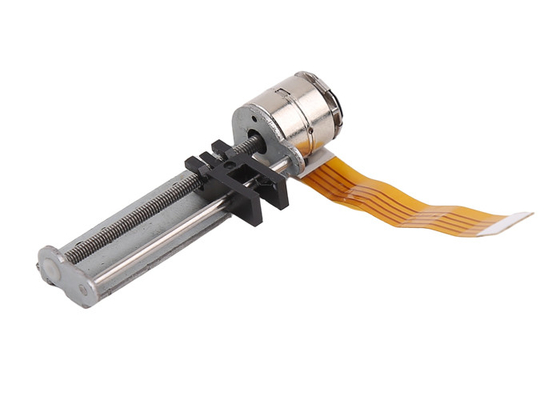

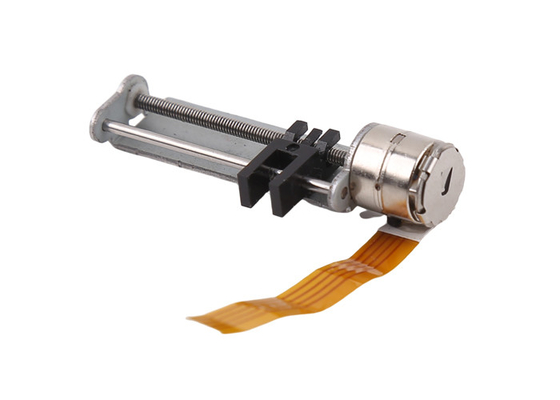

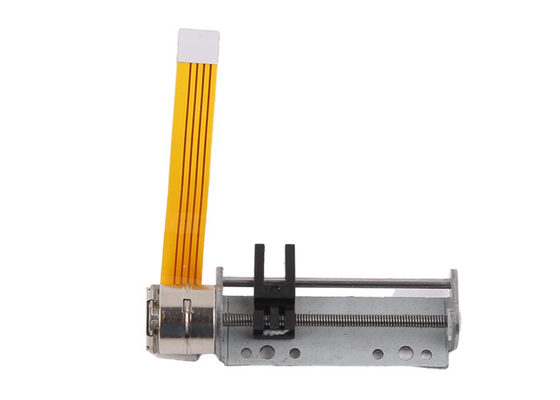

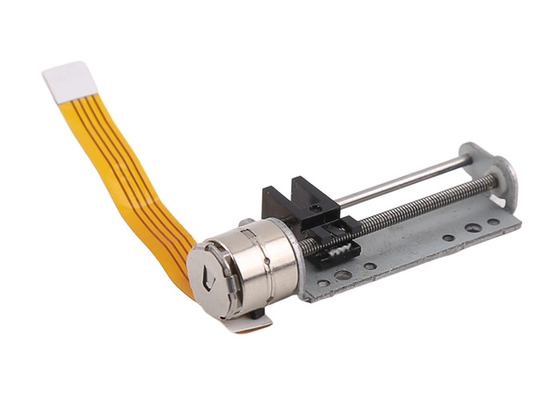

2 phases Micro Electric Motor 8mm Diameter Linear Stepper Motor And Slider
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM08248 |
| Minimum Order Quantity | 1Unit |
| Price | $5~$7/Unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time | 10-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 18 Degree | Phase | 2 Phases |
|---|---|---|---|
| Voltage | 3.3 V | Type | Permanent Magnet |
| Thrust | Over 80 G | Motor Type | Linear Stepper Motor |
| Motor Diameter | 8mm | ||
| Highlight | 5mm Diameter Linear Stepper Motor,Gearbox Micro Linear Stepper Motor,Slider Linear Stepper Motor 5V |
||
Product Description
Micro 10mm diameter linear stepper motor with slider
VSM08248 is a 8mm diameter precision screw motor.
The stepping angle of the motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving precise control.
The actuator adopts a subdivision driving method to meet the requirements.
Our team has over 10 years of experience in stepper motor design, development, and production, and can achieve product development and auxiliary design based on customers' special needs!
The customer's needs are our efforts, please feel free to contact us!
Please feel free to contact us if you want to order samples.
Mechanical Dimension:MM
Typical Applications
-
Intelligent Security Products
-
Camera Lenses
-
Door Locks
-
Wearable device
Specifications
| Model number | VSM08248 |
| Motor type | Linear stepper motor |
| Motor diameter | 8mm |
| Rated voltage | 3.3V |
| No.of phases | 2 phases |
| Coil resistance | 16Ω±10% |
| Max,starting frequeny | 800 pps min(AT 3.3V) |
| Max.slewing frequency | 1200pps min(AT 3.3V) |
| Stroke | About 40mm |
| Thrust | 80 g |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
