Planetary Gearbox Micro Stepper Motor 8mm For Electronic Product
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM08GB |
| Minimum Order Quantity | 1 Unit |
| Price | $5-$10/unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram, T/T, Western Union, T/T |
| Supply Ability | 1000000units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle | 18 ° | Motor Type | Stepper Motor With Gearbox |
|---|---|---|---|
| Resistance | 14 Ω ± 8% | Phase Current | 450mA Max |
| Gear Ratio | 20:1 | Voltage | 5V DC |
| Highlight | Planetary Gearbox Micro Stepper Motor,Electronic Product 8mm Micro Stepper Motor,450mA Geared Stepper Motor |
||
Product Description

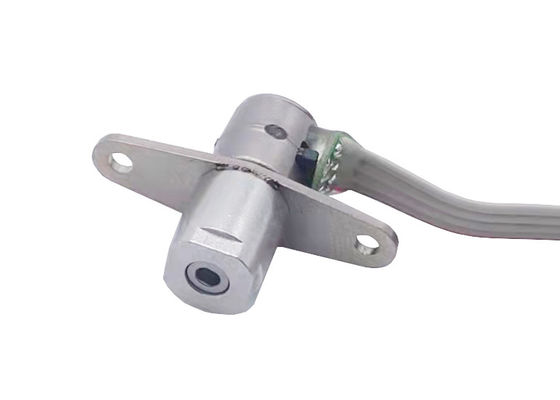

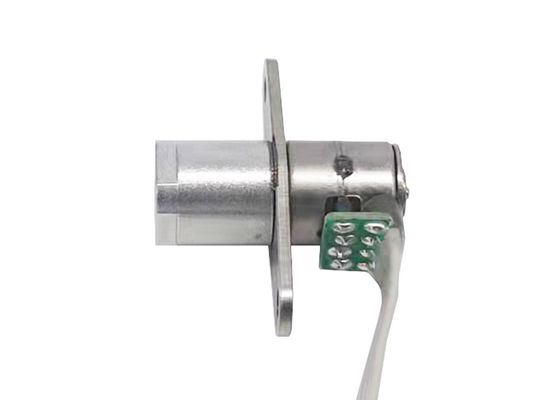

8mm micro stepper motor with planetary gearbox for electronic product
This is a 8mm stepper motor, with a 20:1 gear ratio gearbox.
This motor is design for precise control of electronic devices.
There is a race track shape hole on top of this motor, when motor spins, it will spin as well.
You just need to design a shaft with the exact same shape, and insert shaft inside the hole, and this motor will drive your device.
There are two 2.1mm diameter holes (21mm distance), and they are location holes, for you to find correct location during installation.
Mechanical Dimension:MM
Typical Applications
-
Medical instruments
-
Precision instrument
-
Robot
-
Factory automation
-
Game machine
-
ATM equipment
-
Security equipment
Specifications
| Motor type | Stepper motor + gearbox |
| Motor diameter | 8mm |
| Driving voltage | 5 V DC |
| Coil resistance | 15Ω±8% |
| Phase current | 540 mA Max |
| Excitation method | 2-2 phase exciting mode |
| Gear ratio | 20:1 |
| Output torque | 100 g*cm Min (1100 PPS, 5V) |
| Max self-starting frequency | 1800 PPS Min |
| Max response frequency | 3500 PPS Min |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Type of Wire Connect
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Product Detail Presentation
