Lead Screw Linear Hybrid Stepper Motor SM86C0905 NEMA34 86mm With Nut
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | SM86C0905 |
| Minimum Order Quantity | 1Unit |
| Price | $160~$120/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 10000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance | 1.6Ω/phase | Phase | 2 Phases, 4 Steps |
|---|---|---|---|
| Type | Hybrid Linear Stepper Motor | Step Angle | 1.8° |
| Thrust | Over 50 KG | Weight | 2.3KG |
| Highlight | Linear Hybrid Stepper Motor 86mm,NEMA34 Hybrid Stepper Motor,Nut Lead Screw Stepper Motor |
||
Product Description

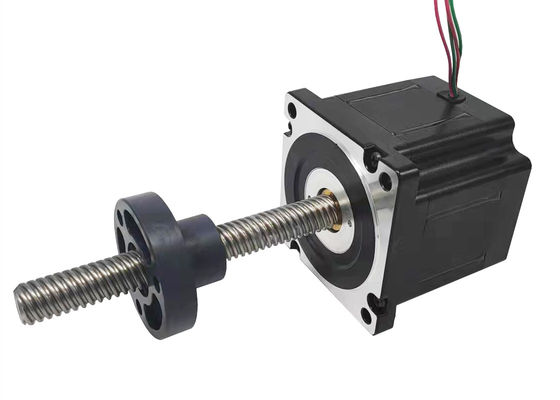

SM86C0905 NEMA34 1.8 degree stepper angle lead screw 86mm linear hybrid stepper motor with nut
This is 86 mm stepper motor attached with lead screw and nut on top.
We have two types material on nut, including POM and PPS.
Both of them are plastic, with self-lubricating function.
The step angle of this motor is 1.8°, which means when this motor takes 200 steps, it will rotate one turn.
The lead crew’s lead is 12.7mm, so linear travel each step is 12.7/200 = 0.0635mm/step
This motor is used on high precision systems/devices, such as 3D printer, or machine tools.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Design Layout (Unit:mm)
Parameter sheet:
| Motor type | Linear hybrid stepper motor |
| Motor diameter | 86mm |
| Lead screw lead | 12.7mm |
| Linear travel per step | 0.0635mm/step |
| Step angle | 1.8° |
| Resistance | 1.6Ω/phase |
| Inductance | 8.8mH/phase |
| Minimal thrust at 300 PPS | 50KG |
| Nut material | POM or PPS |
| Net weight | 2.3KG (5.1lbs) |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
