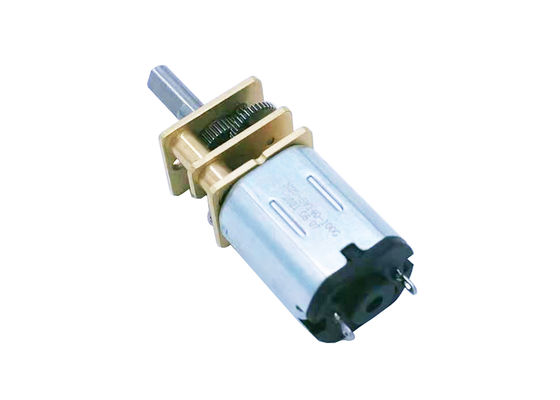

Electronic Lock 12mm Metal Gearbox N20 Dc Gear Motor With Encoder
Place of Origin | Jiangsu, China (Mainland) |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS |
Model Number | N20-12GB-380G |
Minimum Order Quantity | VIC-TECH |
Price | $1.85~$5/unit |
Packaging Details | Standard export package, or can be customized |
Delivery Time | 15-30 work days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000000Units per year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 2.4~6( V ) | Output Power | 0.1~1.6( W ) |
---|---|---|---|
Type | DC Motor | Usage | Door Locks And 3D Printers |
Certification | CE, ROHS | Torque | 0.0005~0.002( NM ) |
Commutation | Brush | Speed(RPM) | 10~9000( Rpm ) |
Continuous Current(A) | 0.05~0.5( A) | Gear Ratio | 1:2~1:1000 |
Highlight | 12mm Metal Gearbox Dc Gear Motor,Electronic Lock Dc Gear Motor,N20 Dc Electric Brush Motor |
For Electronic Lock Dc Electric Brush Motor High Quality 12mm Metal Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder
N20 is a DC gear motor made of precious metal brushed DC motor with precision metal reducer. The outer dimensions are oblate, outer diameter 12, flat 10, motor length 15mm, the length of the gearbox is
18MM, DC motor because of mature technology, low price, simple drive control and widely used in cameras, copiers, door locks, optical drives, precision instruments, cameras and other fields.
After supporting the gearbox, the torque is greatly increased, the speed is reduced, and it is easy to control!
Our gearboxes are processed and assembled by imported machine tools to ensure that the accuracy of each gear is higher than other manufacturers in the same industry, so the gearbox is stable in transmission, low in noise, high in efficiency, reliable in structure, long in life and quality.
stability.
Our team has more than 10 years of experience in micro-motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
N20 DC gear motor has beautiful appearance, small size, light weight, easy to install, long life, low noise technology, high energy saving rate, zero momentum, large torque and high precision.
Mechanical Dimension:MM
Technical Features
N20 DC gear motor has beautiful appearance, small size, light weight, easy to install, long life, low noise technology, high energy saving rate, zero momentum, large torque and high precision.
1:12*10mm gearbox with N20 permanent magnet DC motor
2: Meets EU environmental standards. Low energy consumption, low noise
3: Can be equipped with encoder. The number of pulses is 3ppr
4: Reduction ratio: 1:3.1:5.1:10.1:20.1:30.1:50.1:63.1:100.1:150.1:210.1: 250.1:298.1:380.1:500.1:1000
5: The product is suitable for: electronic door locks, intelligent switches, steam hair straighteners (water spray straight hair), label stripping agent, smart wear, smart machine 3D printing equipment products, hair curlers, safes, electric screwdrivers, display stands, etc.
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
Specifications
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | CURRENT | TORQUE | |
(r/min) | (A) | (r/min) | (A) | (g.cm) | (W) | (A) | (g.cm) | |||
N20VA-13115 | 1.5-3.0 | 2.4V CONSTANT | 15800 | 0.096 | 12250 | 0.33 | 2.91 | 0.37 | 1.15 | 13 |
N20VA-08260 | 4.5-6.0 | 5.0V CONSTANT | 14600 | 0.04 | 11160 | 0.14 | 2.59 | 0.3 | 0.45 | 11 |
REDUCTION RATIO |
1:3.1:5.1:10.1:20.1:30.1:50.1:63.1:100.1:150.1:210.1: 250.1:298.1:380.1:500.1:1000 |
Product Detail Presentation
N20 micro DC brushed motor 3V-12V horizontal gear reducer for shared bicycle smart lock
China 12mm 5v dc gear motor special motor for electronic lock
