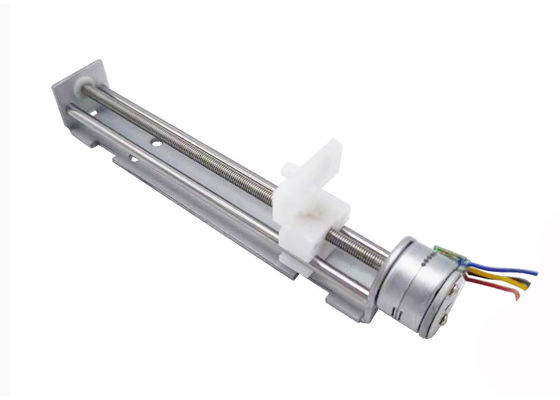

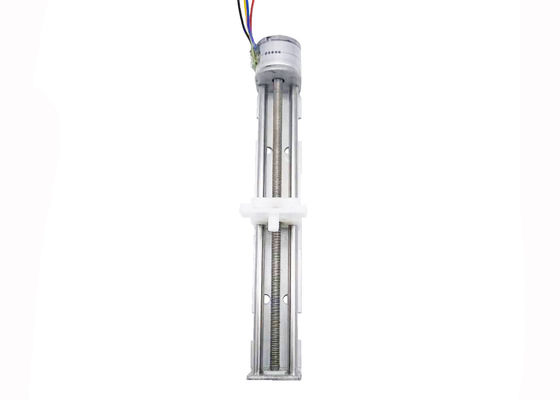

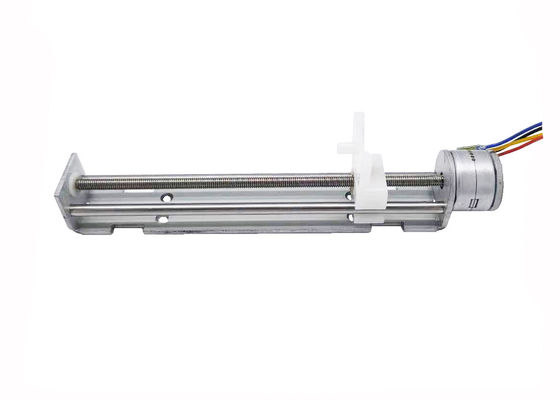

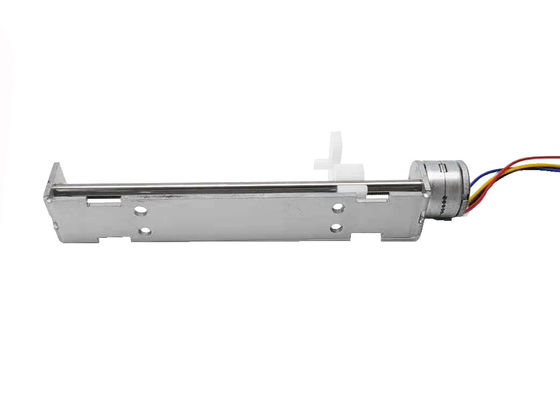

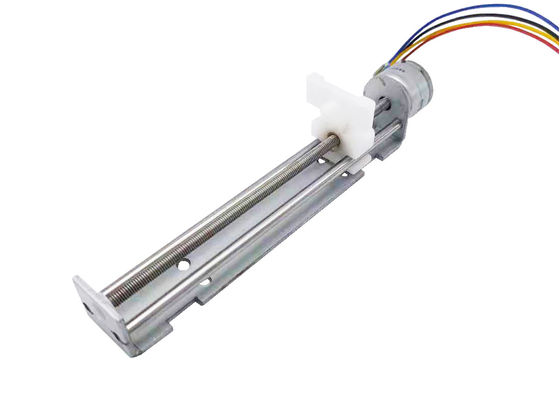

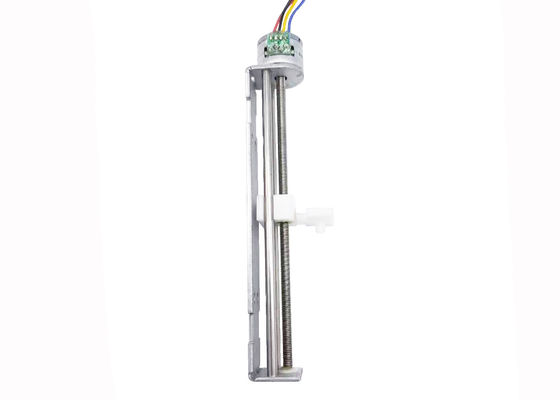

Plastic Slider Linear Stepper Motor with 21mm Stroke 0.025mm Step Length and M3*0.5P Thread
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM15-80L |
| Minimum Order Quantity | 1 unit |
| Price | $7-$15/unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union,MoneyGram，Credit Card |
| Supply Ability | 1000000 units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Permanent Magnet | Step Angle | 18°/step |
|---|---|---|---|
| Phase | 2 Phases | Current / Phase | 800mA/PHASE |
| Rated Voltage | 12 V DC | Coil Resistance | 15±10%Ω/PHASE(20℃) |
| Thrust | Over 1 KG | ||
| Highlight | Linear Stepper Motor Dia 15mm,1kg Thrust Linear Stepper Motor,2 Phases Plastic Slider Stepper Motor |
||
Product Description
SM15-80L 2 Phases Plastic Slider Linear Stepper Motor Dia 15mm With 500g Thrust
This 20mm linear motor features a copper slider with two linear bearings that significantly improve slider stability. The lead screw has a regular M3*0.5P thread, meaning one motor rotation moves the slider one pitch (0.5mm). With a step angle of 18 degrees, the motor takes 20 steps per rotation, resulting in a step length of 0.025mm.
Ideal for precise linear control applications, this motor delivers over 1kg (10N) of thrust and offers a 21mm stroke (total travel distance from end to end).
Technical Specifications
| Parameter | Value |
|---|---|
| Model No. | SM15-80L |
| Current Per Phase | 800 mA/Phase(1000pps) |
| Coil Resistance | 15±10% ohm/PHASE(20℃) |
| Rated voltage | 12 V DC |
| No. of phases | 2 phases |
| Step Angle | 18°/STEP |
| Excitation Method | 1-2 Phases Drive |
| Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 500g AT 125PPS |
| Max Response frequency | More Than 1600 PPS |
| Max Starting Frequency | More Than 1100 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50mΩ(DC 500 V) |
| Operating Temperature | -0~55℃ |
| Motor Surface Temperature | 80℃ or less |
Primary Applications
- Camera systems
- Optical instruments
- Lens mechanisms
- Precision medical devices
- Automatic door locks
Wiring Connection Options
The motor input features an FPC connection, but can be customized to include connecting line needles, PCB, or other forms based on customer requirements.
