Customized Magnetic Encoder N20 DC Brushed Motor With Gearbox And Worm Output Shaft
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | N20-12GB-EN |
| Minimum Order Quantity | 1 Unit |
| Price | $3.5~$10/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 2.4~6( V ) | Output Power | 0.1~1.6( W ) |
|---|---|---|---|
| Type | DC Motor | Certification | CE, ROHS |
| Commutation | Brushed | Gear Ratio | 5:1, 50:1, 100:1, 250:1, 500:1 |
| Encoder | Magnetic Encoder | ||
| High Light | N20 DC Brushed Motor,Magnetic Encoder DC Brushed Motor,Worm Output Shaft DC Gear Motor |
||
Product Description

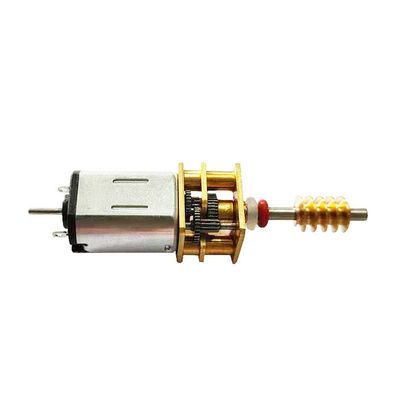

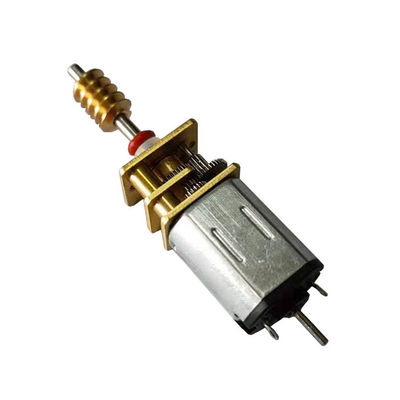

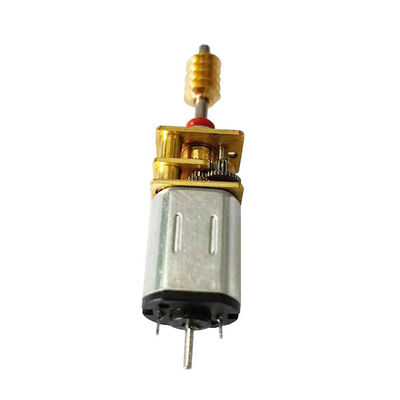

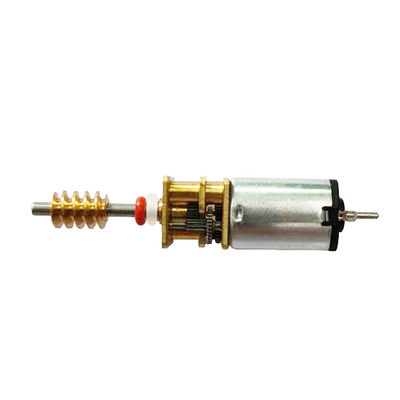

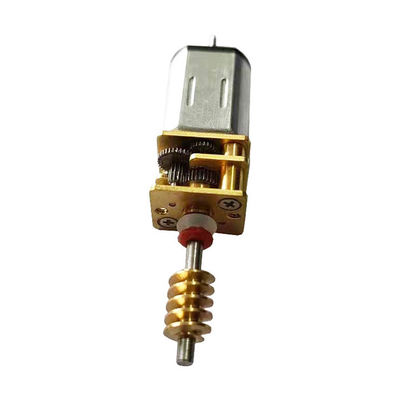

Customized magnetic encoder N20 DC brushed motor with gearbox and worm output shaft
This is a N20 motor attached with a gearbox on top and magnetic encoder at bottom.
This motor has worm shaft on top (customized), you are free to change its design based on your own requirement.
About gearbox, we have different gear ratio for you to choose, from 2:1 to 1000:1, the bigger ratio it has, motor will rotate slower, with bigger torque.
Also this motor has an magnetic encoder on at the bottom, we have 3PPR, 7PPR, 12PPR, different gear ratio for you to choose.
You are free to customize motor’s design.
Mechanical Dimension:MM
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
Electrical Parameters
| Motor type | N20 motor + gearbox |
| Model | 12GB-N20 |
| Voltage | 3.3V |
| Motor original speed | 16000RPM (unloaded) |
| Encoder type | Magnetic encoder |
| Encoder resolution | 3PPR, 7PPR, 12PPR |
| Output shaft | Worm shaft (customized) |
| Gear box ratio | 2:1, 5:1, 10:1, 15:1, 20:1, 30:1, 36:1, 50:1, 63:1, 89:1, 100:1, 110:1, 120:1, 150:1, 172:1, 210:1, 250:1, 275:1, 298:1, 380:1, 420:1, 500:1, 600:1, 1000:1 |
