2 Phases 12V Voltage 7.5° Step Angle DC Metal Gear Motor Pm Motor For Biomedical Analyzer、Digital Electronics

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM35-048L-30 75G
Minimum Order Quantity 1Unit
Price $5~12/unit
Packaging Details Standard export package, or can be customized
Delivery Time 10~30 days after the sample is paid
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 10000 PCS 45days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12V NO Of Phase 2Phases
Step Angle 600VAC ISEC 1mA Ratio 1:30
Winding Resistance 30±7%Ωat 25℃ Current Per Phase 400mA
Max Pull-in Rate 400PPS Pull-in Torque At 200PPS 9000g.cm
Winding Temperature At 300PPS ≤65K
High Light

DC Metal Gear Motor 12V

,

7.5 Step Angle Metal Gear Motor

,

Pm Motor For Biomedical Analyzer

Leave a Message
Product Description

12V voltage 7.5° step angle DC metal gear motor Pm motor for biomedical analyzer

The SM35L-048 is a combination of a 35mm diameter micro stepper motor and a 37*14 precision metal gearbox with a customisable reduction ratio.
It can be applied to a wide range of requirements to precisely control the rotational position on site.

Gearbox gear ratios: 1:12 1:20 1:30 1:60 1:75 1:120, customers can match the reduction ratio to different use torque speed requirements.
At the same time giving the stepper motor the appropriate drive frequency will achieve a defined speed and torque.

The gearbox of this product adopts the most advanced international equipment to process the relevant parts, so it has high precision, high efficiency, low noise, and reasonable and reliable technology, which makes the product have better reliability.
The power input part and the standard stepper motor can be in the form of probe structure, FPC, FFC, PCB cable, etc.
The output part of the motor can be in various output structures, such as round shaft, D-axis and wire bar!

2 Phases 12V Voltage 7.5° Step Angle DC Metal Gear Motor Pm Motor For Biomedical Analyzer、Digital Electronics 0

Mechanical Dimension:MM

2 Phases 12V Voltage 7.5° Step Angle DC Metal Gear Motor Pm Motor For Biomedical Analyzer、Digital Electronics 1







Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

PRODUCT NAME 35mm geared stepper motor

Rated voltage

12V

NO of Phase

2Phases

Step Angle

7.5°

Ratio

1:12~1:120

Winding Resistance

30±7%Ωat 25℃

Current Per Phase

400mA

Max Pull-in Rate

400PPS

Pull-in Torque at 200PPS

9000g.cm

Winding Temperature at 300PPS

≤65K

Dielectric Strength

600VAC ISEC 1mA

OEM & ODM SERVICE

AVAILABLE

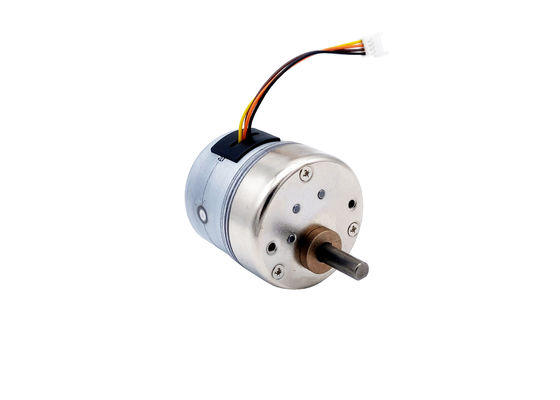

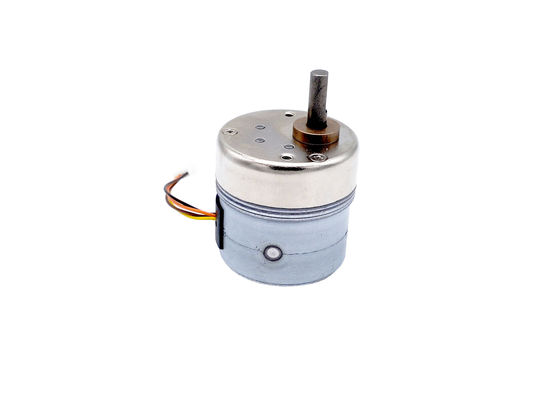

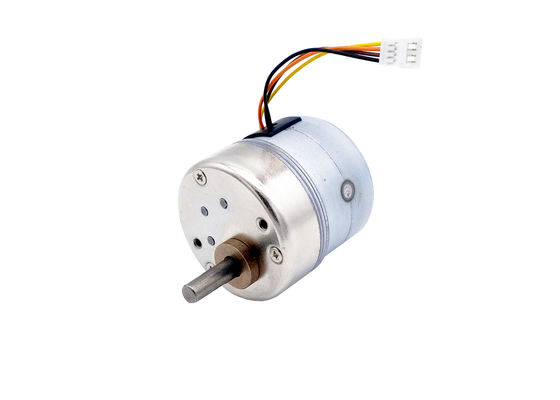

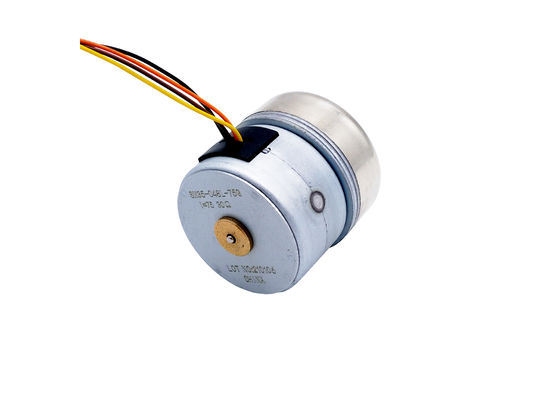

Product Detail Presentation



2 Phases 12V Voltage 7.5° Step Angle DC Metal Gear Motor Pm Motor For Biomedical Analyzer、Digital Electronics 2

2 Phases 12V Voltage 7.5° Step Angle DC Metal Gear Motor Pm Motor For Biomedical Analyzer、Digital Electronics 3
