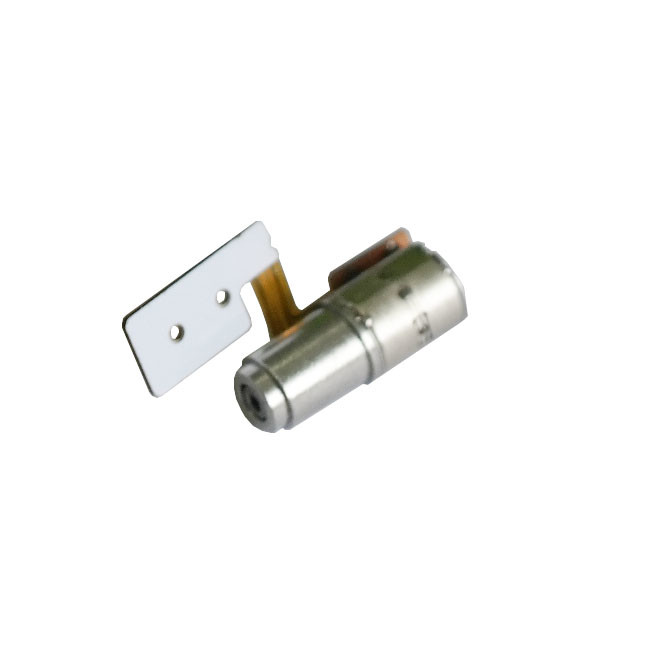

Small Size Micro 5mm Diameter Stepper Motor With Planetary Gearbox

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM5-PG
Minimum Order Quantity 1 Unit
Price $5-$15/unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms MoneyGram, T/T, Western Union, T/T
Supply Ability 1000000units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle 22.5° Motor Type Stepper Motor With Gearbox
Resistance 14Ω±8% Phase Current 450mA Max
Gear Ratio 20.25:1 Voltage 5V
Highlight

5mm Diameter Stepper Motor

,

Planetary Gearbox Stepper Motor

,

RoHS Micro Geared Stepper Motor

Leave a Message
Product Description

Small size micro 5mm diameter stepper motor with planetary gearbox

This is a 5 mm stepper motor with a planetary gearbox and gear ratio is 20.25:1.

This motor does not come with an output shaft, there is a hole on top with race track shape, when motor spins, the hole will spin as well.

Customer has to customize a output shaft to match the hole on this motor, and then insert the shaft inside of this motor. So the motor will drive the shaft when its working.

Due to its high precision, delicate design and small size, this motor is widely used on electronic products such as smart phones.

Please feel free to leave a message or inquiry, if you are interested in buy some samples for testing.

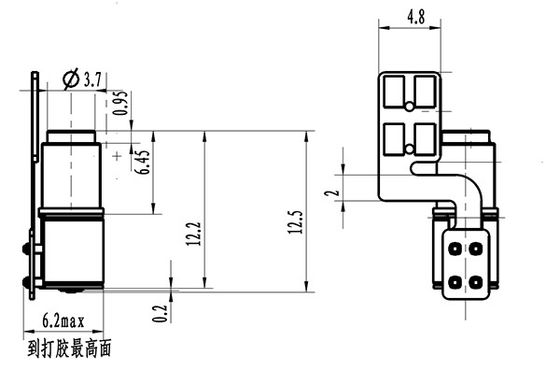

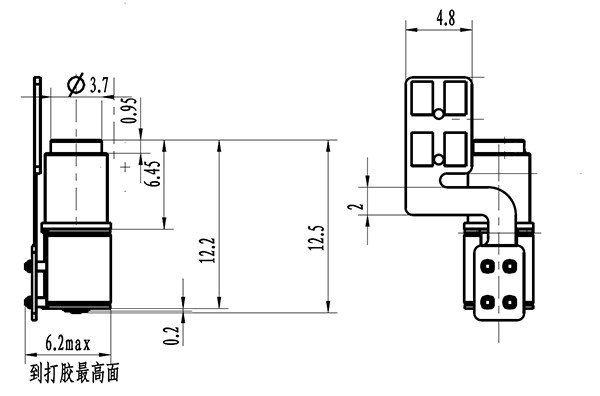

Mechanical Dimension:MM

Small Size Micro 5mm Diameter Stepper Motor With Planetary Gearbox 0

Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

Specifications



Motor type Planetary gearbox motor
Model number SM5-PG
Gearbox type Planetary gearbox
Gear ratio 20.25:1
Rated voltage 5V DC
Coil resistance 14Ω±8%
Step angle 22.5°/step
Phase current 450mA/phase Max
Pull-out torque 15g*cm Min(at 2400PPS, 5V DC)



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

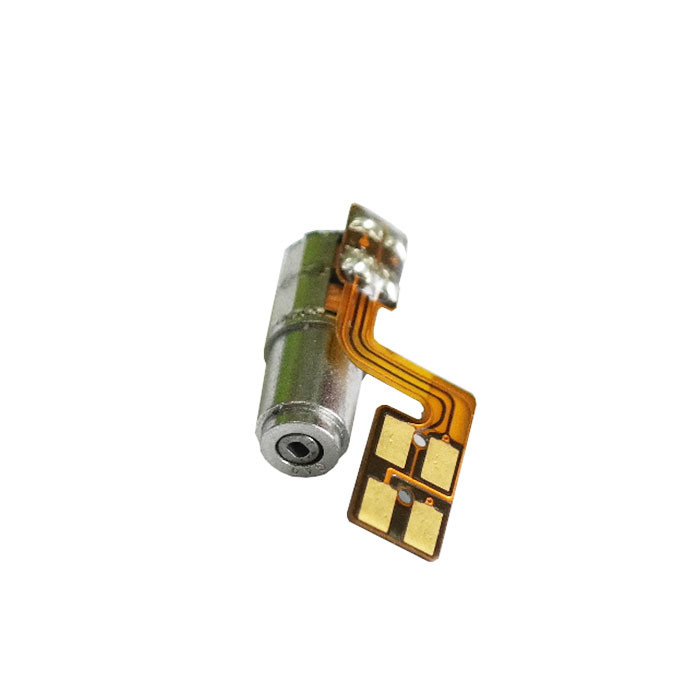

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Small Size Micro 5mm Diameter Stepper Motor With Planetary Gearbox 1

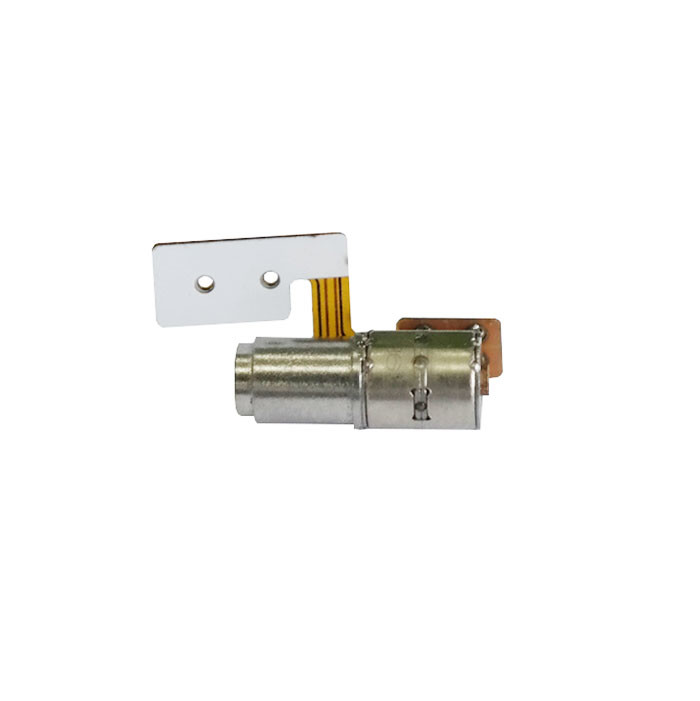

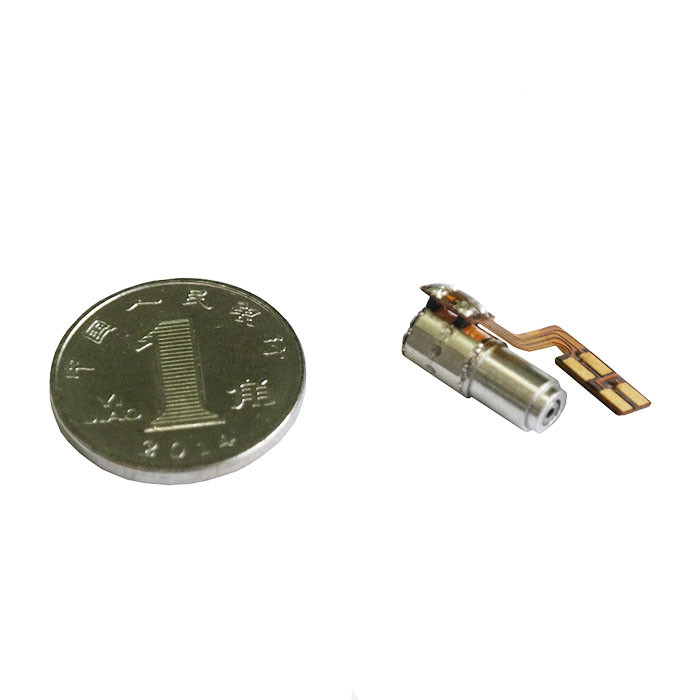

Product Detail Presentation

Small Size Micro 5mm Diameter Stepper Motor With Planetary Gearbox 2

Small Size Micro 5mm Diameter Stepper Motor With Planetary Gearbox 3
