High Positioning Accuracy Linear Stepper Motor 13mm Stroke 5 Volt 25mm Diameter 7.5° Stroke Step,angle 13mm
Place of Origin | China |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS |
Model Number | VSM25-48S-0127-13-002 |
Minimum Order Quantity | 1Unit |
Price | $6.5~$30/Unit |
Packaging Details | Standard export package, or can be customized |
Delivery Time | 15-30 work days |
Payment Terms | Western Union, T/T, L/C, MoneyGram |
Supply Ability | 1000000 Units/year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMotor Diameter | 25mm | Rated Voltage | 5V |
---|---|---|---|
Power | 3.85W | Phase Current | 370mA |
Phase Resistance | 13.5(±10%)Ohm/20C | Phase Inductance | 12.5(±20%)Mh/1kmz |
Step Angle | 7.5° | Screw Lead | 0.6096mm |
Step Travel | 0.0127mm | Linear Force | 55N/300PPS |
Stroke | 13mm | Insulation Resistance | 20mΩ(DC 500V) |
Insulation Class | B | Mass | 50g |
Highlight | 13mm Stroke Linear Stepper Motor,25mm Linear Stepper Motor,RoHS 5 Volt Stepper Motor |
High positioning accuracy, 13mm stroke, 5V voltage, 25mm diameter stepper motor
This stepper motor with a diameter of 25mm has a fixed shaft. In applications with short stroke requirements and where a rotation stop device cannot be provided, a fixed shaft can be recommended. This product can be used with precision instruments or electronic products, etc. It is widely used in various fields of industry.
Our products can be customized, if you are interested, you can write to me.
Mechanical Dimension:MM
Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
Typical Applications
-
Medical Equipment
-
Automatic Control
-
3D Printer
-
Precision Calibration
-
Precision Fluid Measurement
-
Precise Position Movement
Specifications
Motor diameter |
25mm |
Rated voltage |
5V |
Power |
3.85W |
Phase Current |
370mA |
Phase Resistance |
13.5(±10%)Ohm/20C |
Phase inductance |
12.5(±20%)Mh/1kmz |
Step angle |
7.5° |
Screw Lead |
0.6096mm |
Step Travel |
0.0127mm |
Linear Force |
55N/300PPS |
Stroke |
13mm |
Insulation Resistance |
20mΩ(DC 500V) |
Insulation Class |
B |
Operating Temp Range |
-20~+55℃ |
Storang Temp Range |
-40~+100℃ |
Mass |
50g |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.

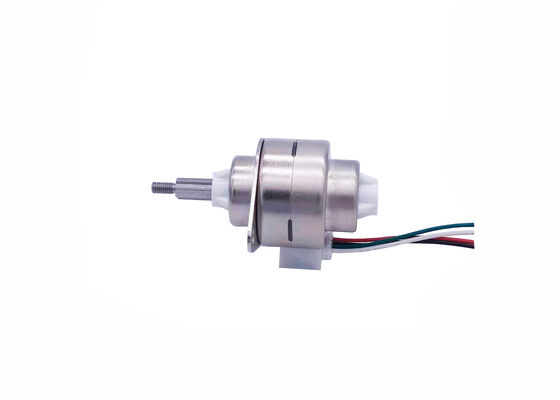

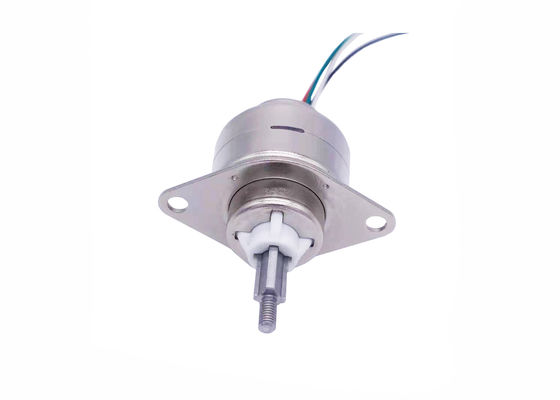

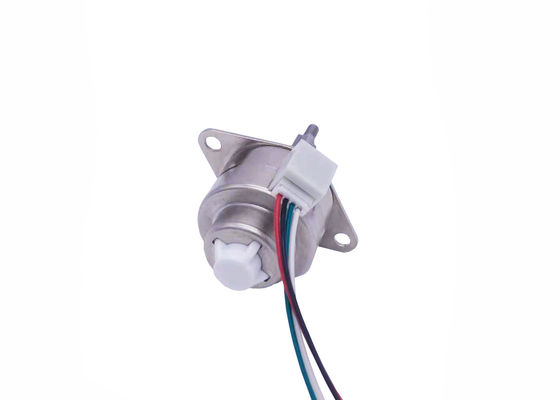

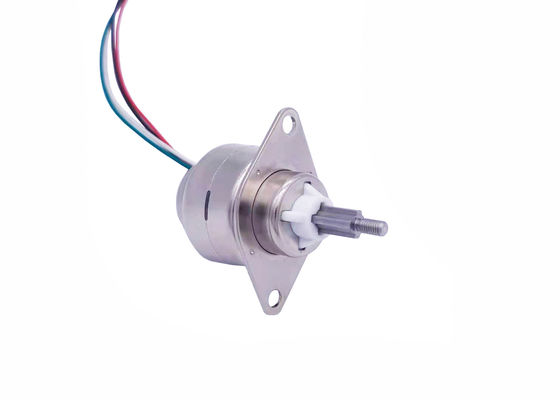

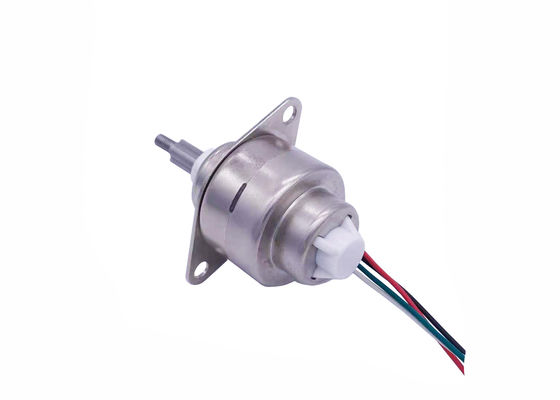

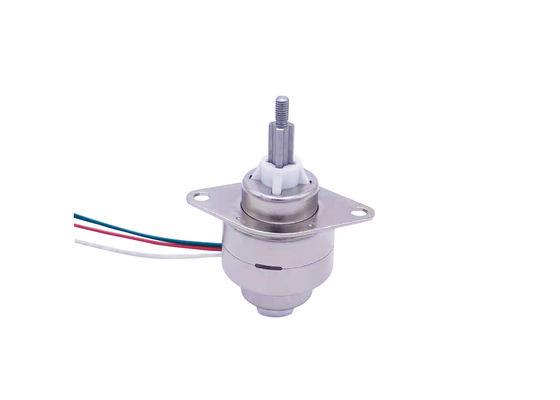

Product Detail Presentation
