Worm Shaft Gearbox 10mm Stepper Motor With Different Reduction Ratio Options
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM10-817G |
| Minimum Order Quantity | VIC-TECH |
| Price | $3.8~$7/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 20-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No. | SM10-817G-00 WX | Gearbox Size | 10*24*9 (v) |
|---|---|---|---|
| Resistance | 39Ω | Transmission Ratio | 500:1 |
| Step Angle | 18° | Line Length | 100mm |
| High Light | Worm Shaft Gearbox 10mm Stepper Motor,10mm Stepper Motor,RoHS Micro Dc Gear Motor |
||
Product Description

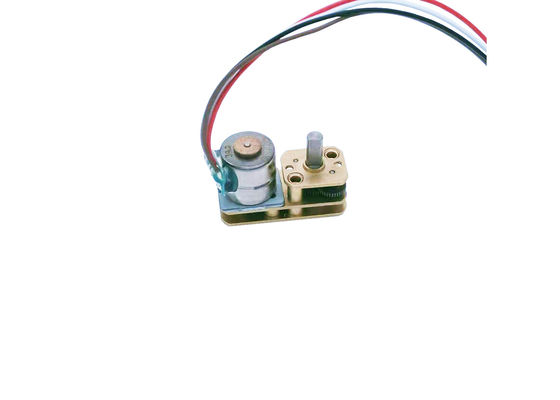

Widely Used Worm Shaft Gearbox 10mm Stepper Motor With Different Reduction Ratio Options
This is a 10mm worm motor with a reduction ratio. The smaller the reduction ratio, the faster its speed, and the larger the reduction ratio, the slower its speed. The speed can be adjusted at will according to the reduction ratio
Our team has more than 10 years of experience in the design, development and production of micro motors, so product development and auxiliary design can be realized according to the special needs of customers!
If you need our motor, you can contact me at any time
Mechanical Dimension:MM
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
Specifications
|
Model No. |
SSM10-817G-00 WX |
|||
|
diameter |
10mm |
|||
|
Output shaft |
D shaft |
|||
|
Gearbox size |
12*24*9 (v) |
|||
|
Reduction ratio |
2:1,5:1,10:1,15:1,20:1,30:1,36:1,50:1,63:1,67:1,89:1,100:1,110:1,120:1, 150:1,172:1,210:1,250:1,275:1,298:1,380:1,420:1,500:1,603:1,600:1,1000:1 |
|||
|
resistance |
39Ω | |||
|
Step angle |
18° |
|||
|
Line length |
100mm | |||
Product Detail Presentation
