High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox

  • High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox
  • High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox
  • High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox
  • High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox
  • High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM10-IG64
Minimum Order Quantity VIC-TECH
Price $50~$98/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000Units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 5V Type DC Motor
Usage Door Locks And 3D Printers Certification ROHS
Continuous Current(A) 0.025-0.1( A) Gear Ratio 1：4096
Highlight

VSM10-IG64

,

4096 Reduction Ratio Micro Planetary Gearbox

,

5V Micro Planetary Gearbox
Leave a Message
Product Description

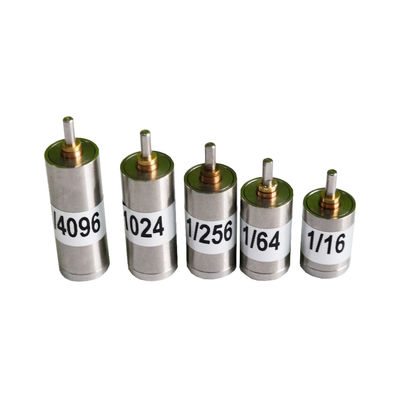

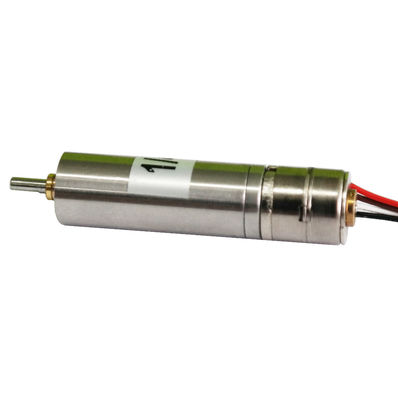

High Precision High Torque 4096 Big Reduction Ratio VSM10-IG64 Micro Planetary Gearbox

VSM 10- IG64 is a 10mm micro stepper motor attached with a planetary gearbox, planetary gearbox is high precision and high end gearbox, it looks extremely nice, and it’s more expensive compared to other gearboxes.

Motor basic step angle is 18 degrees, which means, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.005~4.5 degrees, can be used in many requirements, specially high precision industry such as medical equipment, measuring devices, etc.

A planetary gearbox can have several levels, each level, it is 4:1 gear ratio.

So with different levels, gear ratio can be 4:1, 16:1, 64:1, 256:1, 1024:1 and 4096:1, customers can choose different gear ratio, according to different use torque speed requirements of speed.
Given the proper driving frequency of the stepper motor can reach the determination of the speed.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.

The shaft of this gear box is standard 2mm D shaft.

About the motor, we have two type of coil resistance: 12.2Ω and 39Ω, lower resistance will have higher torque, and power consumption.

High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox 0



High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox 1

Mechanical Dimension:MM

High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox 2



Gearbox parameters:



Gear ratio 4:1 16:1 64:1 256:1 1024:1 4096:1

Rated tolerance torque

(gf*cm Max)

 50 100 300 400 500 600
Max momentary tolenrance torque 150 300 900 1200 1500 1800
Efficiency 85% 75% 65% 55% 45% 40%
Length(L) 11.7 14.8 17.9 21 24.1 27.2
Weight(g)/With sleeve bearings 6.2 7.2 8.2 10.2 11.2 13.2



Motor parameters:



PRODUCT NAME 10mm geared stepper motor
MODEL VSM10- IG64
CURRENT PER PHASE 250mA/PHASE
RESISTENCE 12.2Ω or 39Ω±7%
NO.OF PHASES 2 PHASES
PULL-OUT TORQUE MORE THAN 190gf-cm AT 500 PPS
HOLDING TORQUE MORE THAN 450 gf-cm AT 0pps
MAX RESPONSE FREQUENCY MORE THAN 1000 pps
MAX STARTING FREQUENCY MORE THAN 900pps
INSULATION STRENGTH 100 V AC FOR ONE SECONO
INSULATION RESISTANCE 500Ω DC 500V



Product Detail Presentation:



High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox 3

High Torque 4096 Reduction Ratio VSM10-IG64 Micro Planetary Gearbox 4







Tags:

miniature dc gear motor

metal gear dc motor

micro electric motor
