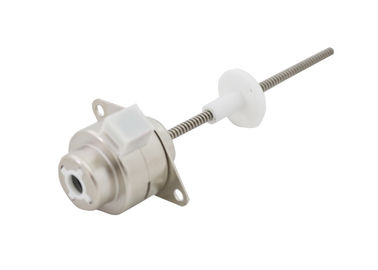

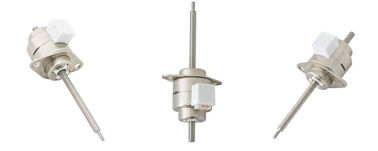

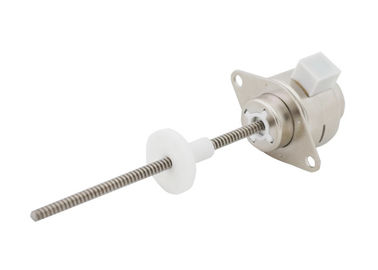

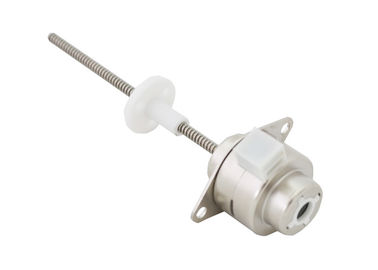

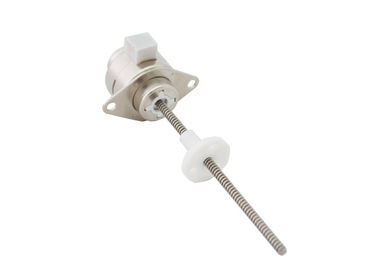

2 phases, 4 steps 12V 7.5 Degree Linear Stepping Motor With Lead Screw for Medical Equipment、Linear Robotic Control,etc
Place of Origin | China |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS, ISO9001 |
Model Number | SM20-021L |
Minimum Order Quantity | 1Unit |
Price | $7.5~$42/Unit |
Packaging Details | Standard export package in corrugated carton (Mass production). |
Delivery Time | 15-30 work days |
Payment Terms | Western Union, T/T, L/C, MoneyGram |
Supply Ability | 100000 Units/year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xResistance | 13Ω±10% | Phase | 2 Phases, 4 Steps |
---|---|---|---|
Type | Permanent Magnet(PM Motor) | Holding Torque | 20N |
Step Angle | 7.5°/15° | Rated Voltage | 12V |
Stroke | 14 Mm~38mm | Dimensions | Diameter 20 * Length 55 (mm) |
Highlight | 7.5 Degree Linear Stepping Motor,ISO9001 Linear Stepping Motor,20mm Linear Stepper Motor |
SM20-021L Low Noise 12V 7.5 Degree Linear Stepping Motor With Lead Screw And Nut
This SM20-021L stepper motor is specifically designed for linear movement application, with lead screw.
We have two step angle: 7.5 degree, lead pitch is 0.6096mm.
For 7.5 degree, each round is 48 steps, which mean each step lead screw moves 0.0127mm.
This 20mm stepper motor is our patented product. It converts the rotation of the motor into a linear movement of lead screw. It is mainly used in high precision.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Plus tt has extra low noise and high stability.
Design Layout (Unit:mm)
Parameter sheet:
RODUCT NAME | PM20 5v Linear stepper motor |
MODEL | SM20-021L-External type |
RESISTANCE | 13Ω±10% |
Pull in frequency | 600PPS |
THE MARK THRUST | 20N |
inductance | 4.5REF (mH) |
Mounting aperture | φ3.7mm (Through hole) |
Axial height | 35 mm customizable |
INSULATION CLASS | class E |
lead wrie | UL 1061 AWG26 |
Chart of Thrust vs speed(PPS):
Customization service
The motor can customize the normal screw stroke,
Connectors and outlet boxes can be customized according to customer requirements
The screw rod can also customize the nut
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
