20mm DC 7.5 15 Degree Mini Linear Stepping Motor

  • 20mm DC 7.5 15 Degree Mini Linear Stepping Motor
  • 20mm DC 7.5 15 Degree Mini Linear Stepping Motor
  • 20mm DC 7.5 15 Degree Mini Linear Stepping Motor
  • 20mm DC 7.5 15 Degree Mini Linear Stepping Motor
  • 20mm DC 7.5 15 Degree Mini Linear Stepping Motor
Place of Origin China
Brand Name VIC-TECH
Certification RoHS, ISO9001
Model Number SM20-020L
Minimum Order Quantity 1Unit
Price $7.5~$42/Unit
Packaging Details Standard export package in corrugated carton (Mass production).
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 100000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance 13Ω±10% Phase 2 Phases, 4 Steps
Type Permanent Magnet(PM Motor) Holding Torque 600g.cm
Step Angle 7.5°/15° Rated Voltage DC 5V
Lead Screw Pitch 0.6096 Mm
Highlight

20mm Linear Stepping Motor

,

15 Degree Linear Stepping Motor

,

7.5 Degree Linear Stepper Motor
Leave a Message
Product Description

High Precision Low Noise 20mm DC 7.5 15 Degree Stepping Angle Linear Lead Screw Mini Stepping Motor

This SM20-020L stepper motor is specifically designed for linear movement application, with lead screw.

We have two step angle: 7.5/15 degree, lead pitch is 0.6096mm.

For 7.5 degree, each round is 48 steps, which mean each step lead screw moves 0.0127mm.

For 15 degree, each round is 24 steps, which mean each step lead screw moves 0.0254mm.



This 20mm stepper motor is our patented product. It converts the rotation of the motor into a linear movement of lead screw. It is mainly used in high precision.



Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement



Plus tt has extra low noise and high stability.

20mm DC 7.5 15 Degree Mini Linear Stepping Motor 0

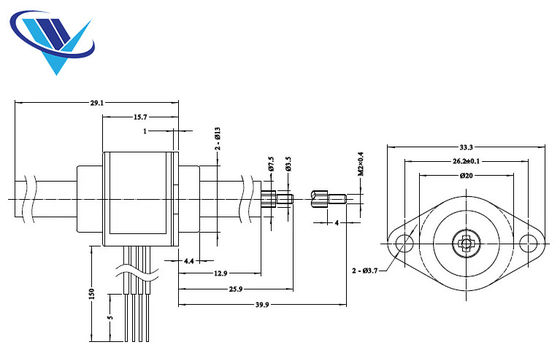

Design Layout (Unit:mm)

20mm DC 7.5 15 Degree Mini Linear Stepping Motor 1

Parameter sheet:

Product Type Permenent Magnet Stepper Motor
Model SM20-020L-Linear-Motor
Resistance 13Ω±10%
Frequency 670PPS
Max Thrust 600g
Inductance 4.5REF (mH)
Mounting aperture φ3.7mm (Through hole)
Axial height 25.9 mm
INSULATION CLASS class E
lead wrie UL 1061 AWG26
Customization Available



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

20mm DC 7.5 15 Degree Mini Linear Stepping Motor 2
