12V DC Metal Gear Motor Pm Motor For Biomedical Analyzer , Long Life Time

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number PM35L-048-376
Minimum Order Quantity 1Unit
Price $4.5~10/unit
Packaging Details Standard export package, or can be customized
Delivery Time 10~30 days after the sample is paid
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 10000 PCS 45days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Construction Permanent Magnet Certification ROHS
Voltage(v) 12V DC Reduction Ratio Customizable1:4.5~ 1:120
Directions CW/CCW Step Angle 7.5 Degree
High Light

micro planetary gear motor

,

worm gear stepper motor

,

12V DC Metal Gear Motor

Leave a Message
Product Description

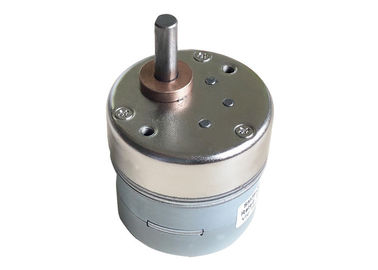

Chinese Manufacturer 35mm Geared Stepper Motor 12v DC Metal Gear Motor Pm Motor For Biomedical Analyzer

PM35L-048-376 is the use of diameter 35MM micro stepper motor and37*14 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
 can be used in many requirements
Precise control of the rotating position of the field.
1:4.5 1:6.3 1:17.5 1:30 1:75 and so on, the customer can according to different use torque speed requirements to match the speed ratio, at the same time
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

12V DC Metal Gear Motor Pm Motor For Biomedical Analyzer , Long Life Time 0

Mechanical Dimension:MM

12V DC Metal Gear Motor Pm Motor For Biomedical Analyzer , Long Life Time 1







Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

PRODUCT NAME 35mm geared stepper motor
MODEL PM35-048-376
RESISTENCE 30Ω±7%
NO.OF PHASES 2 PHASES
STEP ANGLE 7.5°/STEP
CURRENT PER PHASE 400MA/PHASE(400PPS)
PULL-OUT THRUAT MORE THAN 9000g .cmAT 400PPS
INSULATION CLASS CLASS E
INSULATION STRENGTH 600
INSULATION RESISTENCE 500V DC 100MΩMIN
OPERATING TEMPERATURE RANGE -10~+55 ℃
OEM & ODM SERVICE

AVAILABLE



Product Detail Presentation



12V DC Metal Gear Motor Pm Motor For Biomedical Analyzer , Long Life Time 2

Torque Curve For Reference



Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

12V DC Metal Gear Motor Pm Motor For Biomedical Analyzer , Long Life Time 3

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

12V DC Metal Gear Motor Pm Motor For Biomedical Analyzer , Long Life Time 4

  • Round Type :  DIA3mm. 4mm. 5mm

  • D-cut Type:     DIA3-D2.5 DIA4-D3 etc

  • Screw Type:    M3 M4 M5 Serial

  • Trape Type

  • I-cut Type:       DIA3-I2   DIA4-I3

  • Other Type:      Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.
