NEMA11 2 Phase Position Control Stepper Motor For 3D Printer 28BYG201

Name: NEMA11 2 Phase Position Control Stepper Motor For 3D Printer 28BYG201
Brand: VIC-TECH
SKU: 28BYG201
Price: 8.00 USD
Availability: InStock
Rating: 4.8 (122 reviews)

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	VIC-TECH
Certification:	RoHS
Model Number:	28BYG201

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	$8.00 - $15.00 / Units
Packaging Details:	Standard export package, or can be customized
Delivery Time:	15-30 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100000Units per month

Contact Now

Detailed Product Description

Step Angle(degrees):	1.8°	Holding Torque:	1400g.cm
Phase:	2	Type:	Hybrid
Weight:	120g	Current / Phase:	0.5A
Voltage:	10V
High Light:	nema 11 stepper motor , 2 phase hybrid stepper motor

NEMA11 stepper motor Position Control Stepper Motor 2 phase hybrid stepper motor for 3D Printer Stepper Motor

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.

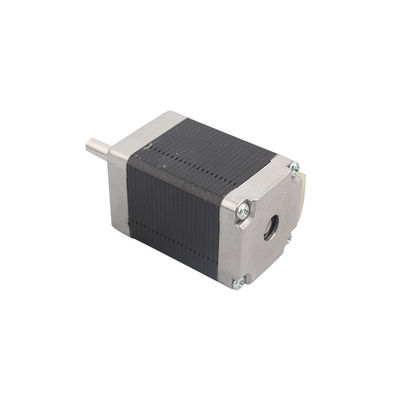

NEMA11 2 Phase Position Control Stepper Motor For 3D Printer 28BYG201 0

Mechanical Dimension:MM

NEMA11 2 Phase Position Control Stepper Motor For 3D Printer 28BYG201 1

Typical Applications

3D Printer
Monitoring Equipment
Medical Machinery
Vending Machine
Engineering Vehicle
CNC Engraving Machine
ATM Machine

Specifications

Standard Operating Conditions

No.	ITEM	SPEC.	REMARKS
1	Voltage	3.75 VDC
2	Source Voltage	24 VDC	Indicates the voltage that the power supplier applys to the driver circuit. It is same as the rated voltage when motor is drived on a constant voltage model.
3	Phase	2 Phase
4	Rated Current	0.67 A /Phase	Peak value when microstep
5	Exciting mode	Bipolar	Refer to drive circuit
6	Step angle	1.8 deg	±7％
7	Rotation	CW/CCW

Electrical Characteristics

No.	ITEM	SPEC.	TEST CONDITION	REMARKS
1	Resistance	5.6±10％Ω	At 20℃	Each phase
2	Inductance	4±20％mH	At 1Hz,0.3 Vrms	Each phase(Ref.)
3	Holding Torque	≥710 g.cm 710 g.cm min
4	Detent Torque	≤150 g.cm 150 g.cm max
5	Step Angle Accuary	±5％	Constant Current Driver/ 12V/Two Phase on/Rated current/Speed:1pps
6	Slew Rate with no load	——	Source Voltage 24V/ Rated current//Half step
7	Pull-in rate with no load	——	Source Voltage 24V/ Rated current//Half step
8	Dielectric Strength	≤1 mA 1 mA max.	600VAC,1 second
9	Insulation Resistance	≥100 MΩ 100 MΩmin.	500VDC	Between coil and endbells
10	Insulation class	Coil class B
11	Temperature rise	less than 80℃

Mechanical Characteristics

No.	ITEM	SPEC.
1	Outline Dimentions	See in the technical drawing
2	Rotor Inertia	9 g.cm²
3	Weight	About 0.11 kg
4	End play of the shaft	0.08mm@500g.f
5	Radial play of the shaft	0.02mm@500g.f

Environmental Performance

No.	ITEM		OPERATING
1	Operation environment conditions	Ambient temperature	-20℃～+50℃
		Ambient Humidity	15～85%RH No condensation
2	Storage environment conditions	Ambient temperature	-30℃～+70℃
		Ambient Humidity	15～85%RH No condensation

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
