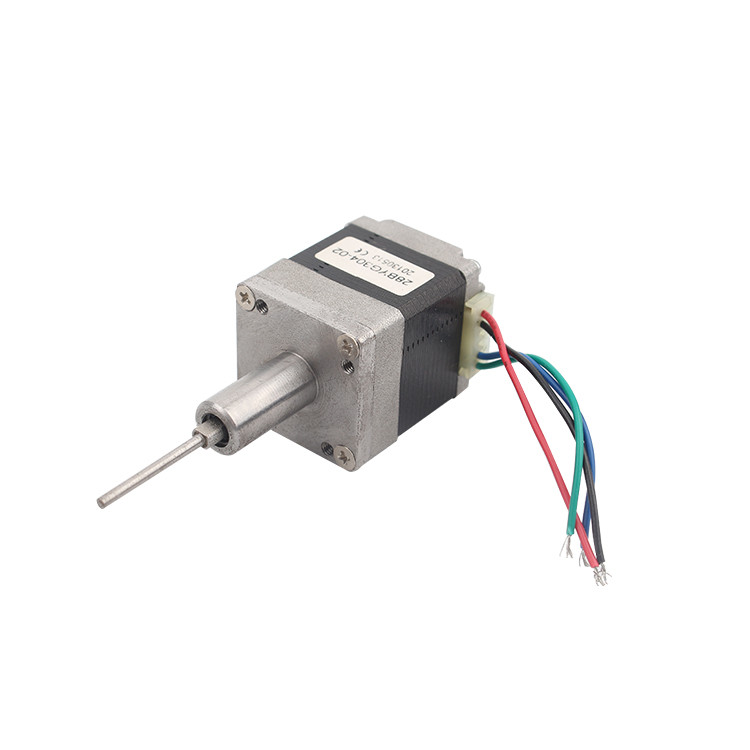

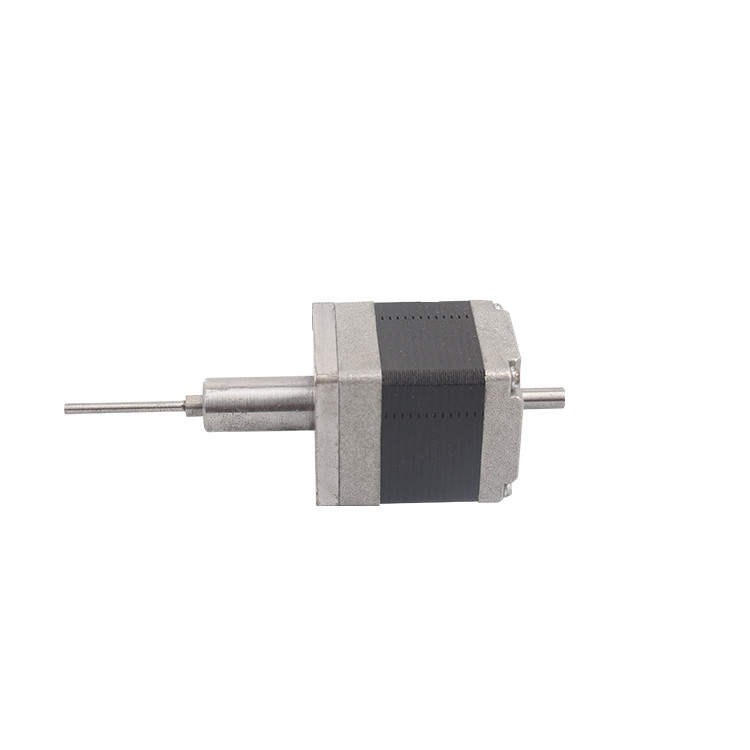

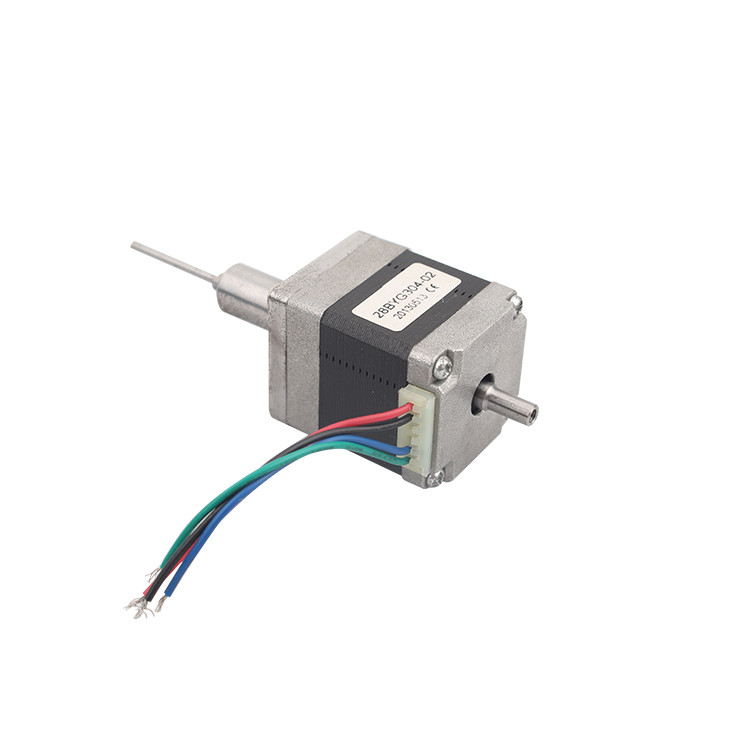

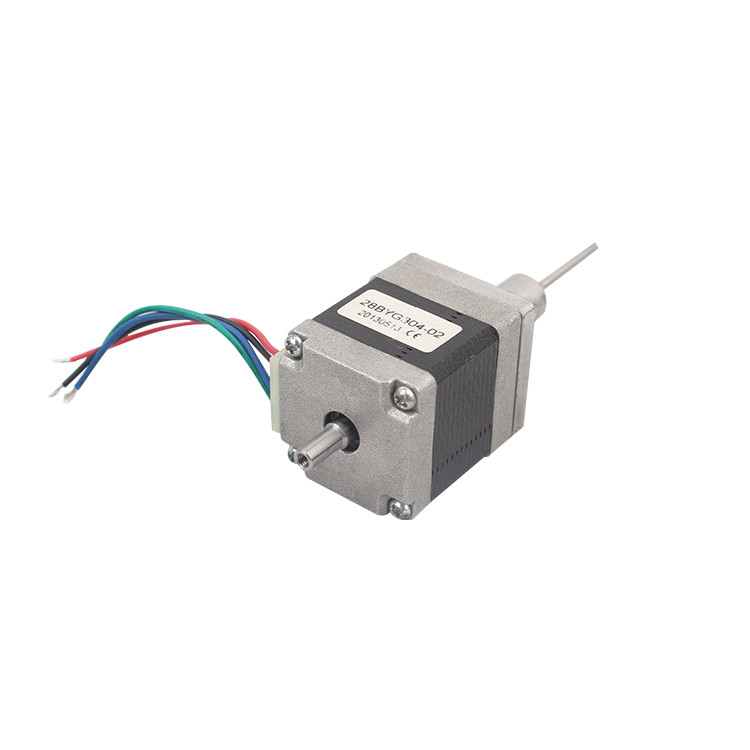

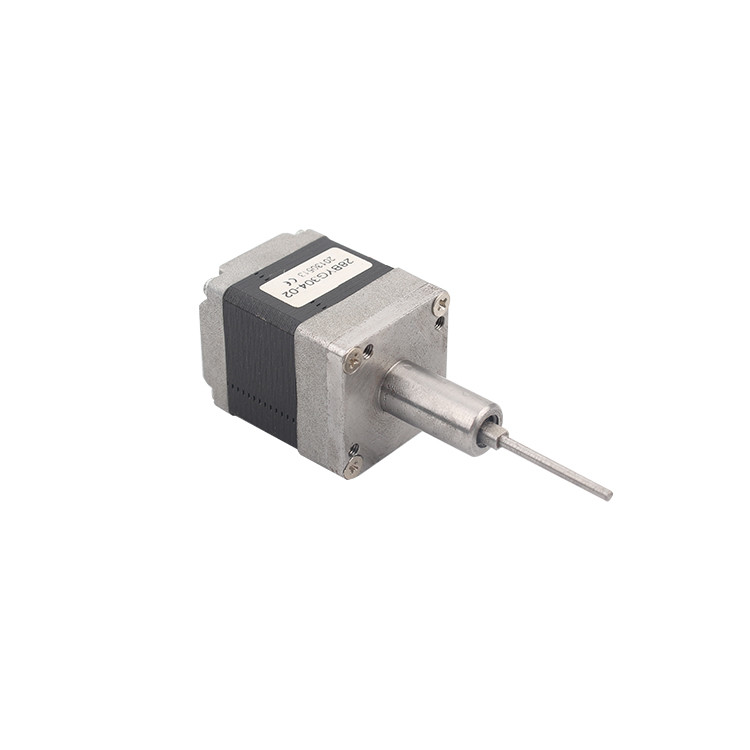

Lightweight Mini Hybrid Stepper Motor For Monitoring Equipment 28BYG304

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number 28BYG304
Minimum Order Quantity 1 Unit
Price $8.00 - $15.00 / Units
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100000Units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 1.8° Holding Torque 1400g.cm
Phase 2 Type Hybrid
Weight 120g Current / Phase 0.5A
Voltage 10V
Highlight

hybrid linear stepper motor

,

small dc electric motors

Leave a Message
Product Description

28BYG304 NEMA11 stepper motor 1.8 degree per step 2 phase hybrid stepper motor for Engraving Machine Medical Equipment

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.

Lightweight Mini Hybrid Stepper Motor For Monitoring Equipment 28BYG304 0

Mechanical Dimension:MM



Lightweight Mini Hybrid Stepper Motor For Monitoring Equipment 28BYG304 1

Typical Applications

  • 3D Printer
  • Monitoring Equipment
  • Medical Machinery
  • Vending Machine
  • Engineering Vehicle
  • CNC Engraving Machine
  • ATM Machine

Specifications





Standard Operating Conditions

No. ITEM SPEC. REMARKS
1 Voltage 3.75 VDC
2 Source Voltage 24 VDC

Indicates the voltage that the power supplier applys to the driver circuit.

It is same as the rated voltage when motor is drived on a constant voltage model.

3 Phase 2 Phase
4 Rated Current 0.67 A /Phase Peak value when microstep
5 Exciting mode Bipolar Refer to drive circuit
6 Step angle 1.8 deg ±7%
7 Rotation CW/CCW



Electrical Characteristics



No. ITEM SPEC. TEST CONDITION REMARKS
1 Resistance 5.6±10%Ω At 20℃ Each phase
2 Inductance 4±20%mH At 1Hz,0.3 Vrms Each phase(Ref.)
3 Holding Torque

≥710 g.cm

710 g.cm min


4 Detent Torque

≤150 g.cm

150 g.cm max


5 Step Angle Accuary ±5%

Constant Current Driver/

12V/Two Phase on/Rated current/Speed:1pps


6 Slew Rate with no load ——

Source Voltage 24V/

Rated current//Half step


7 Pull-in rate with no load ——

Source Voltage 24V/

Rated current//Half step


8 Dielectric Strength

≤1 mA

1 mA max.

600VAC,1 second
9 Insulation Resistance

≥100 MΩ

100 MΩmin.

500VDC Between coil and endbells
10 Insulation class Coil class B
11 Temperature rise less than 80℃



Mechanical Characteristics



No. ITEM SPEC.
1 Outline Dimentions See in the technical drawing
2 Rotor Inertia 9 g.cm2
3 Weight About 0.11 kg
4 End play of the shaft 0.08mm@500g.f
5 Radial play of the shaft 0.02mm@500g.f



Environmental Performance



No. ITEM OPERATING
1 Operation environment conditions Ambient temperature -20℃~+50℃
    Ambient Humidity 15~85%RH No condensation
2 Storage environment conditions Ambient temperature -30℃~+70℃
    Ambient Humidity 15~85%RH No condensation





The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.







Torque Curve For Reference



Product Detail Presentation

 Lightweight Mini Hybrid Stepper Motor For Monitoring Equipment 28BYG304 2Lightweight Mini Hybrid Stepper Motor For Monitoring Equipment 28BYG304 3
