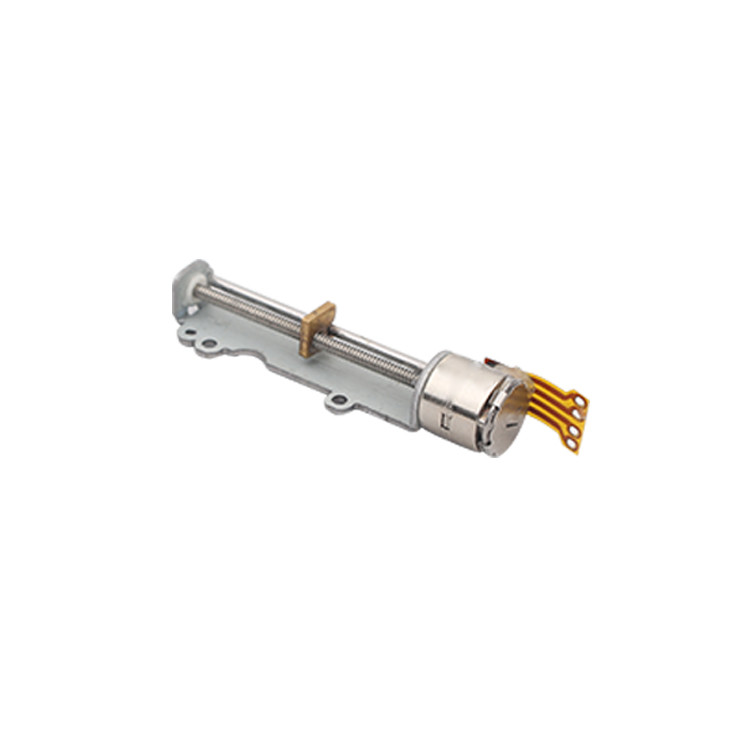

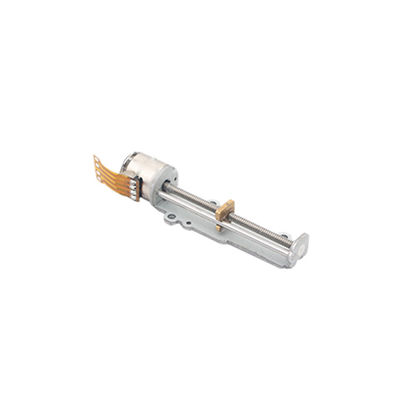

Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065

  • Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065
  • Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065
  • Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065
  • Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065
  • Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1065
Minimum Order Quantity 1Unit
Price $3~$8/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 5 V Resistance 19 Ω±10%
Weight 5.5 G Rotation CW/CCW
Type Permanent Magnet Holding Torque 4.0 Gf.cm~5.0 Gf.cm
High Light

micro linear stepper motor

,

high torque stepper motor
Leave a Message
Product Description

Micro stepper motor 10mm 2 phase linear stepper motor for precision medical devices

VSM1065 is a special precious micro stepper motor (or say linear stepper motor)with a bracket and push,the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. forthis type motor, the basic slide is a golden color unit as the photo show, also the slide can customization in any other material or shape.

Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 0



Mechanical Dimension:MM

Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 1

Technical Features

VSM1065 is a special precious micro stepper motor (or say linear stepper motor)with a bracket and push,

the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. forthis type motor, the basic slide is a golden color unit as the photo show, also the slide can customization in any other material or shape.

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10 mm micro stepper motor
Model VSM1065
Rated Voltage 5.0 V
Current Per Phase  250 mA /phase
Coil Resistance 19 Ω±7%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 4.0 gf.cm At 480 pps
Pull-Out Torque 5.8  gf.cm At 480 pps
Max. Response Frequency 1100 pps,At 5.0 V DC
Max. Starting Frequency 1800 pps,At 5.0 V DC
Insulation Class Class E for Coils
Insulation Strength 300 V AC for One Second
Insulation Resistance 50 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 5.5 g(Ref.)
OEM & ODM SERVICE AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 2

Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 3

Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 4

Product Detail Presentation

Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 5Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 6Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 7Precision Medical Device Micro Stepper Motor , 10mm Stepper Motor VSM1065 8
