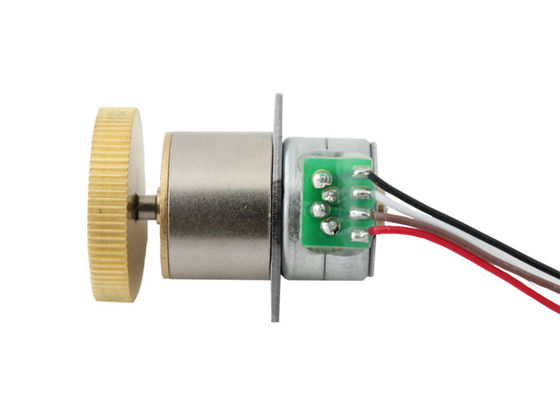

Precision Permanent Magnet Geared Stepper Motor For Blood Analyzer SM151613
|Place of Origin||China|
|Minimum Order Quantity||1Unit|
|Packaging Details||Standard export package, or can be customized|
|Delivery Time||15-30 work days|
|Payment Terms||MoneyGram, Western Union,Credit Card,T/T, L/C|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Type||Gear Motor||Construction||Permanent Magnet|
micro planetary gear motor,
high torque geared dc motor,
Blood Analyzer Geared Stepper Motor
SM151613 15mm geared stepper motor permanent magnet stepper motor micro gear stepper motor with metal gearbox
SM151613GR63 is the use of diameter 15mm micro stepper motor and 10*12 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
All parts of the product are machined on the precision equipment, and the advanced and reliable assembly process is adopted, so that the product has the characteristics of high transmission efficiency, low noise and high reliability.
Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements.
Precise control of the rotating position of the field.
1:5 1:3 1:20 1:10 1:380 1:30 1:50 1:63 1:150 1:298 and so on, the customer can according to different use torque speed requirements to match the speed ratio, at the same time.
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
|Product Name||15mm permanent magnet stepper motor|
|Rated Voltage||5.0 V|
|Coil Resistance||10 Ω ± 10%|
|No. Of phase||2 Phases|
|Step Angle||18 degree|
|Hold Torque||300 gf.cm|
|Insulation Class||Class E for Coils|
|Insulation Strength||600 V AC for One Second|
|Insulation Resistance||500 MΩ (DC 100 V)|
|Operating Temperature Range||-20~+70 ℃|
|Weight||15 g (Ref.)|
|OEM & ODM SERVICE||AVAILABLE|
|Rated Voltage||5.0 V DC||5.0 V DC||3.0 V DC|
|Phase||2 Phase||2 Phase||2 Phase|
|Exciting Method||2-2 Phase exciting/2-2||2-2 Phase exciting/2-2||2-2 Phase exciting/2-2|
|Max. Starting Pulse Rate||800PPS Min||1300PPS Min||700PPS Min|
|Max. Slewing Pulse Rate||900PPS Min||1800PPS Min||900PPS Min|
|Holding Torque||35gf-cm Min.||35gf-cm Min.||30gf-cm Min.|
|Dielectric Strength||3mA Max.||3mA Max.||3mA Max.|
|Insulance Resistance||100MΩ (Min.)||100MΩ (Min.)||100MΩ (Min.)|
|Rotor Inertia||0.05gf-cm2 (Ref)||0.05gf-cm2 (Ref)||0.05gf-cm2 (Ref)|
|Insulation Class||Class F||Class F||Class F|
|Operation Conditions||-10℃～70 , ORDINARY HUMIDITY/ ℃ ,
15～80%RH(NO CONDENSATION OF MOISTURE
|Storage Conditions||40℃～70 , ORDINARY HUMIDITY/ ℃
10～90%RH(NO CONDENSATION OF MOISTURE
|With Gear Box (Typical Gear Ratio)|
|Out shaft speed (rpm)||Out Torque (g.cm)|
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
