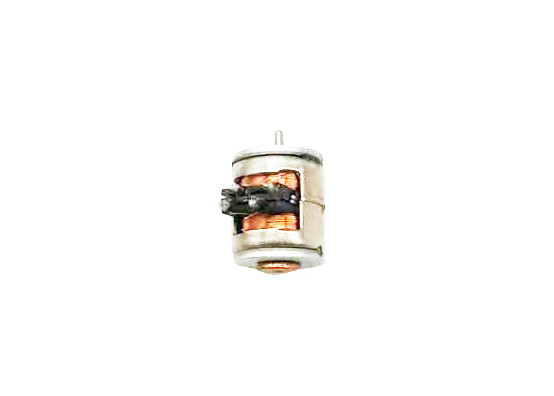

Durable Micro Stepper Motor 2 Phase Pm Stepper Motor For 3.3V DC Motor Optical Instruments Camera Lenses VSM0620
Place of Origin | Jiangsu, China (Mainland) |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS |
Model Number | VSM0620 |
Minimum Order Quantity | 1Unit |
Price | $2~$5/Unit |
Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
Delivery Time | 15-30 work days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStep Angle(degrees) | 18 Degree | Phase | 2 |
---|---|---|---|
Voltage | 3.3V | Current / Phase | 280mA/Phase |
Resistance | 12Ω±10% | Weight | 1.58g |
Rotation | CW/CCW | Type | Permanent Magnet |
Highlight | micro planetary gear motor,high torque geared dc motor,Durable Micro Stepper Motor |
micro stepper motor 2 phase pm stepper motor for optical instruments camera lenses
VSM0620 micro stepper motor is a precision micro stepping motor body outer diameter 6MM, body length 7MM, shaft outer diameter 1MM, the shaft length can be appropriately changed according to the needs, and can be equipped with gears, pulleys, worms, screw rods, etc. Output device.
The motor has a basic step angle of 18 degrees and the motor runs 20 steps per week.
Because of its small size, high precision and easy control, this micro stepping motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.
Mechanical Dimension:MM
Technical Features
The motor input part is shown as four needles, but it can be used in various forms such as PCB, FPC, and connecting line according to customer requirements.
The size and shape of the mounting plate can be changed according to customer requirements.
At the same time, we can match the corresponding drive system to meet the needs of customers!
Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers! Customer needs is our efforts, please feel free to contact!
Typical Applications
-
Intelligent Security Products
-
Camera Lenses
-
Door Locks
-
Wearable device
Specifications
Product Name | 6mm micro stepper motor | |||
Model | VSM0620 | |||
Rated Voltage | 3.3V | |||
Current Per Phase | 150mA /phase | |||
Coil Resistance | 20Ω±7% | |||
No. Of phase | 2 Phases | |||
Step Angle | 18 degree | |||
Excitation Method | 2 Phase Excitation | |||
Drive Mode | Bipolar Drive | |||
Pull-In Torque | More Than 0.7 gf.cm At 800 pps | |||
Pull-Out Torque | More Than 0.9 gf.cm At 800 pps | |||
Noise | 45 dB(Max.) | |||
Max. Response Frequency | More Than 1300 pps,No Load | |||
Max. Starting Frequency | More Than 2000 pps,No Load | |||
Insulation Class | Class E for Coils | |||
Insulation Strength | 100 V AC for One Second | |||
Insulation Resistance | 10 MΩ (DC 100 V) | |||
Operating Temperature Range | -10~+60 ℃ | |||
Weight | 1.58g(Ref.) | |||
OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.

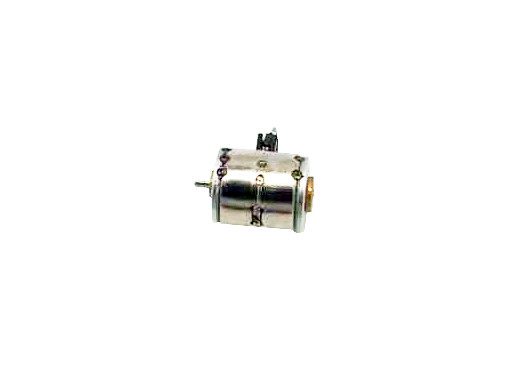

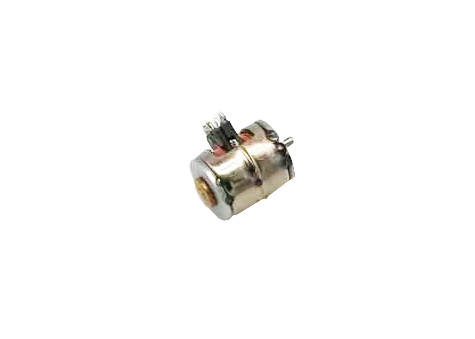

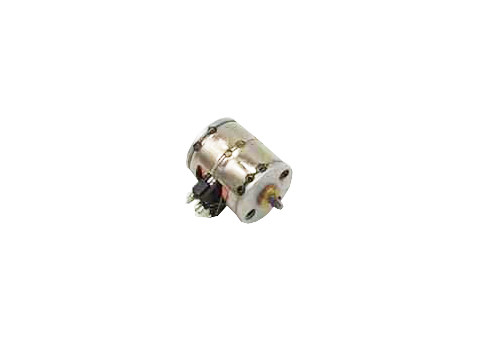

Product Detail Presentation
