VSM08149 55 Ω±10% Resistance Micro Stepper Motor For Precision Medical Machine

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM08149
Minimum Order Quantity 1Unit
Price $3~$7/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 5.0 V Resistance 55 Ω±10%
Weight 5.5 G Rotation CW/CCW
Type Permanent Magnet Holding Torque 1.0 Gf.cm~1.2 Gf.cm
High Light

micro planetary gear motor

,

high torque geared dc motor

,

Precision Medical Machine Micro Stepper Motor

Leave a Message
Product Description

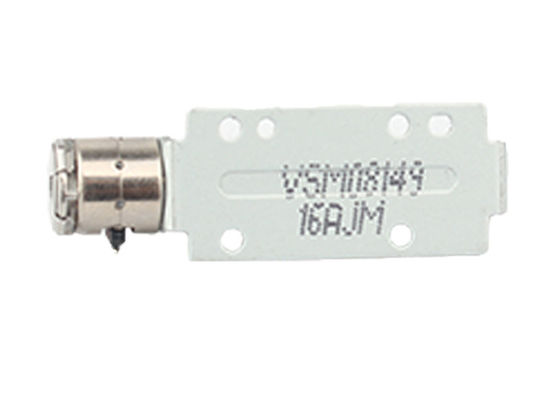

VSM08149 8mm micro stepper motor 2 phase pm stepper motor for precision medical devices

VSM08149 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

VSM08149 55 Ω±10% Resistance Micro Stepper Motor For Precision Medical Machine 0



Mechanical Dimension:MM

VSM08149 55 Ω±10% Resistance Micro Stepper Motor For Precision Medical Machine 1

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 8 mm micro stepper motor
Model VSM08149
Rated Voltage 5.0 V
Current Per Phase  90 mA /phase
Coil Resistance 55 Ω±7%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 1.0 gf.cm At 900 pps
Pull-Out Torque 1.2 gf.cm At 900 pps
Max. Response Frequency 800 pps,
Max. Starting Frequency 2000 pps,
Insulation Class Class E for Coils
Insulation Strength 100 V AC for One Second
Insulation Resistance 1.0 MΩ (DC 100 V)
Operating Temperature Range -10~+60 ℃
Weight 5.5 g(Ref.)
OEM & ODM SERVICE AVAILABLE





Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

VSM08149 55 Ω±10% Resistance Micro Stepper Motor For Precision Medical Machine 2

VSM08149 55 Ω±10% Resistance Micro Stepper Motor For Precision Medical Machine 3



Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

VSM08149 55 Ω±10% Resistance Micro Stepper Motor For Precision Medical Machine 4

Product Detail Presentation



VSM08149 55 Ω±10% Resistance Micro Stepper Motor For Precision Medical Machine 5
