10mm Permanent Magnet Micro Linear Stepper Motor 5v 18° Step Angle SM10

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM10
Minimum Order Quantity 1Unit
Price $4.5~$7/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance 18Ω±10% Phase 2
Type Permanent Magnet Step Angle(degrees) 18°
Voltage 5V (driver IC:L6219) After All Journey ≥9mm
Pull-out Thrust More Than 280g At 500pps Phase Current 0.28A
High Light

micro linear stepper motor

,

electric linear actuator motor

Leave a Message
Product Description

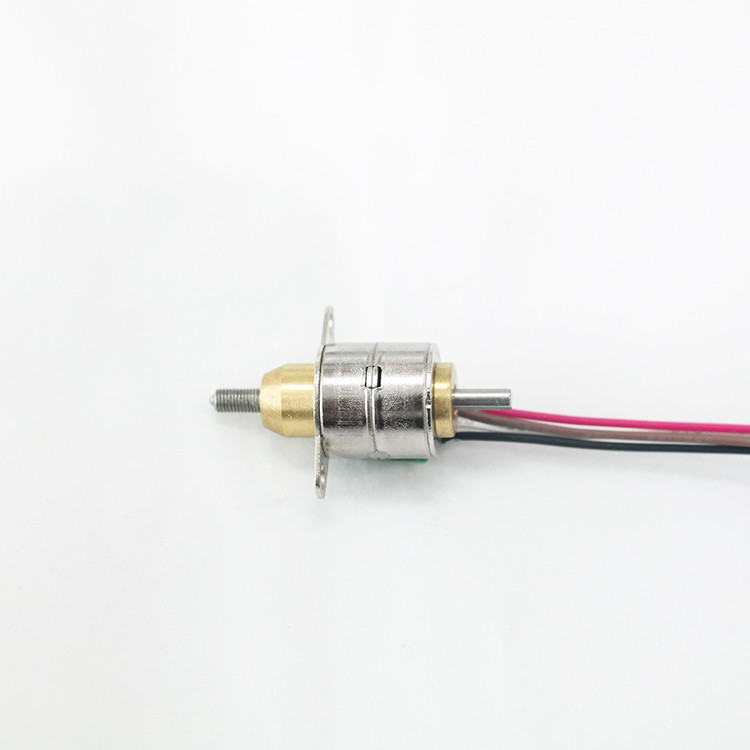

10mm permanent magnet micro linear stepper motor 5v linear actuator motor

SM10 is a special product of the company.Stepper motor whit a lead screw, lead with a anti-rotation bracket. the rotor with a nut, when rotor running CW or CCW,the lead screw will go forword or backword.

motor step angle is 18degree, lead pitch is 1mm.

10mm Permanent Magnet Micro Linear Stepper Motor 5v 18° Step Angle SM10 0





Mechanical Dimension:MM

10mm Permanent Magnet Micro Linear Stepper Motor 5v 18° Step Angle SM10 1

Technical Features

It converts the rotation of the motor into linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, printers, robots and other related fields.
At the same time, the external wiring part can use four (or five and six, also bipolar or unipolar drive) binding posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

SM10 linear stepper motor

Model

SM10

Resistance

18Ω±7%

DRIVE MODE BIPOLAR DRIVE

Pull-OutThrust

More Than 280g at 500pps

After All Journey

≥9mm

Life

1500000 return

Operating Temp Range - 15 ℃ ~ +55 ℃

Insulation Class

Class E for Coils

MAX RESPONSE FREQUENCY MORE THAN---PPS
MAX STARING FREQUENCY MORE THAN 900PPS
INSULATION RESISTANCE 500MΩ DC 500V
lead wrie UL 1571 30AWG

OEM & ODM Srvice

Available



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

10mm Permanent Magnet Micro Linear Stepper Motor 5v 18° Step Angle SM10 210mm Permanent Magnet Micro Linear Stepper Motor 5v 18° Step Angle SM10 3
