3000rpm Speed Micro Stepper Motor 3.3VDC PM stepper motor For Laser Instruments Lightweight

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStep Angle(degrees) | 18 | Phase | 2 |
---|---|---|---|
Voltage | 3.3V | Current / Phase | 0.2A |
Resistance | 15Ω±7% | Weight | 3g |
Speed | 3000rpm | Rotation | CW/CCW |
Type | Permanent Magnet | Holding Torque | 0.0006Nm |
Highlight | micro planetary gear motor,high torque geared dc motor,3000rpm Speed Micro Stepper Motor |

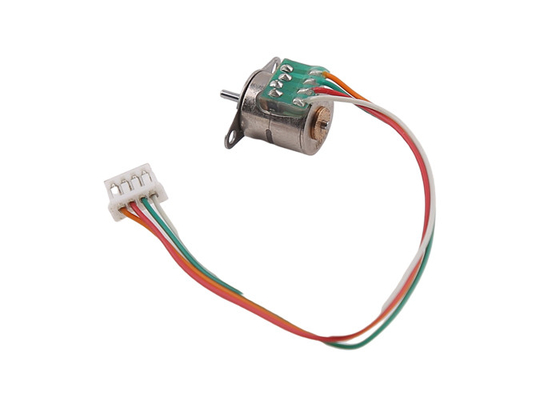

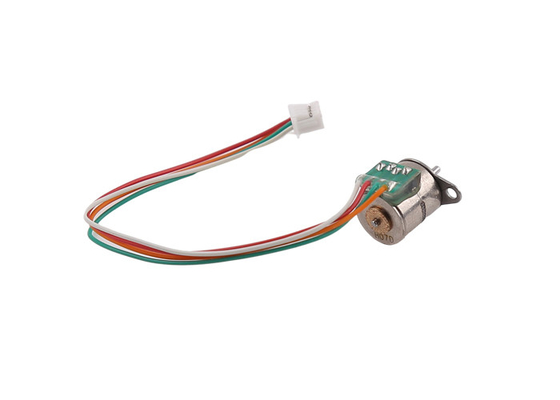

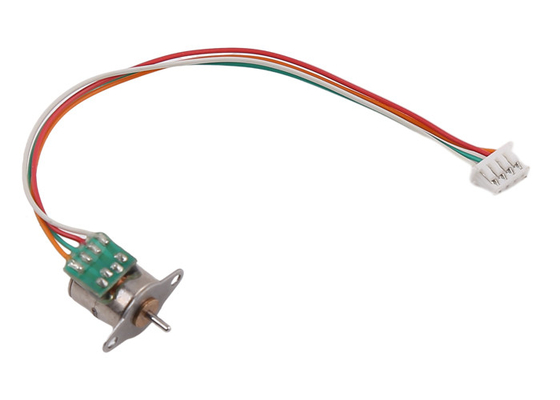

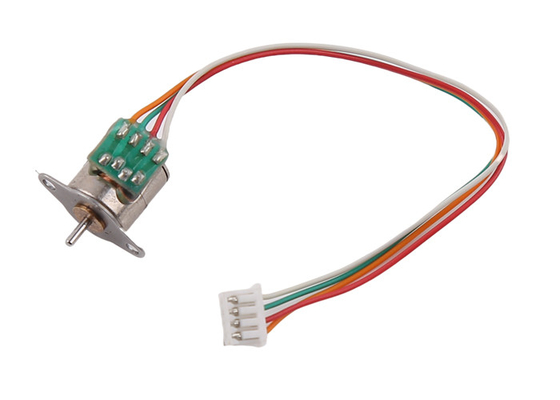

8mm Micro stepper motor 3.3V PM stepper motor for laser instruments
VSM0801 is a precision stepper motor with a diameter of 8mm, a total height of 9.2mm, and a shaft diameter of 1mm. The motor has a step angle of 18 °. The length of the shaft can be changed according to requirements, and can be equipped with gears and corresponding output devices, such as worms and screws, which are widely used in the field of precision instruments such as camara, medical instruments, and laser instruments
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
Mechanical Dimension:MM
Application
Motor’s speed is determined by driving frequency, and it has nothing to do with load (unless it’s losing steps).
Due to high precision speed control of stepper motors, with a driver controlled stepping you can achieve very precise positioning and speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.
For linear stepper motors, they are widely used in:
Medical device
Camera equipment
Valve control system
Test instrument
3D printing
Textile machinery
Industrial control
Air conditioning
CNC machine
and so on
Specifications
PRODUCT NAME | 8 MM MICRO STEPPER MOTOR | |||
MODEL | VSM0801 | |||
MAX. STARTING FREQUENCY | 1200 PPS min. (AT 3.3 V DC) | |||
MAX. SLEWING FREQUENCY | 2500 PPS min. (AT 3.3 V DC) | |||
PULL IN TORQUE | 2.8gf-cm min. (AT 480PPS , 3.3V DC) | |||
PULL OUT TORQUE | 3.8gf-cm min. (AT480 PPS , 3.3V DC) | |||
INSULATION CLASS | CLASS E FOR COILS | |||
INSULATION STRENGTH | 3.0mA (max.) | |||
INSULATION RESISTENCE | 5 MΩ (DC 100 V) | |||
OPERATING TEMPERATURE RANGE | -10~+60 ℃ | |||
OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Customization service
Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.
Torque Curve For Reference
Product Detail Presentation
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
