For camera motor Slider Stepper Motor 8mm 3.3v mini lead screw motor VSM08102

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM08102
Minimum Order Quantity 1
Price $2.25-$7
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Delivery Time 10 days after the sample is paid
Payment Terms Western Union, MoneyGram,Credit Card,VISA,, T/T
Supply Ability 10000 PCS 45days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Permanent Magnet Step Angle 18°
Phase 2 Current / Phase 0.15A
Rated Voltage 3.3V Coil Resistance 20Ω±10%
Holding Torque 1.5gf.cm~2.0gf.cm Size DIA8*L24mm
High Light

full step drive stepper motor

,

lead screw motor

Leave a Message
Product Description

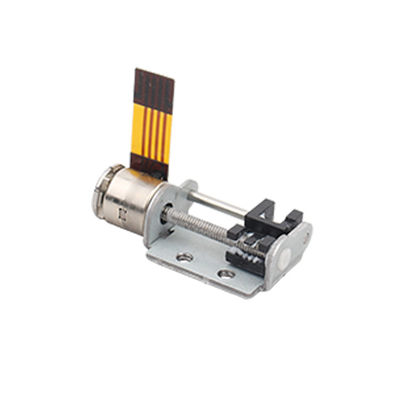

8mm optical instruments stepper motor 3.3v Stepping Motor Micro Stepper Motor of Camera Lens

This is a special precision stepper motor with a bracket and guide( when motor ratate, the guide will moving), the moving speed can controlling by the pulse frequency, the moving distance can controlling by the pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the guide moce 0.02 mm.
Actuator aspects using subdivision drive way to meet.

For camera motor Slider Stepper Motor 8mm 3.3v mini lead screw motor VSM08102 0For camera motor Slider Stepper Motor 8mm 3.3v mini lead screw motor VSM08102 1



Technical Features

This is a special precision stepper motor with a bracket and guide( when motor ratate, the guide will moving), the moving speed can controlling by the pulse frequency, the moving distance can controlling by the pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the guide moce 0.02 mm.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Main Application

1) Camera

2) Optical instruments

3)  Lenses

4)  Precision medical devices

5)  Automatic door locks

Specifications

PRODUCT NAME

8mm lead screw motor

MODEL

VSM08102

MAX. STARTING FREQUENCY

 800PPS min. (AT 3.3 V DC)

MAX. SLEWING FREQUENCY

2000 PPS min. (AT 3.3 V DC)

PULL IN TORQUE

1.5gf-cm min. (AT 500 PPS , 3.3V DC)

PULL OUT TORQUE

2.0gf-cm min. (AT 500 PPS , 3.3V DC)

INSULATION CLASS

CLASS E FOR COILS

INSULATION STRENGTH

100 V AC FOR ONE SECOND

INSULATION RESISTENCE

1 MΩ (DC 100 V)

OPERATING TEMPERATURE RANGE

-10~+70 ℃

ENVIRONMENTAL CONDITIONS USEING SCREW GREASE -40 ~+90 ℃

OEM & ODM SERVICE

AVAILABLE



Torque Curve For Reference

For camera motor Slider Stepper Motor 8mm 3.3v mini lead screw motor VSM08102 2

For camera motor Slider Stepper Motor 8mm 3.3v mini lead screw motor VSM08102 3

Product Detail Presentation



 For camera motor Slider Stepper Motor 8mm 3.3v mini lead screw motor VSM08102 4



Type Of Wire Connect For Reference

Motor input method with Pin type,FPC, PCB, Lead wire etc. These can be customized according to customer needs.

For camera motor Slider Stepper Motor 8mm 3.3v mini lead screw motor VSM08102 5
