18 Degree Angle 2 Phase Weight 10g 3V Micro Stepper Motor , 10mm Camera Stepper Motor

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM10231
Minimum Order Quantity 1Unit
Price $3~$8/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 3.0 V Resistance 15Ω±10%
Weight 10g Rotation CW/CCW
Type Permanent Magnet
High Light

micro planetary gear motor

,

high torque geared dc motor

,

10mm Camera Stepper Motor

Leave a Message
Product Description

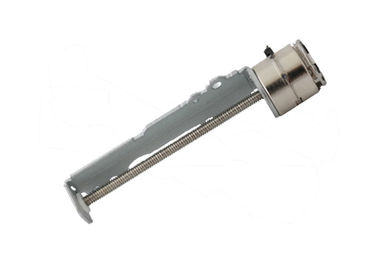

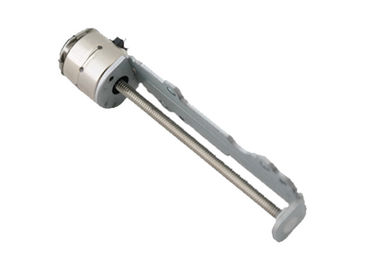

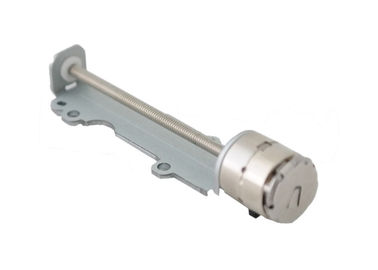

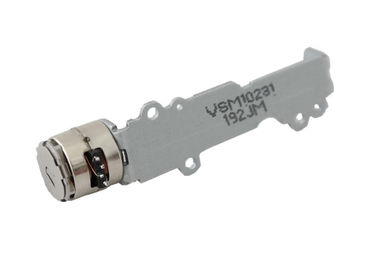

VSM10231 10mm micro stepper motor 2 phase pm stepper motor for Camera Lenses

VSM10231 is a precision micro step motor.Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.

18 Degree Angle 2 Phase Weight 10g 3V Micro Stepper Motor , 10mm Camera Stepper Motor 0



Mechanical Dimension:MM

18 Degree Angle 2 Phase Weight 10g 3V Micro Stepper Motor , 10mm Camera Stepper Motor 1

Technical Features

VSM10231 is a precision micro step motor.Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device

Specifications

Product Name 10mm micro stepper motor
Model VSM10231
Rated Voltage 3.0 V
Current Per Phase  200 mA /phase
Coil Resistance 15 Ω±7%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 3.0 gf.cm At 480 pps
Pull-Out Torque 3.8 gf.cm At 480 pps
Max. Response Frequency 800 pps,At 500 pps ,3 VDC
Max. Starting Frequency 1100 pps,At 500 pps ,3 VDC
Insulation Class Class E for Coils
Insulation Strength 300 V AC for One Second
Insulation Resistance 50 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 10 g(Ref.)
OEM & ODM SERVICE AVAILABLE



Custom Type Reference Example

ERW 5

RWE 4





Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

18 Degree Angle 2 Phase Weight 10g 3V Micro Stepper Motor , 10mm Camera Stepper Motor 4

Lead Time and Packaging Information


Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets



Product Detail Presentation

18 Degree Angle 2 Phase Weight 10g 3V Micro Stepper Motor , 10mm Camera Stepper Motor 5
