6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613

  • 6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613
  • 6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613
  • 6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613
  • 6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613
  • 6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613
  • 6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM0613
Minimum Order Quantity 1Unit
Price $2~$5/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 3.3V Current / Phase 280mA/Phase
Resistance 12Ω±10% Weight 1.58g
Rotation CW/CCW Type Permanent Magnet
High Light

micro planetary gear motor

,

high torque geared dc motor

,

CW Rotation Pm Stepper Motor
Leave a Message
Product Description

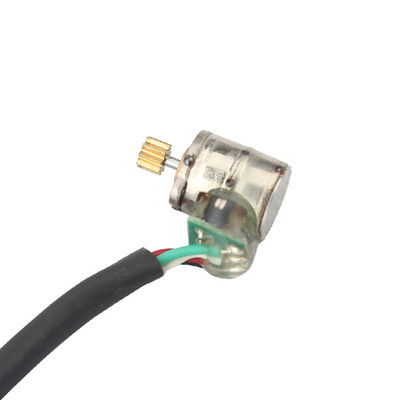

VSM0613 micro stepper motor 3.3V 2 phase pm stepper motor for camera lenses

This product is a precision micro stepping motor body outer diameter 6MM, body length 7MM, shaft outer diameter 1MM, the shaft length can be appropriately changed according to the needs, and can be equipped with gears, pulleys, worms, screw rods, etc. Output device.
The motor has a basic step angle of 18 degrees and the motor runs 20 steps per week.
Because of its small size, high precision and easy control, this micro stepping motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.

6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613 0



Mechanical Dimension:MM

6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613 1

Technical Features

The motor input part is shown as four needles, but it can be used in various forms such as PCB, FPC, and connecting line according to customer requirements.
The size and shape of the mounting plate can be changed according to customer requirements.
At the same time, we can match the corresponding drive system to meet the needs of customers!

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers! Customer needs is our efforts, please feel free to contact!

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 6mm micro stepper motor
Model VSM0613
Rated Voltage 3.3V
Current Per Phase  200mA /phase
Coil Resistance 18Ω±7%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque More Than 0.8gf.cm At 800 pps
Pull-Out Torque More Than 1.0gf.cm At 800 pps
Noise 45dB(Max.)
Max. Response Frequency More Than 1300 pps,No Load
Max. Starting Frequency More Than 2500 pps,No Load
Insulation Class Class E for Coils
Insulation Strength 100V AC for One Second
Insulation Resistance 1MΩ (Min)
Operating Temperature Range -10~+60℃
Weight 1.58g(Ref.)
OEM & ODM SERVICE AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613 2

Product Detail Presentation

6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613 3

6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613 4

6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613 5



Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613 6



Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

6mm Micro Stepper Motor 3.3V 2 Phase Pm Stepper Motor For Camera Lenses Vsm0613 7
