10mm small stepper motor 2 Phase 4 Wire Micro Slider Stepper Motor / mini stepper motor Lead Screw Motor
Place of Origin | Jiangsu, China (Mainland) |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS |
Model Number | VSM10198 |
Minimum Order Quantity | 1 |
Price | $2.2-$7.5 |
Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. |
Delivery Time | 10 days after the sample is paid |
Payment Terms | Western Union, MoneyGram,Credit Card,VISA,, T/T |
Supply Ability | 10000 PCS 45days |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Permanent Magnet | Step Angle | 18° |
---|---|---|---|
Phase | 2 | Current / Phase | 0.2A |
Rated Voltage | 3.3V~12V | Coil Resistance | 10Ω±10% |
Holding Torque | 1.5gf.cm~2.0gf.cm | Stroke | 40mm |
Motor Diameter | 10mm | Lead Screw | M2P0.4 |
Highlight | mini slider screw stepper motor,full step drive stepper motor |

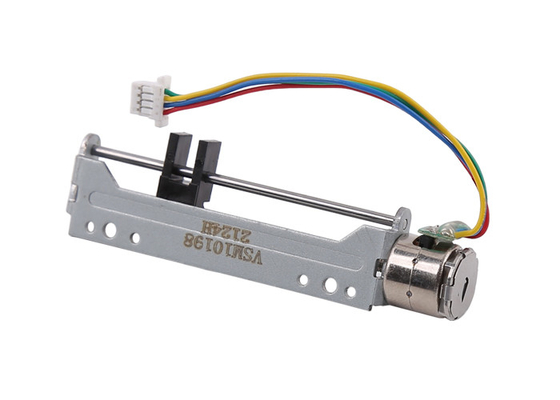

VSM10198 10mm lead screw motor 2 phase 18° micro slider linear stepper motor
VSM10198 is a precision lead screw motor with a diameter of 10 mm, an effective stroke of 40 mm, a lead screw of M2P0.4, and a screw pitch of 0.4 mm for the output shaft. The screw is rotated into thrust through the screw and the screw support screw.
The basic stepping angle of the motor is 18 degrees, and the motor operates 20 steps per week. Therefore, the displacement resolution can reach 0.02mm, achieving accurate control.
The output part of the motor is usually a connecting wire, and FPC, bare needle, etc. can be customized according to customer installation requirements
Technical Features
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
Main Application
1) Camera
2) Optical instruments
3) Lenses
4) Precision medical devices
5) Automatic door locks
Specifications
PRODUCT NAME |
10mm lead screw motor |
MODEL |
VSM10198 |
MAX. STARTING FREQUENCY |
1000 PPS min. (AT 3.3 V DC) |
MAX. SLEWING FREQUENCY |
1200 PPS min. (AT 3.3 V DC) |
PULL IN TORQUE |
3.5gf-cm min. (AT 500 PPS , 3.3V DC) |
PULL OUT TORQUE |
4.5gf-cm min. (AT 500 PPS , 3.3V DC) |
INSULATION CLASS |
CLASS E FOR COILS |
INSULATION STRENGTH |
300 V AC FOR ONE SECOND |
INSULATION RESISTENCE |
50 MΩ (DC 100 V) |
OPERATING TEMPERATURE RANGE |
-20 ~+70 ℃ |
OEM & ODM SERVICE |
AVAILABLE |
Torque Curve For Reference
Product Detail Presentation
