IP30 Micro Linear Stepper Motor 12VDC 53Ω 4 Lines 25BYZ-A022-01D

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 25BYZ-A022-01D
Minimum Order Quantity 1Unit
Price $15~$42/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance 53Ω±10% Phase 2
Type Permanent Magnet Holding Torque 600g.cm
Step Angle(degrees) 18° Voltage 12V
The Mark Thrust 20N The Mark Pull 20N
Min Working Voltage 6V After All Journey ≥22mm
Weight 40g
High Light

micro linear stepper motor

,

high torque stepper motor

Leave a Message
Product Description

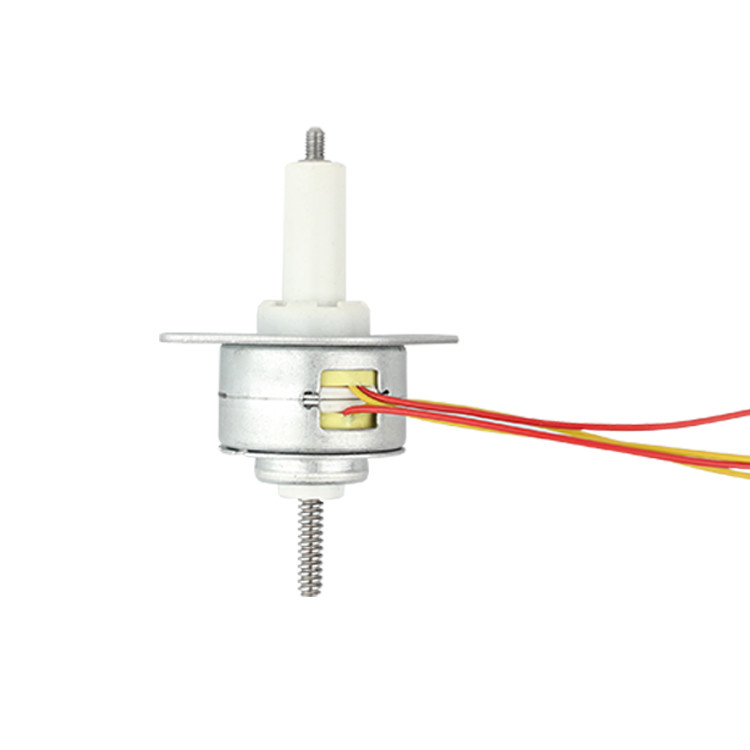

25BYZ-A02-01D micro linear stepper motor 12VDC 53Ω 4 lines high torque stepper motor

25BYZ-A022-01D is a special product of the company.Stepper motor whit a lead screw, lead with a anti-rotation bracket. the rotor with a nut, when rotor running CW or CCW,the lead screw will go forword or backword.

motor step angle is 15degree, lead pitch is 1mm, when motor rotate one step, the lead move 0.0417mm



It converts the rotation of the motor into linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, printers, robots and other related fields.
At the same time, the external wiring part can use four (or five and six, also bipolar or unipolar drive) binding posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.

IP30 Micro Linear Stepper Motor 12VDC 53Ω 4 Lines 25BYZ-A022-01D 0

Mechanical Dimension:MM

IP30 Micro Linear Stepper Motor 12VDC 53Ω 4 Lines 25BYZ-A022-01D 1


Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

 25BYZ-A022-01D linear stepper motor

Model

25BYZ-A022-01D

Resistance

53Ω±7%

Travel Per Step Avail

0.0417mm

The Mark Thrust

20N

Inductance

23.5±20% (mH)

After All Journey

≥22mm

Protection Rate

IP30

Life

1500000 return

Operating Temp Range -10℃~40℃

Insulation Class

class E

Insulation Resistance >100MΩ

lead wrie

UL 1061 AWG26

OEM & ODM Srvice

Available



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

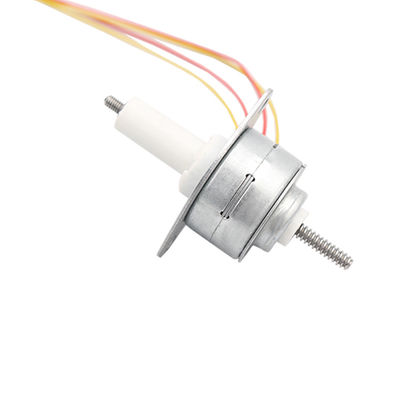

Product Detail Presentation
