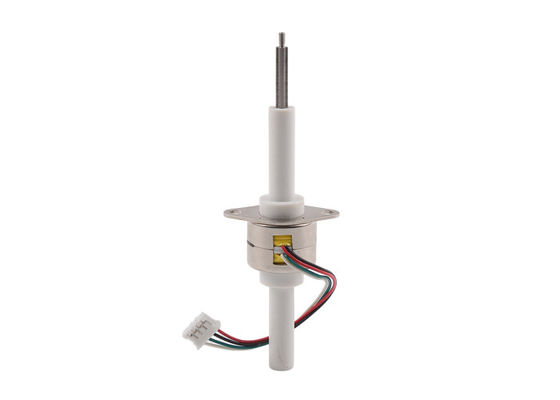

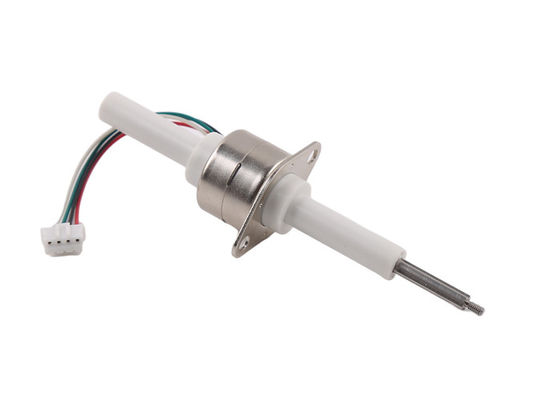

20PM Captive Permanent Magnet Linear Stepper Motor 7.5Degree Step Angle
Place of Origin | China |
---|---|
Brand Name | VIC-TECH |
Certification | RoHS |
Model Number | VSM20-32 captive shaft liner stepper motor |
Minimum Order Quantity | 1Unit |
Price | $6.5~$30/Unit |
Packaging Details | Standard export package, or can be customized |
Delivery Time | 15-30 work days |
Payment Terms | Western Union, T/T, L/C, MoneyGram |
Supply Ability | 1000000 Units/year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPhase | 2 | Type | Permanent Magnet |
---|---|---|---|
Step Angle(degrees) | 7.5° | Voltage | 5V DC |
Thrus Force | 10N~50N | Weight | 84g |
Step Length | 0.0127~0.0508 | Lead Pitch | 0.6096 1.2192 2.4384 |
Highlight | 20PM Linear Stepper Motor,7.5Degree Step Angle Linear Stepper Motor,Permanent Magnet Small Stepping Motors |
7.5 degree Permanent Magnet Linear Stepper Motor 20mm Permanent Magnet stepper motor for 3D Printer Stepper Motor
VSM20-32 captive shaft liner stepper motor,Captive type is a Stepper motor whit a lead screw, when rotor running CW or CCW,the lead screw will go forword or backword. at the same time ,the lead will rotating.
captive shaft: the running mode is up and down running thrust, (the top screw of the motor is used to fix your structure, and can also be customized for other installation methods)
Motor step angle is 7.5 degrees (can also be 15 degrees)
For example:
motor stepper step angle is 7.5 degree, lead pitch is 0.6096mm, when motor stepper rotate one step, the lead moves 0.0127mm for each step of the stepping motor (of course, when you choose different lead pitch and step angle, we can recommend it according to your usage needs
This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.
Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
Mechanical Dimension:MM
Motor thrust force curve:
Specifications
Product Name |
20mm linear stepper motor |
Model |
SM20-32 captive shaft liner stepper motor |
Resistance |
13Ω±7% |
Travel Per Step Avail |
0.0127mm |
The Mark Thrust |
20N |
Inductance |
6.5(mH) |
Current Per Phase | 0.14A |
After All Journey |
32mm |
Life |
1500 000 return |
Operating Temp Range | -10℃~40℃ |
Insulation Class |
B |
Insulation Resistance | >100MΩ |
lead wrie |
UL 1061 AWG26 |
OEM & ODM Srvice |
Available |
Typical Applications
-
Medical Equipment
-
Automatic Control
-
3D Printer
-
Precision Calibration
-
Precision Fluid Measurement
-
Precise Position Movement
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
