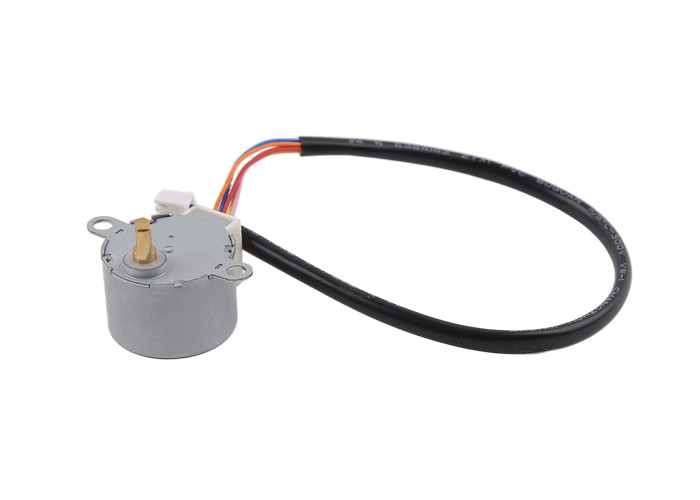

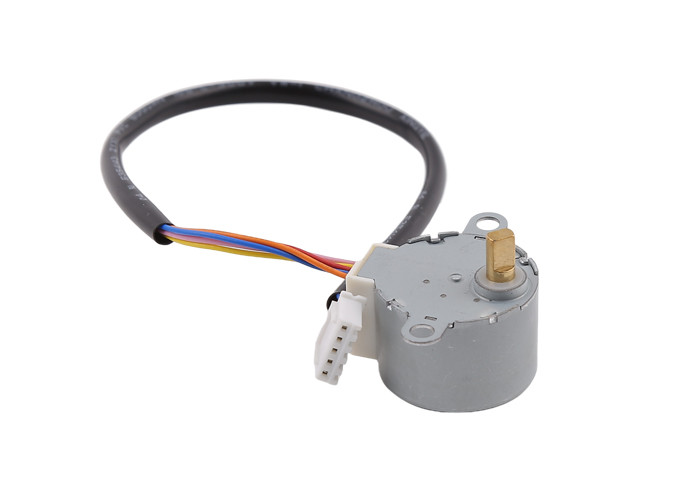

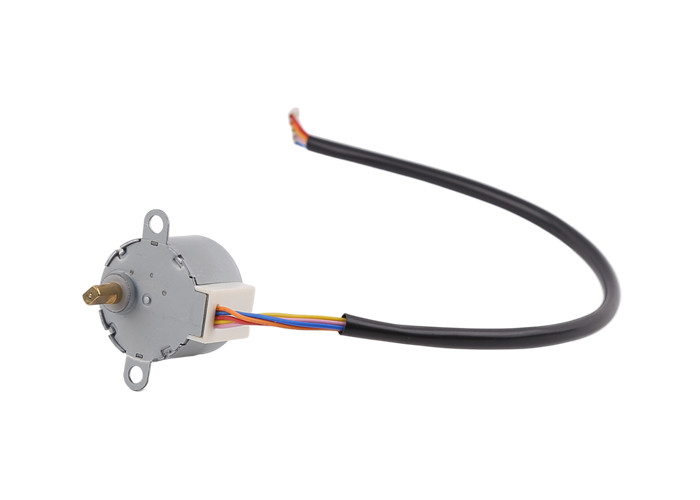

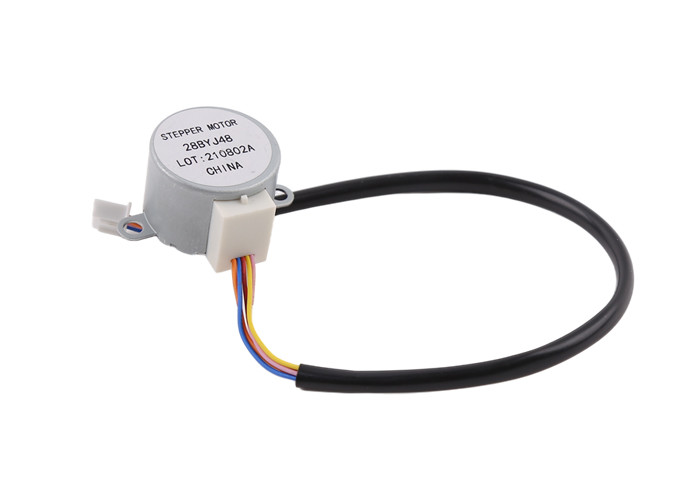

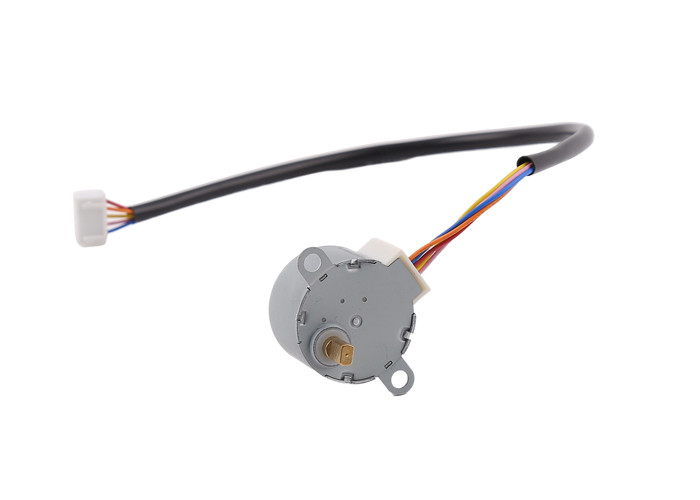

28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox

  • 28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox
  • 28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox
  • 28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox
  • 28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox
  • 28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox
  • 28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 28BYJ48
Minimum Order Quantity 1Unit
Price $1.1~$3.5/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type Gearbox PM Motor Rated Voltage 12V DC
Step Angle 5.625°/64 Gear Ratio 64:1
Driving Mode Unipolar Phase No. 4 Phases
Leave a Message
Product Description

Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox



Description:

28BYJ48 motor is massively produced product.

This motor is mostly used on a series of household appliances such as smart toilet, air conditioning and so on.

Due to big quantity, the price of this product can be lower compared to other products.

The is a gearbox inside the gearbox, and in general gears are POM(plastic), we can also replace them with metal gears, and it would increase its cost by doing so.



Parameters:

Motor type PM stepper motor+gearbox
Model No. 28BYJ48
Rated Voltage 12V DC
Coil resistance 100Ω/phase
Step angle 5.625°/64
Gear ratio 64:1
Pull-in torque ≥49 mNm
Cable number 5 cables (unipolar)



Design drawing:

28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox 0



Product display:

28BYJ48 Permanent Magnet PM Stepper Motor With 64:1 Ratio Gearbox 1



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life



Stepper motor with gearbox:

Gearbox can boost motor’s torque, and reduce motor’s speed

We have different gear ratios for you to choose, also gearbox’s efficiency is related to gear levels.

Output torque=original torque*gear ratio* gearbox efficiency

Output speed= original speed/gear ratio



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
