35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox

  • 35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox
  • 35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox
  • 35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox
  • 35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 35BYJ412P
Minimum Order Quantity 1Unit
Price $1.5~$5/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type PM Stepper Motor With Gearbox Motor Size 35mm Diameter
Rated Voltage 12V DC Gear Ratio 42.5:1
Step Angle 3.75°/42.5 Number Of Phases 4
Leave a Message
Product Description

China 35mm 35BYJ412P 3.75 degrees step angle stepper motor with 42.5:1 gearbox



Description:

35BYJ412P is 35mm diameter permanent magnet motor with gearbox inside.

Step angle of single motor is 3.75°/step.

With a 42.5 gear ratio gearbox on top, so step angle is 3.75°/42.5

This is motor is suitable for 12V DC driving.

Regular PM unipolar stepper motor driver is able to drive this motor.

Please feel free to contact us if you are interested.



Motor Parameters:

Motor type PM stepper motor + gearbox
Model No. 35BYJ412P
Driving mode Unipolar driving (5 cables)
Phase number 4
Gear ratio 42.5:1
Step angle 3.75°/42.5
Coil resistance 25Ω
Rated voltage 12V DC
Weight About 55 g



Design drawing:

35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox 0

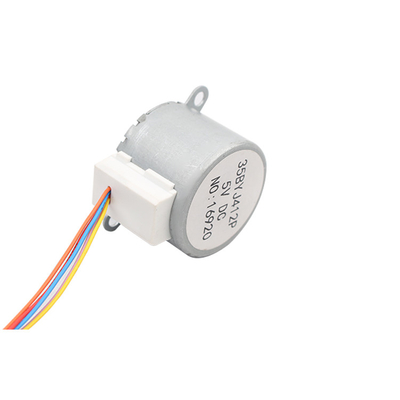

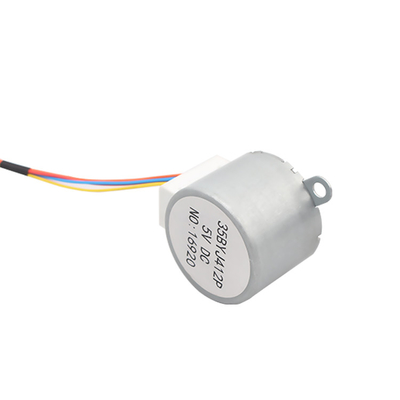

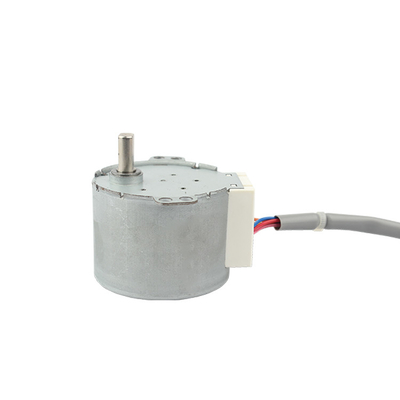

Product display:



35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox 1



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life



Stepper motors are widely used among all industries.

35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox 2



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)

35mm 35BYJ412P Geared Stepper Motor 3.75 Degrees Step Angle With 42.5:1 Gearbox 3



FAQ:

Question 1: Are you a manufacturer or a trader?

We are a manufacturer. We produce motors ourselves.



Question 2: Where is your factory? Can we visit your factory?

Our factory is located in Changzhou city. Feel free to visit us if you want.



Question 3: Do you provide customized samples/ free samples?

We are able to do customization on samples, and it cost extra customization cost.

No, we don’t send free samples.



Question 4: What’s the lead time on samples?

For samples in stock, lead time is within 3 days.

For samples not in stock, lead time is about 15 days.

For customized samples, lead time is about 25 to 30 days.



Question 5: What customization service do you provide?

We have a developing team for over 20 years experience.

We provide customization service on all sorts of motor’s components.

From motor’s slider, lead screw, gearboxes design.

To cable length, connector type, and FPC design.



Question 6: Can we sign a NDA contract if we want to develop a new product?

Yes, we can sign NDA contract and protect your confidentiality.

Feel free to contact us if you have a new project to develop.
