VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS

  • VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS
  • VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS
  • VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS
  • VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS
  • VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS
  • VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1069A
Minimum Order Quantity 1Unit
Price $3~$7/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type Linear Stepper Motor + Slider Motor Size 10mm Diameter
Step Angle 18 Degrees Lead Screw M2
Phase Number 2 Phases Connector Pitch 4*1.25mm
Leave a Message
Product Description

VSM1069A small size 10mm diameter lead screw slider stepper motor with 1.25mm pitch connector



Description:



VSM1069A is linear stepper motor with M2*P0.4 lead screw and POM slider.

Step angle is 18 degrees, it takes 20 steps to rotate exactly one turn.



The thrust of this motor is about 120~150 grams (1.2~1.5N of thrust), with suitable frequency (300~800PPS).

Please make sure slider’s load is smaller than motor’s thrust, otherwise the motor will lose step.



Motor’s connector is Molex 51021-0400 (4*1.25mm pitch connector), this connector is very commonly used. Also we can change it into others, if customers want to adjust connector type.



Please confirm the motor’s size, speed and thrust, before you place order.



Parameters:



Model No. VSM1069A
Motor type PM stepper motor + slider
Motor diameter 10mm
Step angle 18 degrees
Phase No. 2 phases
Connector type Molex 51021-0400 (1.25mm pitch)
Rated voltage 3.3~5V DC
Resistance 15Ω/phase
Stroke About 26mm



Design drawing:

VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS 0





Product display:

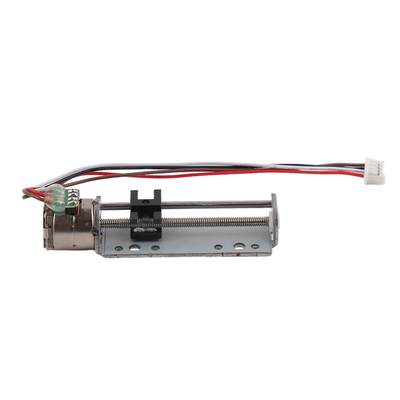

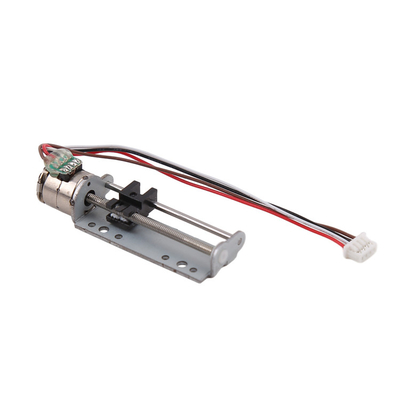

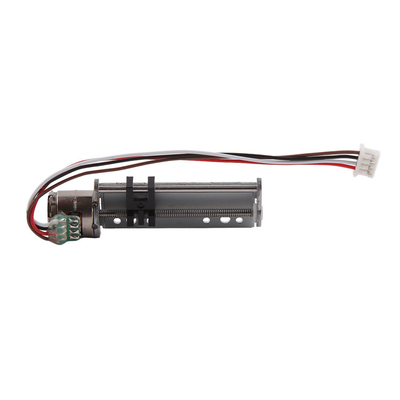

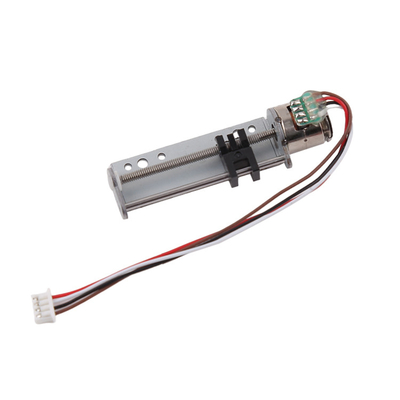

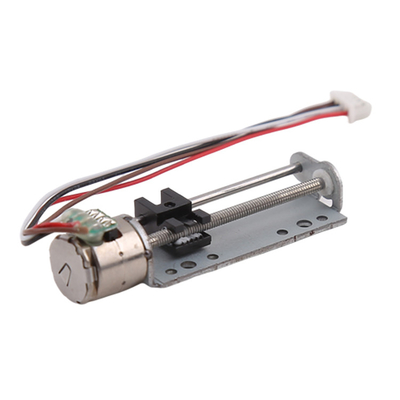

VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS 1



About linear stepper motor with slider:

Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.

Motor’s step angle is generally 18°/step, which means 20 steps for each turn.

When motor rotates one turn, slider moves one lead.

For single start lead screws: pitch =lead.



So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):

Lead screw lead/steps of each rotation



For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.



Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

VSM1069A Easy Driver Stepper Motor 10mm With 1.25mm Pitch Connector RoHS 2



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)







Tags:

lead screw motor

mini slider screw stepper motor

full step drive stepper motor
