SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle

  • SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle
  • SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle
  • SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle
  • SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle
  • SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM15-816G
Minimum Order Quantity 1Unit
Price $3.5~$7/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type PM Stepper Motor+ Gearbox Motor Size 15mm Diameter
Step Angle 18°/ Gear Ratio Resistance 10Ω/31Ω
Gear Ratio 2:1 To 1000:1 Output Shaft D Shaft/ Lead Screw Shaft
Leave a Message
Product Description

SM15-816G 5V lead screw D shaft 18 degree step angle stepper motor with gearbox



Description:

This is a 15 motor attached with a 10*12mm gearbox.

We have different gear ratio for you to choose, depends on customer’s speed and torque requirement.

The bigger gear ratio it has, output speed is slower, and output torque is bigger.



We also have two different types of output shafts:

M3 lead screw shaft and D shaft.

For D shaft, regular size is 3mm diameter with 2.5mm D cut, length is 10mm.

For M3 lead screw shaft, it’s M3*P0.5 standard lead screw.

If you want to customize lead screw length, we can also do that, but it requires extra customization fee.



Motor Parameters:

Motor type Pm stepper motor +gearbox
Motor diameter 10mm
Step angle 18°/gear ratio
Output shaft Lead screw / D shaft
Rated voltage 3.3V ~ 5V DC
Coil resistance 10Ω / 31Ω
Phase number 2 phases/4 wires



Gearbox Parameters:

Gear ratio 2:1 5:1 10:1 15:1 20:1 30:1 36:1 50:1 63:1 67:1 89:1 100:1
Precise ratio 2.002 4.995 9.677 14.754 20.501 29.120 36.122 51.103 63.071 66.801 89.227 99.002
Tooth number 23 20 13 18 15 12 20 20 14 17 14 13
Gear levels 2 2 2 3 3 3 4 4 4 4 4 4
Efficiency 80% 80% 80% 72% 72% 72% 65% 65% 65% 65% 65% 65%







Gear ratio 110:1 150:1 172:1 210:1 250:1 275:1 298:1 380:1 420:1 500:1 600:1 1000:1
Precise ratio 110.407 150.948 171.883 210.591 250.111 274.403 297.924 387.689 421.296 506.155 599.394 986.406
Tooth number 12 18 13 12 13 12 12 12 12 18 16 12
Gear levels 5 5 5 5 5 5 5 5 5 7 7 7
Efficiency 59% 59% 59% 59% 59% 59% 59% 59% 59% 47% 47% 47%



Design drawing:

SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle 0



Product display:

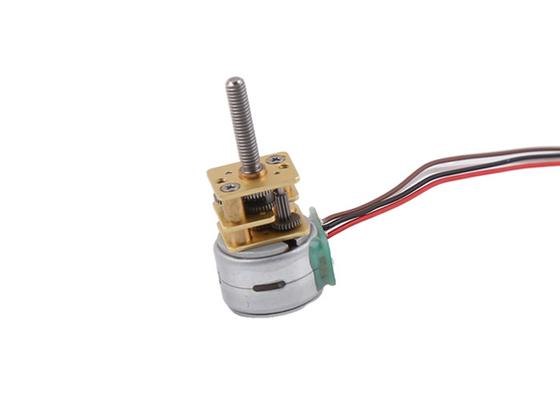

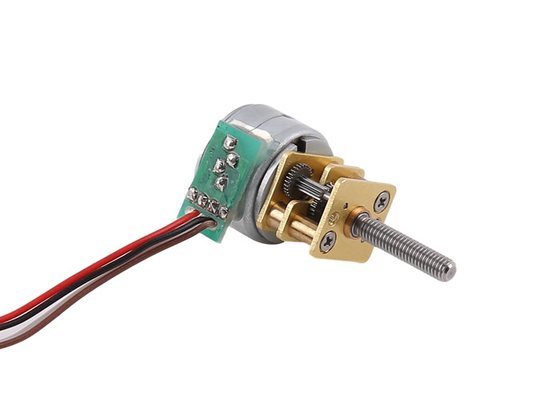

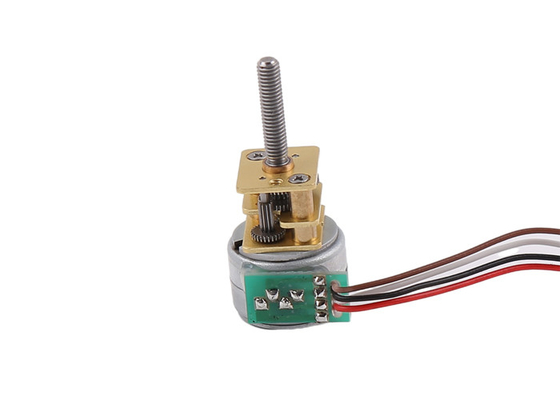

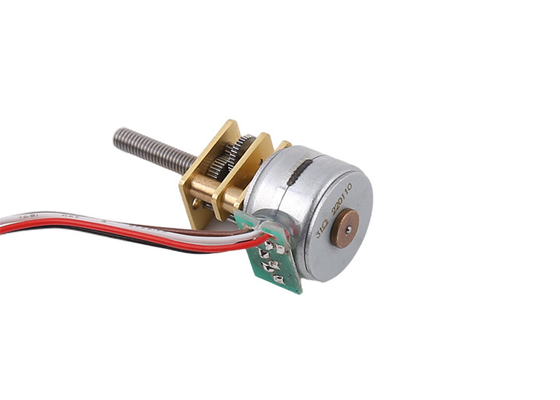

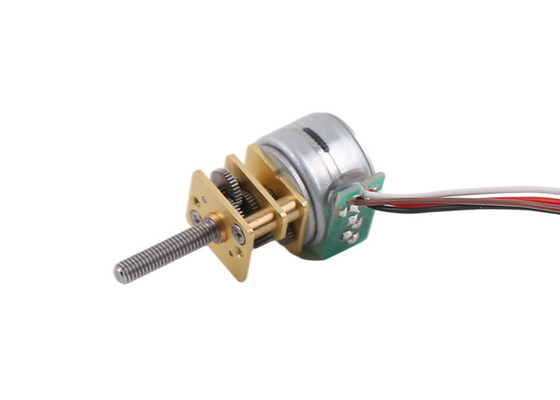

SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle 1



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life



Stepper motors are widely used among all industries.

SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle 2



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)

SM15-816G 5V Dual Shaft Stepper Motor Lead Screw 18 Degree Step Angle 3



FAQ:

Question 1: Are you a manufacturer or a trader?

We are a manufacturer. We produce motors ourselves.



Question 2: Where is your factory? Can we visit your factory?

Our factory is located in Changzhou city. Feel free to visit us if you want.



Question 3: Do you provide customized samples/ free samples?

We are able to do customization on samples, and it cost extra customization cost.

No, we don’t send free samples.



Question 4: What’s the lead time on samples?

For samples in stock, lead time is within 3 days.

For samples not in stock, lead time is about 15 days.

For customized samples, lead time is about 25 to 30 days.



Question 5: What customization service do you provide?

We have a developing team for over 20 years experience.

We provide customization service on all sorts of motor’s components.

From motor’s slider, lead screw, gearboxes design.

To cable length, connector type, and FPC design.



Question 6: Can we sign a NDA contract if we want to develop a new product?

Yes, we can sign NDA contract and protect your confidentiality.

Feel free to contact us if you have a new project to develop.
