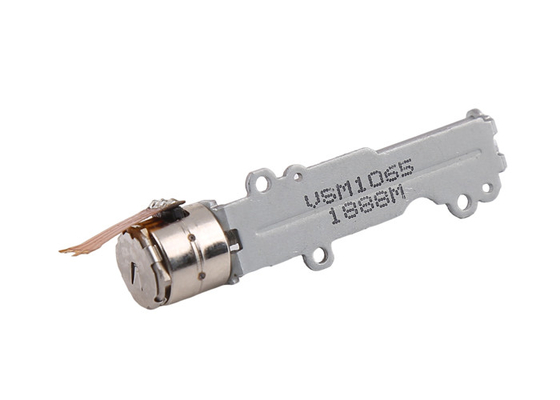

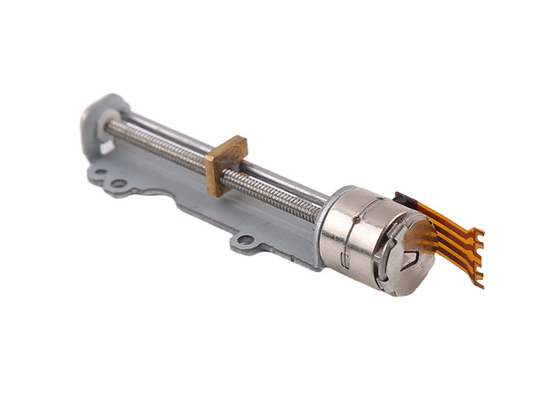

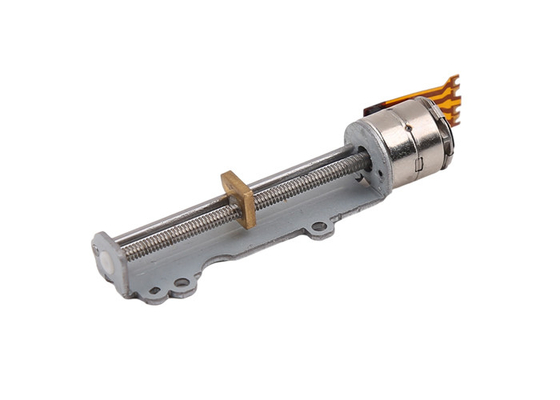

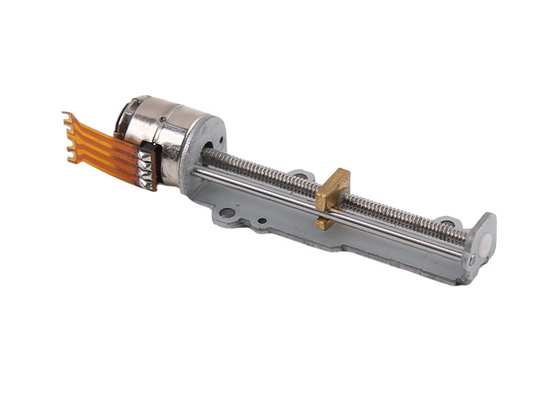

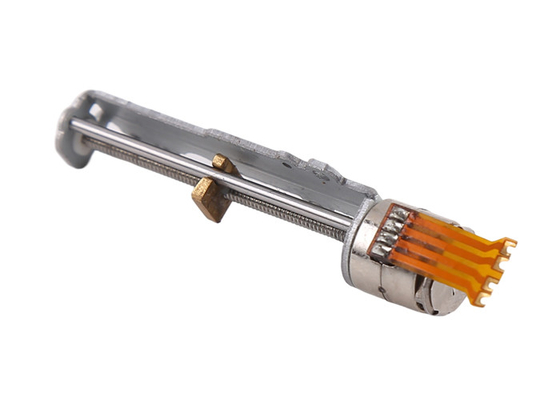

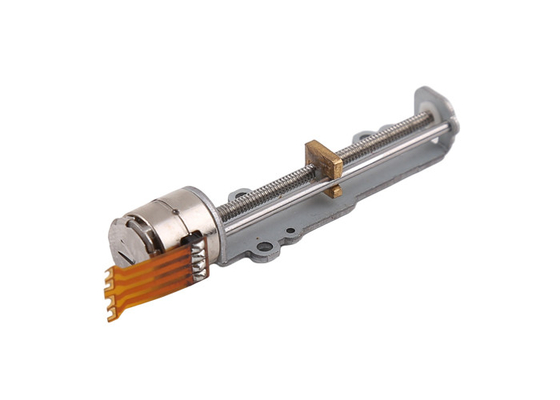

China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor

  • China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor
  • China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor
  • China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor
  • China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor
  • China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor
  • China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor
  • China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1065
Minimum Order Quantity 1Unit
Price $3~$7/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type Stepper Motor+lead Screw+ Slider Motor Diameter 10 Mm
Lead Screw M2*P0.5 Step Angle 18°
Travel Distance About 33 Mm Coil Resistance 19Ω/phase
Leave a Message
Product Description

VSM1065 10mm diameter 18 degrees step angle M2 lead screw stepper motor



Description:



This VSM1065 motor has 10mm diameter, with lead screw + slider.

This lead screw is M2, but lead screw pitch is slightly different.

Regular M2 lead screw has 0.4mm pitch, but for this motor it has 0.5mm pitch.

Its pitch is slightly longer.

It has brass nut fitting with M2*P0.5.



Effective stroke (travel distance) is about 33mm, if customers want shorter/long travel distance, we have other models for option.



Step angle is 18°/step, and it takes 20 steps to rotate one turn.

Step length is 0.025mm/step (step length means linear movement slider makes when the motor takes one step.)



Parameters:



Step angle 18°/step Resistance 19Ω/phase Voltage 5 V DC
Travel per step 0.025mm Lead screw M2*P0.5 Effective stroke 33 mm
Max Starting frequency 1100Hz(Min) Max response frequency 1800Hz(Min) Pull-out thrust

120g Min

(500 PPS)



Design drawing:



China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor 0



Product display:

China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor 1



About linear stepper motor with slider:

Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.

Motor’s step angle is generally 18°/step, which means 20 steps for each turn.

When motor rotates one turn, slider moves one lead.

For single start lead screws: pitch =lead.



So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):

Lead screw lead/steps of each rotation



For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.



Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

China VSM1065 10mm Stepper Motor 18 Degrees Step Angle M2 Lead Screw Stepper Motor 2



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
