Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC

  • Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC
  • Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC
  • Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC
  • Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC
  • Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC
  • Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC
  • Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1069
Minimum Order Quantity 1Unit
Price US$2 ~7
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Size 10mm Micro Stepper Motor Step Angle 18 Degrees
Motor Type Stepper Motor With Lead Screw Movement Type Linear
Coil Resistance 15 Ω ±10% No.of Phase 2 Phase
Leave a Message
Product Description

3.3 V DC Micro Slider Stepper Motor 10mm Small Slider Screw Stepper Motor with FPC



This precision miniature stepper motor, the output shaft has a lead screw with a pitch of 0.4mm, and the lead screw and the lead screw supported by the lead screw rotate to generate thrust.
The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
In terms of actuators, the subdivision drive method is adopted to meet the requirements.

This stepper motor comes with a bracket, lead screw and relative motion slider. Mounting brackets can be replaced according to customer requirements.
Since the output shaft of the motor is a lead screw, during the rotation of the lead screw, the lead screw drives the slider to move back and forth. This conveniently provides actions such as forward and backward. In addition, the stepping motor can precisely control the speed, the number of revolutions, etc., which also determines the movement speed of the slider, and the movement position is precisely controllable. The positioning accuracy can be controlled within 0.05mm.
In addition, this is a motor with FPC, and there are also motors with connecting wires for customers to choose.





10mm M2 lead screw slider stepper motor Specifications:



Model No. VSM1069
Motor type Linear stepper motor
Phase No. 2 Phases
Step angle 18 °/Step
Phase resistance 15 Ω±10%
Excitation method 2-2 bipolar drive
Rated voltage 3.0V DC~5V DC
Lead screw type M2*0.4Pitch thread
Stroke 26 mm
Pull in thrust 3.0gf-cm min(AT 500PPS,3.0V DC)
Pull out thrust 3.8gf-cm min(AT 500PPS,3.0V DC)
Max starting frequency 800pps min.(AT 3.3V DC)
Max slewing frequency 1100pps min.(AT 3.3V DC)





10mm stroke 26mm plastic slider stepper motor specifications and dimensions:

Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC 0

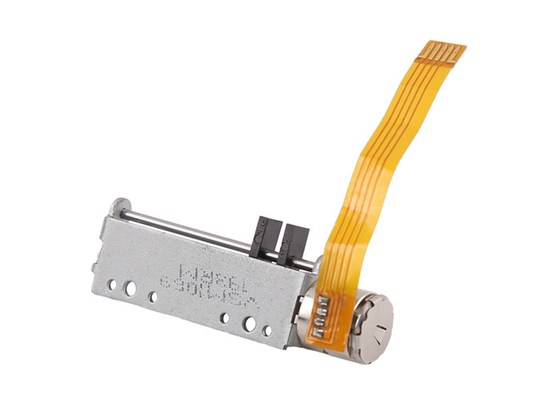

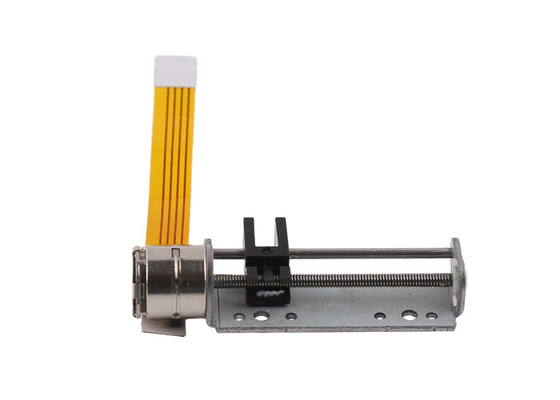

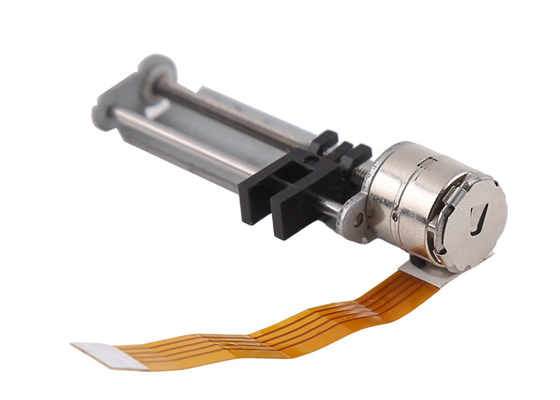

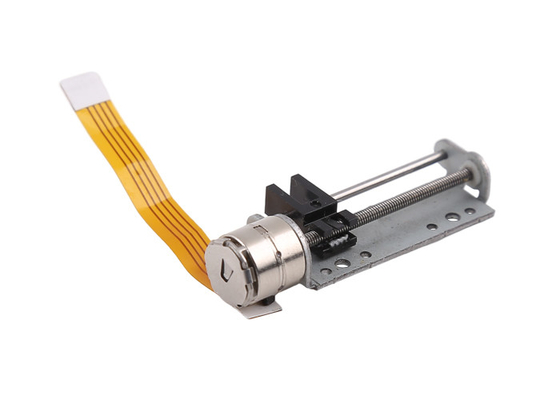

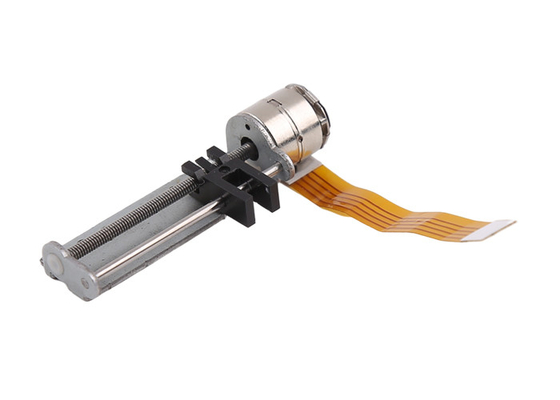

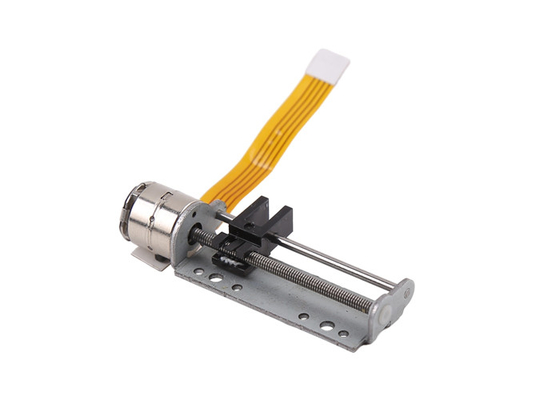

10mm plastic slider micro stepper motor product display:

Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC 1

Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC 2







Product Usage:

Intelligent lamps, intelligent robots, intelligent lifting systems, etc.



Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC 3

Customers can customize content:



1. The outer diameter of the motor can be selected from 6mm 8mm 10mm 15mm 20mm 25mm according to the customer's use environment and space strength.



2. The outlet position of this stepper motor can be freely selected within a range of 360 degrees to meet the installation requirements in the best state. In addition, the connector can choose lead, PCB, FPC bare pin.



2. The effective stroke of the motor can be customized within a certain range according to the needs of customers, mainly considering the diameter and length of the lead screw.

Generally speaking, the maximum length of M2 screws is 50mm, M3 screws can reach 100mm, and M4 screws can reach 100mm. 150mm can also be achieved. Small motors use lead screws that are too large in diameter and consume a lot of power. Therefore, it is also necessary to consider comprehensively when selecting a motor.



4. The material of the slider is generally plastic, which is easy to form and the price is relatively cheap.

When customers have special use environment and requirements, the slider can also be replaced with metal parts.

Of course, the cost of the slider will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.





FAQ:

1. What motors can you supply?
We currently mainly provide miniature motors and series geared motors (including spur geared motors, planetary geared motors, worm geared motors. Motor diameters from 6mm to 86mm are available.


2. Can you give me a price list?
Regarding all our motors, they are customized according to different requirements such as life, noise, voltage, shaft, etc. Prices also vary based on annual quantities. Therefore, it is difficult for us to provide a detailed price list. If you can share your detailed requirements and annual quantities, we will provide quotations according to the customer's detailed requirements and quantities.


3. What is the lead time for regular orders?
For regular orders, the standard delivery time is 3-25 days, which can be shorter or longer according to customers' different needs, cycles and quantities.


4. If we can provide mold fee, can you develop new motor?
Answer: Yes. Customers share detailed requirements such as performance, size, annual quantity, target price, etc. Our development department will evaluate whether it can be produced and the cost of production.


5. Can you send me free samples?
No, we do not provide free samples.



patent certificate:

Step angle 18 degrees precision 3.3 V DC Slider 10mm Micro Stepper Motor 2 Phase With FPC 4

Tags:

lead screw motor

mini slider screw stepper motor

full step drive stepper motor
