18 Degree Step Angle 15mm Micro Stepper Motor With Screw Slider Stepper Motor
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM15-80L-S |
| Minimum Order Quantity | 1Unit |
| Price | $7~$15/Unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2 Phases | Voltage | 12V DC |
|---|---|---|---|
| Resistance | 15Ω±10% | Step Angle | 18 Degrees |
| Current Per Phase | 600 MA/Phase | Drive Mode | Bipolar Drive |
| High Light | 18Degree Step Angle Stepper Motor,Screw Slider Stepper Motor,Screw Slider Micro Stepper Motor |
||
Product Description

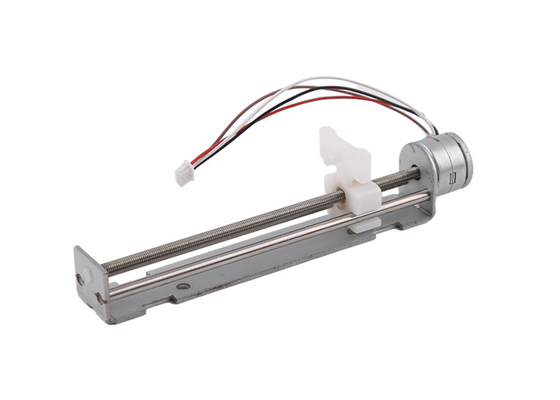

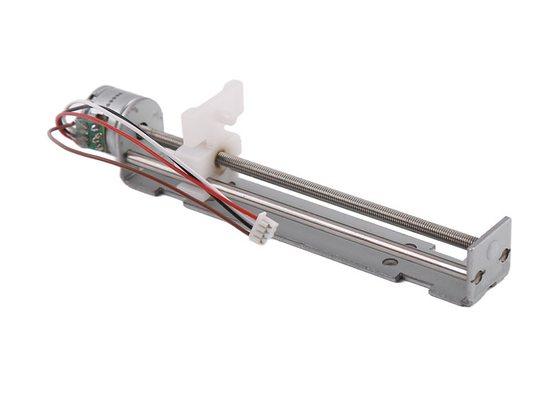

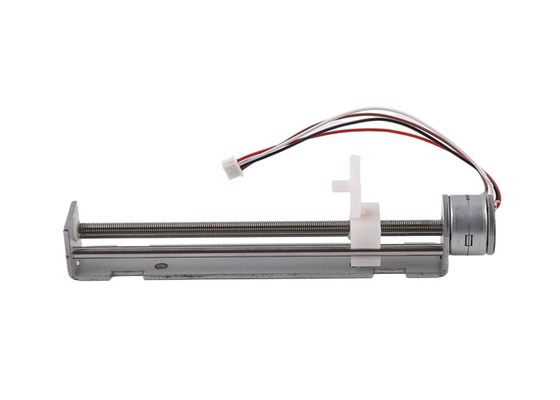

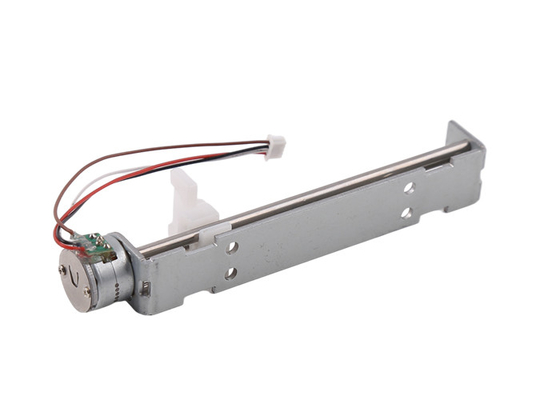

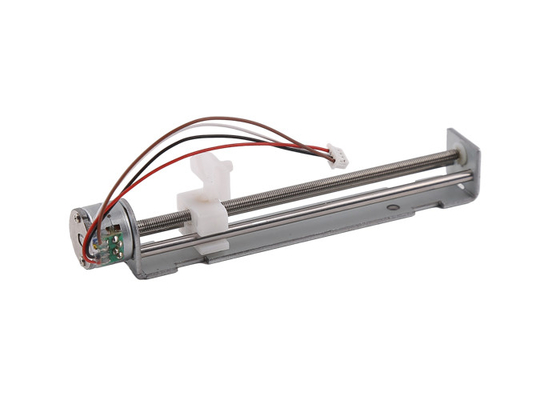

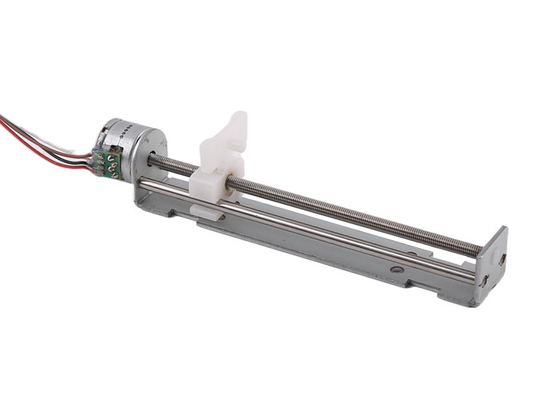

18 degree step angle stepper motor 15mm micro stepper motor with screw slider stepper motor
SM15-80L-S is a precision stepper motor with a 15mm plastic screw slider. The distance between the output shaft and the guide screw is 0.4mm.
The basic step angle of the motor is 18 degrees, and it runs 20 steps per week. The displacement resolution can reach 0.02mm, achieving precise control.
The executing agency adopts a segmented driving method to meet the requirements.
Exquisite design: This guide rail and linear block have a small volume and light weight, making them particularly suitable for small teams. This tool is easy to use, sturdy and durable.
Can be used for DIY small sliders/projects/equipment measurements/laser printers.
It adopts advanced technology and fine craftsmanship, and is an essential linear motion component.
Metal sliders can also be chosen instead of plastic sliders.
Mechanical Dimension:MM
Typical Applications
-
Intelligent Security Products
-
Camera Lenses
-
Door Locks
-
Wearable device
Specifications
| Product Name | 15mm micro stepper motor | |||
| Model |
SM15-80L-S |
|||
| Rated Voltage | 12V DC | |||
|
Coil Resistance |
15±10% ohm/PHASE(20℃)) |
|||
|
No.Of Phases |
2 Phases |
|||
|
Step Angle |
18°/Step |
|||
|
Current Per Phase |
800mA/Phase |
|||
|
Drive Mode |
Bipolar Drive |
|||
|
Pull-out-Thrust |
More Than 230 g AT 125PPS |
|||
|
Max Response Frequency |
More Than 1300 PPS |
|||
|
Max Starting Frequency |
More Than 900 PPS |
|||
|
Insulation Class |
CLASS E FOR COILS |
|||
|
Insulation Strength |
100V AC FOR ONE SECOND |
|||
|
Insulation Resistance |
50mΩ(DC 500 V) |
|||
|
Operating Temperature |
-0~55℃ |
|||
|
Motor surface temperature |
80℃ or less |
|||
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
