Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor

  • Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor
  • Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor
  • Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor
  • Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor
  • Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor
  • Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor
  • Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM10-816G
Minimum Order Quantity 1Unit
Price $3.5~$7/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000\ Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type PM Stepper Motor+ Gearbox Motor Size 10mm Diameter
Step Angle 18°/gear Ratio Gearbox Type 10*12 Gearbox
Connector Type FPC/4 Pin Connector Output Shaft D Shaft/ Lead Screw Shaft
High Light

VSM10 816G Stepper Motor

,

10x12 Gearbox Stepper Motor

,

10mm Permanent Magnet Motor
Leave a Message
Product Description

Optional gear ratio 10*12 gearbox 10mm permanent magnet VSM10-816G stepper motor



Description:

VSM10-816G is 10mm permanent magnet stepper motor attached with a 10*12 mm gearbox.

We have different gear ratios for choosing (from 2:1 to 1000:1), customers can choose gear ratio based on their speed/torque requirement.



About connector type, on the picture, it’s FPC.

We can also make it PCB+4 wires+ connector, and we have different pitch of connectors, such as 1mm/1.25mm/1.5mm/2mm/2.5mm pitch and so on.

The connector most commonly used for us is 51021-0400 (1.25mm pitch connector)



Motor Parameters:

Model No. VSM10-816G
Step angle 18°/gear ratio
Output shaft D shaft/M3 lead screw shaft
Connector type FPC/4 pin connector
Phase No. 2 phase
Motor type Bipolar
Coil resistance 20Ω/40Ω
Rated voltage 3.3~5V DC



Gearbox Parameters:

Gear ratio 2:1 5:1 10:1 15:1 20:1 30:1 36:1 50:1 63:1 67:1 89:1 100:1
Precise ratio 2.002 4.995 9.677 14.754 20.501 29.120 36.122 51.103 63.071 66.801 89.227 99.002
Tooth number 23 20 13 18 15 12 20 20 14 17 14 13
Gear levels 2 2 2 3 3 3 4 4 4 4 4 4
Efficiency 80% 80% 80% 72% 72% 72% 65% 65% 65% 65% 65% 65%

Gear ratio 110:1 150:1 172:1 210:1 250:1 275:1 298:1 380:1 420:1 500:1 600:1 1000:1
Precise ratio 110.407 150.948 171.883 210.591 250.111 274.403 297.924 387.689 421.296 506.155 599.394 986.406
Tooth number 12 18 13 12 13 12 12 12 12 18 16 12
Gear levels 5 5 5 5 5 5 5 5 5 7 7 7
Efficiency 59% 59% 59% 59% 59% 59% 59% 59% 59% 47% 47% 47%



Design drawing:

Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor 0



Product display:

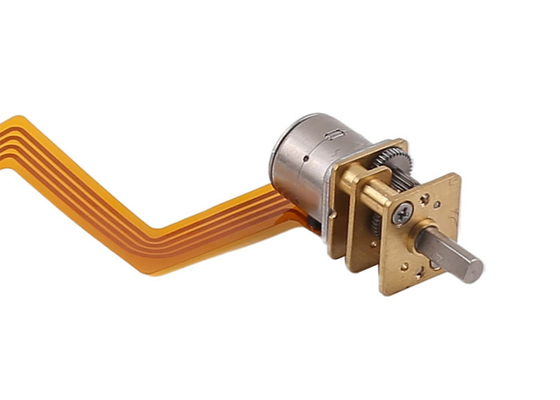

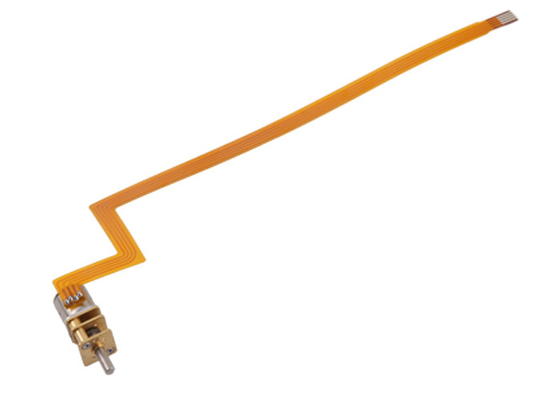

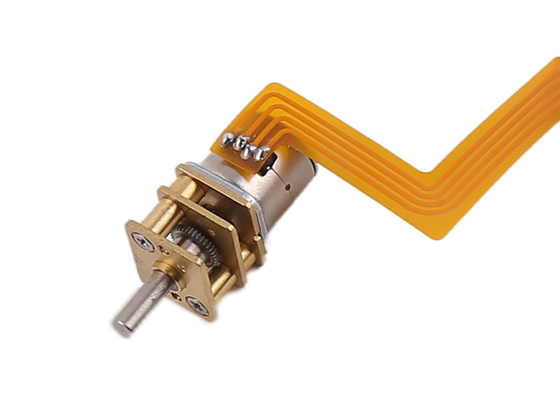

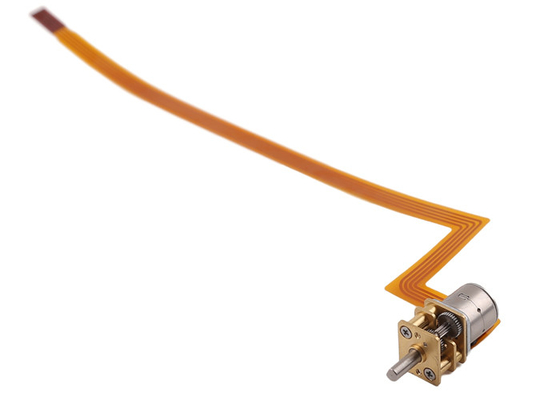

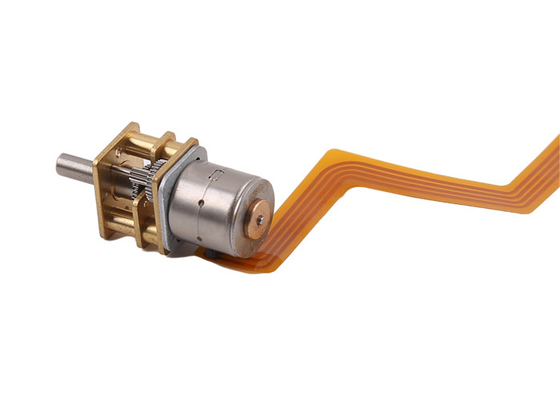

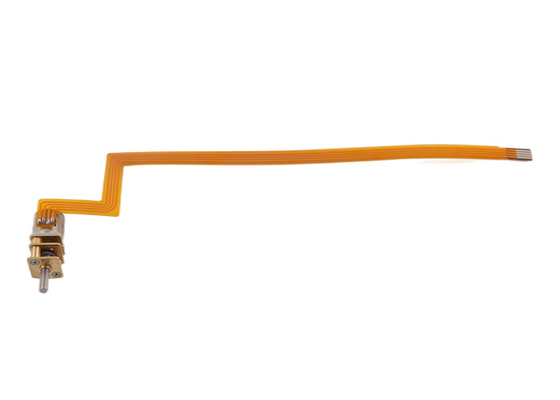

Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor 1



Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life



Stepper motors are widely used among all industries.

Optional Gear Ratio 10*12 Gearbox 10mm Permanent Magnet VSM10-816G Stepper Motor 2



Tags:

micro planetary gear motor

worm gear stepper motor

high torque geared dc motor
