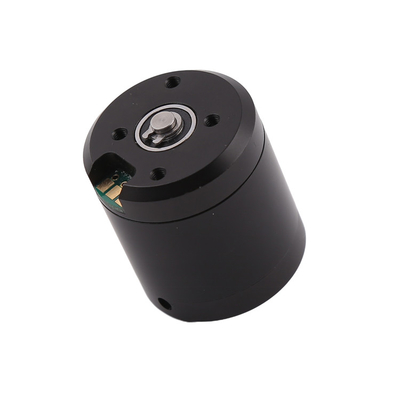

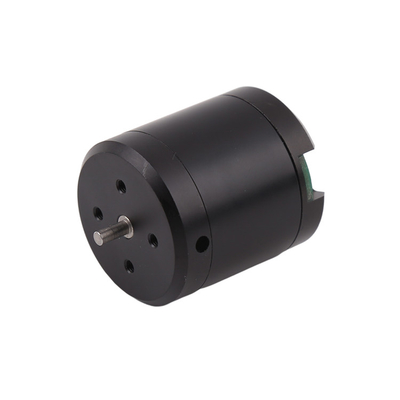

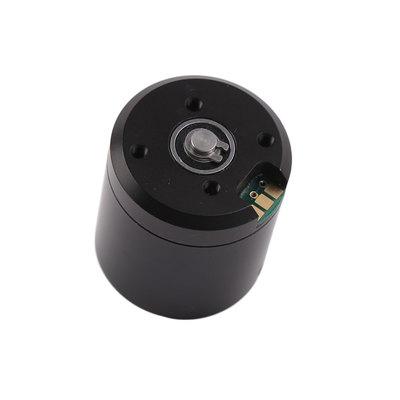

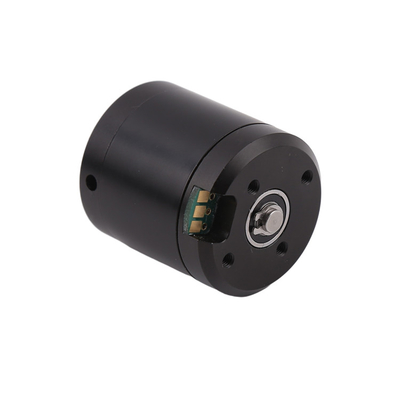

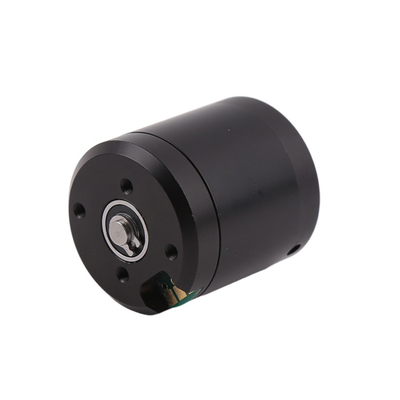

SW2216 12V-24V DC ROV Thruster Motors For Underwater Equipment Low Noise
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SW2216 |
| Minimum Order Quantity | 1Unit |
| Price | $19.13-$32.8 |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No | SW2216 | Motor Type | Underwater Motor |
|---|---|---|---|
| Weight | 76g | Underwater Thrust | About 1.5KG |
| Minimum Order Quantity | 1unit | Product Advantages | Stable Performance, Widely Used |
| High Light | 24V DC ROV Thruster Motors,Underwater Equipment ROV Thruster Motors,Low Noise Underwater Motor |
||
Product Description
SW2216 12V-24V DC ROV Thruster Motors For Underwater Equipment Low Noise
Description
SW2216 ROV thruster 12V-24V underwater equipment brushless DC motor for model submarine underwater motor with beautiful appearance, small size, long life, low noise technology, high energy saving rate, high torque and high precision.
The motor diameter is 28mm,total length is 40mm.
The thrust is about 1.5kg.
KV value is 500-560KV,
It has a wide range of applications in precision electronic equipment, automation equipment, water and underwater equipment, model aircraft drones and intelligent robots
Parameters
| Motor type | Underwater brushless motor |
| Weight | 76g |
| Underwater thrust | About 1.5KG |
| Rated voltage | 12~24V |
| KV value | 500~560 |
| Unload speed | 6500~13000 RPM |
| Rated power | 100~350W |
| Loaded current | 10~15A |
| Rated torque | Rated torque |
Design drawing:Screw holes on top used to fix propeller
About underwater motors
Because brushless motor uses electronic commutation, so let brushless motor operation need to adapt to the motor voltage DC power supply, driver (ESC) and speed control signal.
Take a common model ESC as an example, first disconnect the power supply, connect the motor leads and speed signal line, the throttle travel to the highest (full duty cycle), connected to the power supply, you will hear the "drop" two sounds, the throttle travel quickly to the lowest position, and then you can hear the normal start of the motor "drop ---- drop" sound, the throttle travel calibration is complete, you can start the motor normally. (The operation mode of ESC may be different for different manufacturers, please refer to the manual of the corresponding ESC model or consult the ESC manufacturer for details)
Customers can use regular drone ESC (Electrical speed control) to drive this motor.
We only produce motors, and we do not provide ESC.
SW2216 motor Performance curve (16V, 550KV)
Underwater motor advantages
1,Waterproof and moisture-proof to avoid short circuit of electrical components inside the chamber.
2,Effective blocking of dust and particles to avoid bearing wear.
3,Keep the cavity dry to avoid the motor and motor being corroded and oxidized, resulting in poor contact or leakage.
Applications
●Precision Electronic Instrument
●Automation Equipment
●Underwater Equipment
●Aircraft Model Drone
●Smart Robot
Output axis
Lead time and packaging information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
PackagingDelivery method and time
| UPS | 5-7 working days |
| TNT | 5-7 working days |
| FedEx | 7-9 working days |
| EMS | 12-15 working days |
| China Post | Depends on ship to which country |
| Sea | Depends on ship to which country |
payment method
| payment method | Master card | Visa | e-Checking | PAYLATER | T/T | Paypal |
| Sample order lead-time | about 15 days | |||||
| Lead time for bulk orders | 25-30 days | |||||
| products quality guarantee | 12 months | |||||
| Packaging | single carton packing, 500 pieces per box. | |||||
