8mm Stepper Motor Planetary Gearbox Small Size With MIM Technology
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM08PG |
| Minimum Order Quantity | 1Unit |
| Price | $5-$15/unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000\ Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | 8mm Stepper Motor | Step Angle | 18 Degrees/20 |
|---|---|---|---|
| No. Of Phases | 2 Phases (Bipolar) | Rated Voltage | 5V DC |
| Coil Resistance | 14Ω/phase | Gearbox Type | Planetary Gearbox |
| Gear Ratio | 20:1 | ||
| High Light | Planetary Gearbox 8mm Stepper Motor,MIM 8mm Stepper Motor,MIM Planetary Gearbox Stepper Motor |
||
Product Description
8mm Stepper Motor Planetary Gearbox Small Size With MIM Technology
Description

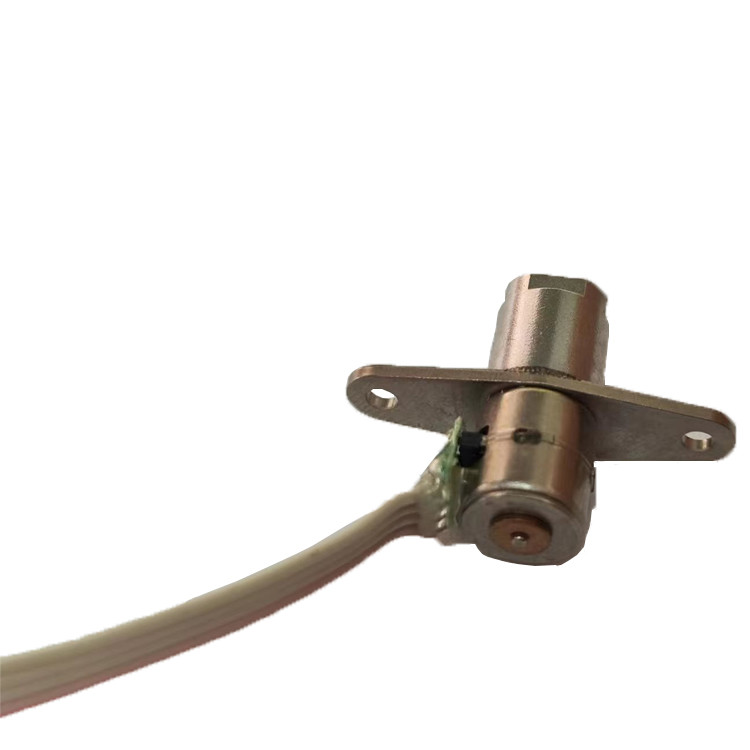

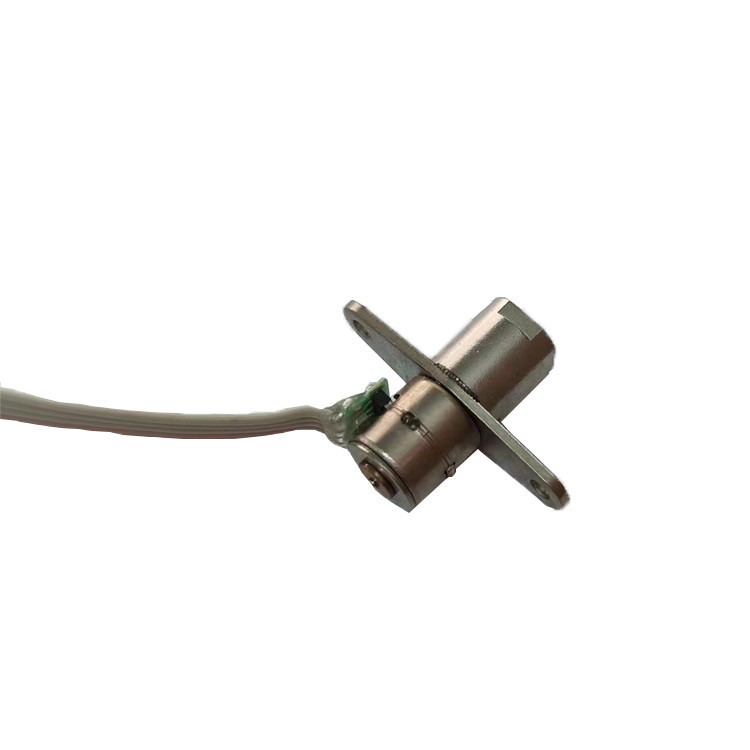

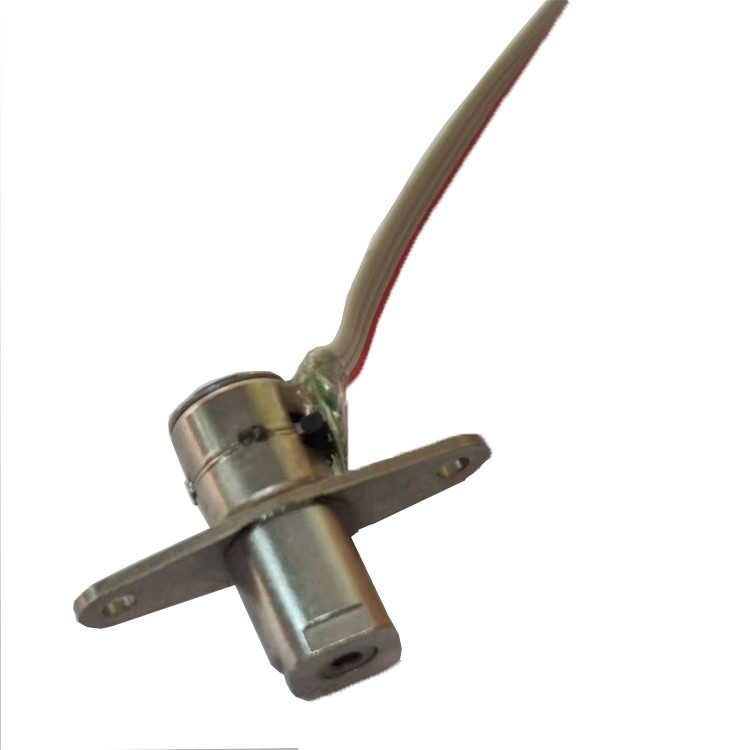

This motor is 8mm diameter stepper motor with planetary gearbox on top.
There are two levels on the gearbox, gear ratio of first level is 4:1, and the gear ratio on the second level is 5:1, thus total ratio is 4*5=20:1

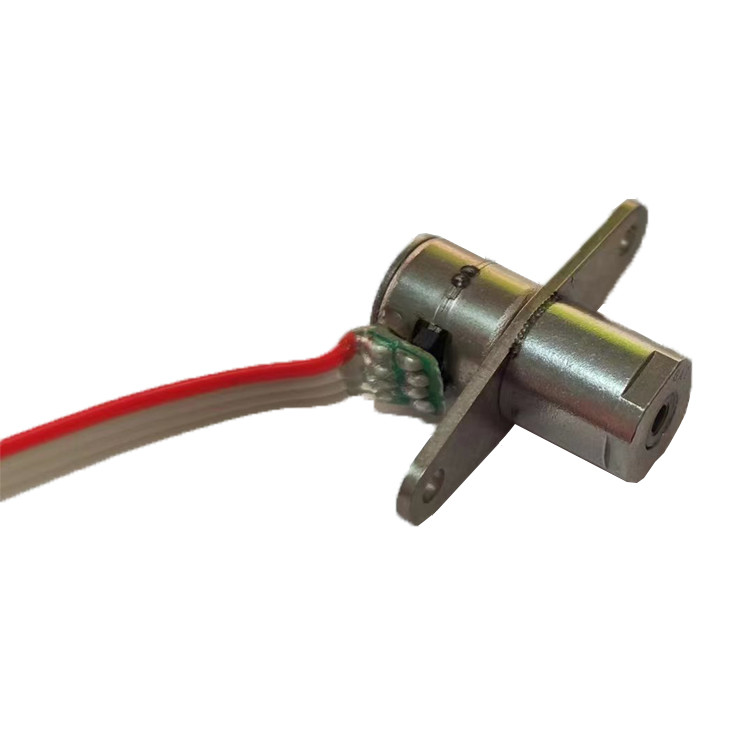

There is a flange in the middle for assembly. If customers think it takes too much of space, we could remove it for mass production in the future, and it does not affect motor’s parameters.

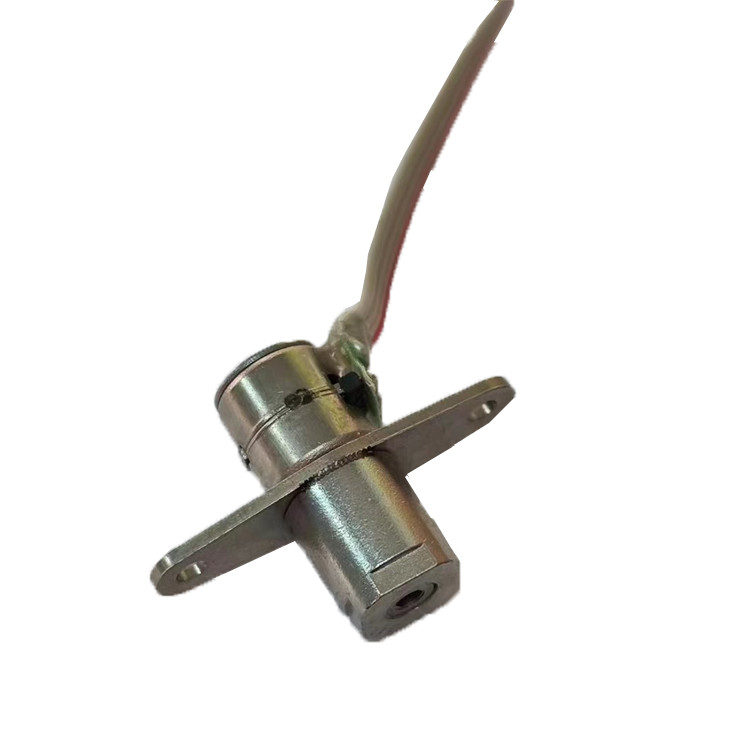

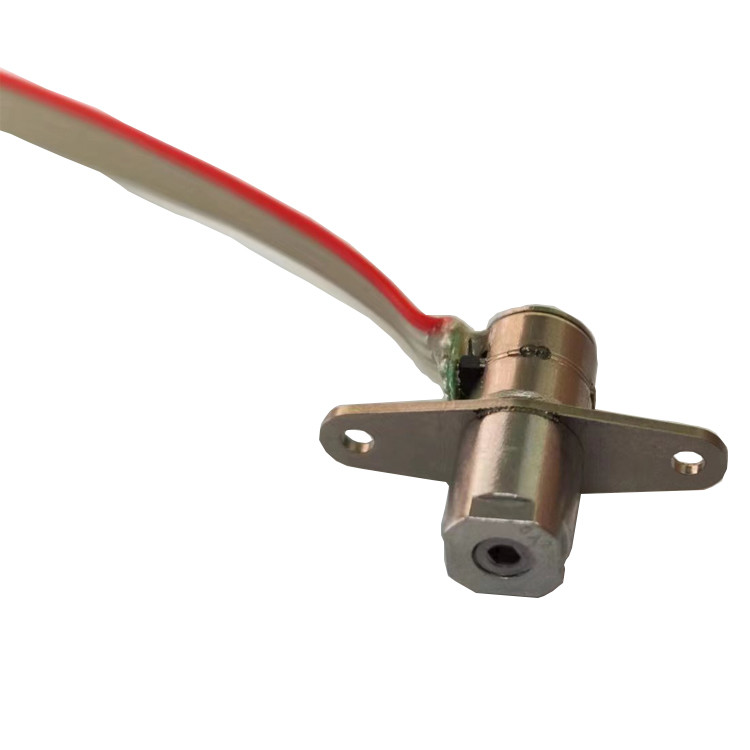

This motor does not have output shaft, it has a blind hole instead.
Customers can design a output shaft, with the end fits in the blind hole, and then insert it in.It would be equivalent as a regular output shaft.
Parameters
| Model No. | SM08PG |
| Motor diameter | 8 mm |
| Drive voltage | 5V DC |
| Coil resistance | 14Ω±10%/phase |
| Number of phase | 2 phases (bipolar) |
| Step angle | 18 degrees/20 |
| Gearbox type: | Planetary gearbox |
| Gear ratio | 20:1 |
Design Drawing
About planetary gearbox (MIM technology)
This planetary gearbox is specifically design drawing micro electronic products such as mobile phone, camera and other small sized products.
It’s a 2 levels gearbox, and the gears and other components inside are made from Metal injection Molding technique (MIM technology).
MIM technology use injection method to produce metallic parts, just like the way we product plastic with injection mold. It can produce high precision metal parts with small size and high precision, which is critical for a mini sized gearbox.
But the equipment of MIM technology is expensive, thus the order quantity of it is higher. Otherwise the cost on each piece of product is too long. So minimum order quantity of MIM is higher, in order to lower average cost.
About geared stepper motors
1.The power input part of the standard stepper motor is available in the form of FPC, FFC, PCB cable, etc.
2.For output shaft, we have two different types of standard shafts:D shaft and screw shaft. If a special axis type is required, we can also customize it, but there is an additional customization cost.
3.8 mm diameter permanent magnet stepper motor with 10*8 mm gear box. The gear box has high precision, high efficiency and low noise, which makes the product have good reliability.
Application
Geared stepper motors, widely used in Smart home, personal care, home appliance equipment, smart medical equipment, smart robot, smart logistics, smart cars, communication equipment, smart wearable devices, consumer electronics, camera equipment, and other industries.
Customization Service
1. Coil resistance/rated voltage: The coil resistance is adjustable, the higher the resistance, the higher the rated voltage of the motor.
2. Bracket design/slider length: If customers want longer or shorter bracket, there are special design, such as mounting holes, it is adjustable.
3. Slider design: the current slider is brass, it can be replaced with plastic to save cost
4. PCB+cable+connector: PCB design, cable length, connector pitch are adjustable, can be replaced with FPC according to customer's need.
Lead Time and Packaging Information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
Shipping Method
On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
