20mm Diameter Gearbox Stepper Motor 20BY45-20GB Multiple Gear Ratio Optional
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 20BY45-20GB |
| Minimum Order Quantity | 1Unit |
| Price | $4.5~7/unit |
| Packaging Details | The product is packed with pearl cotton, and the outside is in a carton. |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 10000Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | 20mm Stepper Motor | Step Angle | 18 Degrees/gear Ratio |
|---|---|---|---|
| No. Of Phases | 2 Phases (Bipolar) | Rated Voltage | 8V DC |
| Coil Resistance | 10Ω/phase | Gearbox Type | 20GB Gearbox |
| Gear Ratio | 10:1~488.3:1 | ||
| High Light | 20mm Gearbox Stepper Motor,8V DC Gearbox Stepper Motor,2 Phases 20mm Stepper Motor |
||
Product Description

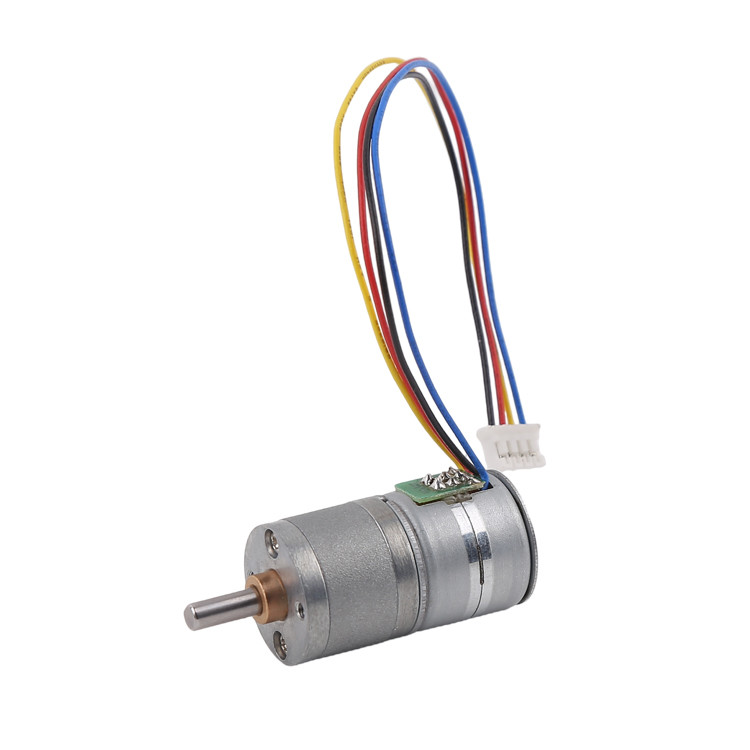

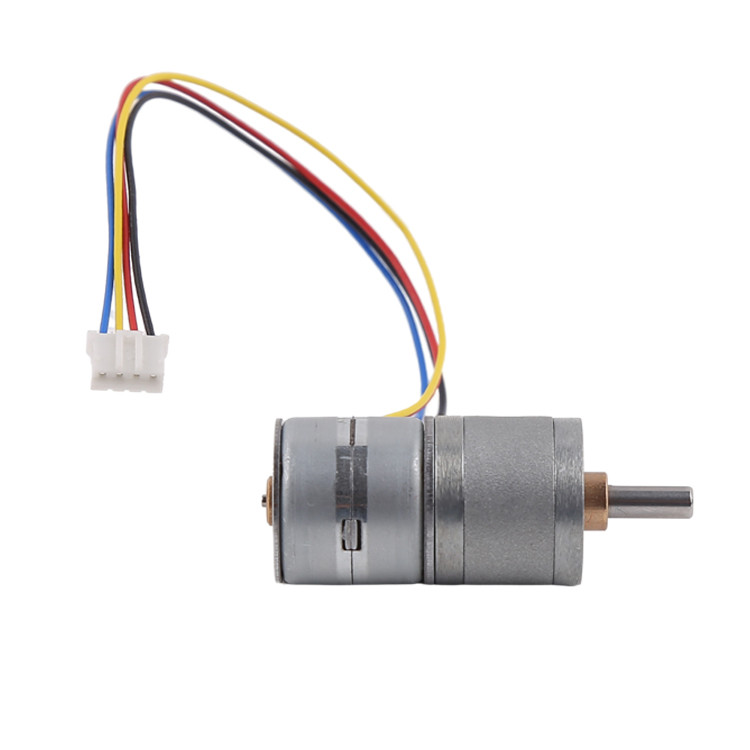

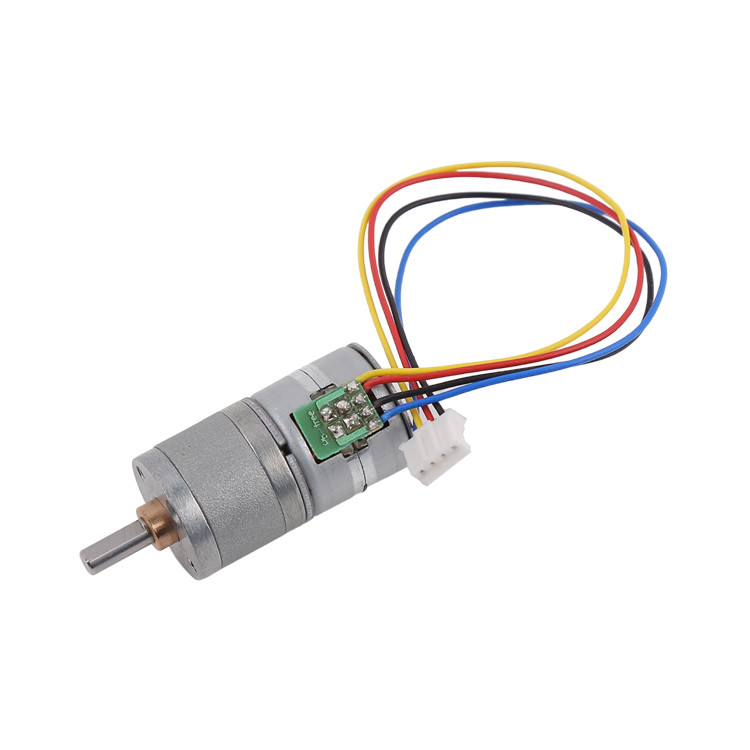

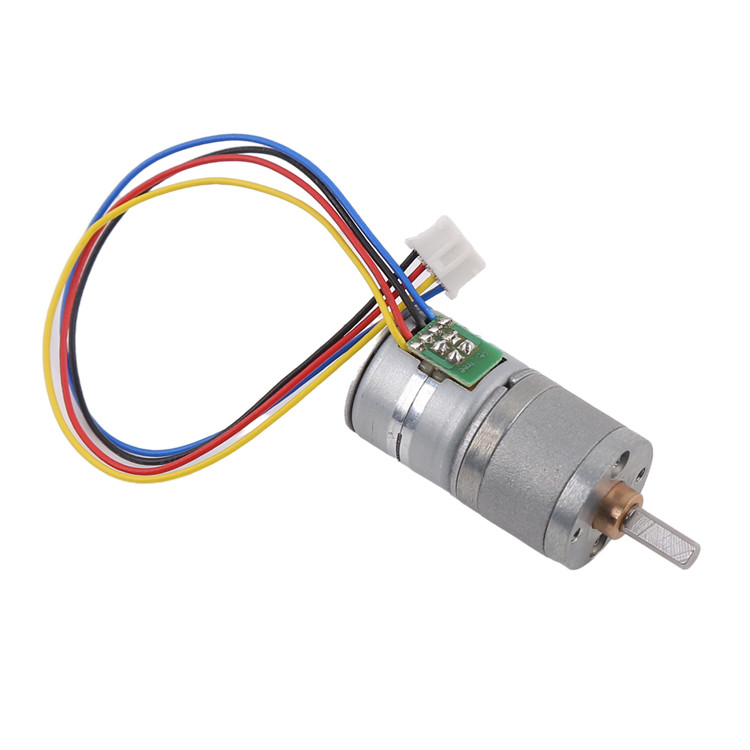

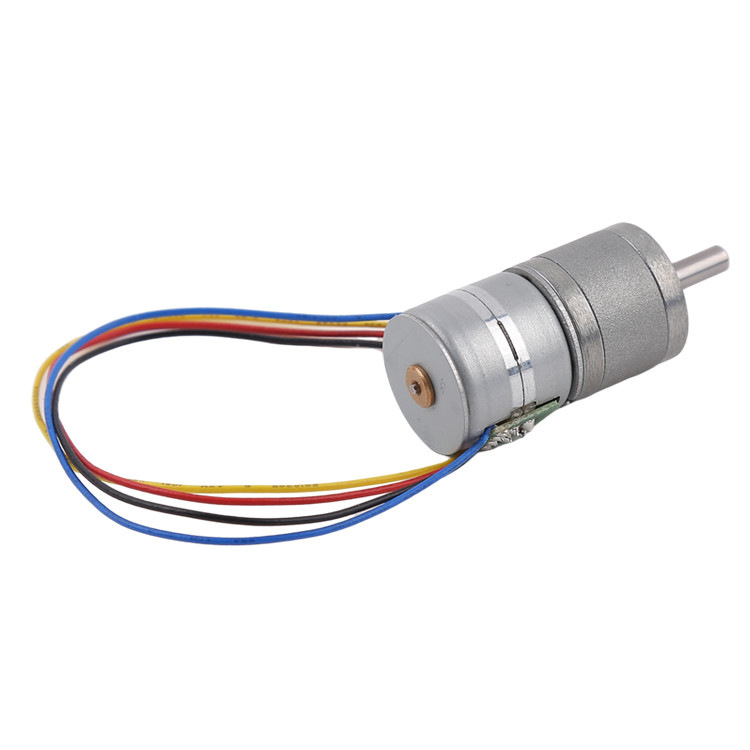

20mm Diameter Stepper Motor With Gearbox 20BY45-20GB Multiple Gear Ratio Optional
Description
20BY45-20GB is a 20BY45 permanent magnet stepper motor attached with a GB20 20mm diameter gearbox.
The step angle of the single motor is 18°/step.
With different gear ratio, it would have different output speed and torque performance.
If customers want more torque, we suggest to user higher gear ratio.
If customers want higher output speed, we suggest to keep gear ratio down.
The length of gearbox is related to gear levels, with more levels, there are more gears, and it makes the gearbox longer:
Gear levels: 3/4 levels, gearbox length 16mm, gear ratio: 10:1~31.25:1
Gear levels: 5 levels, gearbox length 17.5mm, gear ratio: 50:1~78.1:1
Gear levels: 6 levels, gearbox length 19mm, gear ratio: 100:1~195.3:1
Gear levels: 7 levels, gearbox length 20.5mm, gear ratio: 250:1~488.3:1
Parameters
| Model No. | 20BY45-GB20 |
| Motor diameter | 20 mm |
| Drive voltage | 8V DC |
| Coil resistance | 10Ω±10%/phase |
| Number of phase | 2 phases (bipolar) |
| Step angle | 18°/ gear ratio |
Gearbox parameters
| Gear ratio | 10:1 | 12.5:1 | 25:1 | 31.25:1 | 50:1 | 78.1:1 | 100:1 |
| Tooth number | 14 | 20 | 18 | 14 | 18 | 15 | 18 |
| Gear levels | 3 | 3 | 4 | 4 | 5 | 5 | 6 |
| Efficiency | 71% | 71% | 64% | 64% | 58% | 58% | 58% |
| Gear ratio | 125:1 | 156.25:1 | 195.3:1 | 250:1 | 312.5:1 | 390.6:1 | 488.3:1 |
| Tooth number | 15 | 14 | 16 | 15 | 19 | 15 | 14 |
| Gear levels | 6 | 6 | 6 | 7 | 7 | 7 | 7 |
| Efficiency | 52% | 52% | 52% | 46% | 46% | 46% | 46% |
Design Drawing
Application
Geared stepper motors, widely used in Smart home, personal care, home appliance equipment, smart medical equipment, smart robot, smart logistics, smart cars, communication equipment, smart wearable devices, consumer electronics, camera equipment, and other industries.
Lead Time and Packaging Information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
Shipping Method
On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
