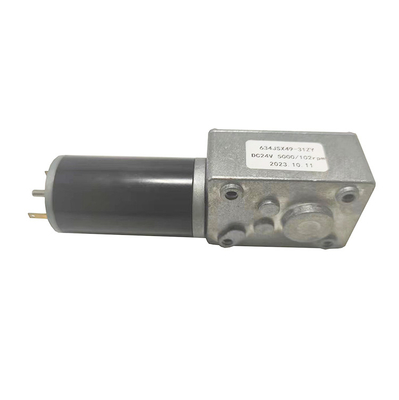

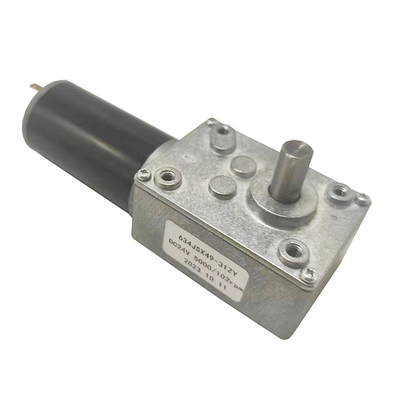

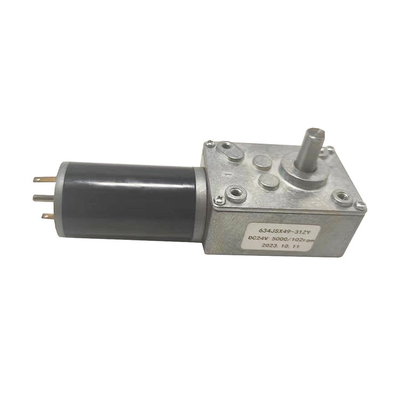

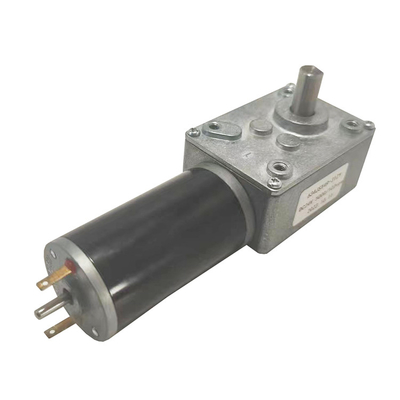

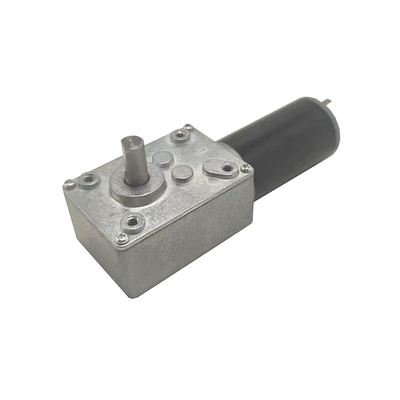

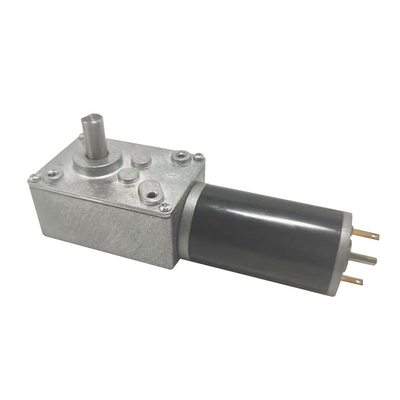

31ZY Worm Gearbox DC Brushed Motor Multiple Gear Ratio Optional 24V DC
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 634JSX-31ZY |
| Minimum Order Quantity | 1 Unit |
| Price | $10~$18/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gearbox Type | Worm Gearbox | Gearbox Ratio | 17:1~634:1 |
|---|---|---|---|
| Motor Type | DC Brushed Motor | Motor Diameter | 31mm |
| Unloaded Motor Speed | 5200RPM/gear Ratio | Rated Voltage | 24 V DC |
| High Light | Worm Gearbox DC Brushed Motor,31ZY DC Brushed Motor,24V DC Gearbox Motor |
||
Product Description
31ZY worm gearbox DC brushed motor multiple gear ratio optional 24V DC
Mechanical Dimension:MM
This is 31mm DC brushed motor with worm gearbox.
The DC motor has 31mm diameter, rated voltage is 24V DC.
The motor has about 5200 RPM unload speed without gearbox, it’s assembled with gearbox.
Output speed=motor’s speed/gearbox ratio.
The gearbox used is a worm gearbox.
A worm gearbox has few features:
1. Self locking function: when motor’s power off, output shaft is locked. Outer force is not able to rotate output shaft.
2. Output shaft is perpendicular to motor's shaft
3. Worm gearbox has low efficiency, thus output torque is lower compared to other gearbox types.
Please confirm gearbox ratio based on your actual requirement, before placing order.
Motor parameters:
| Motor type | DC brushed motor |
| Motor diameter | 31 mm |
| Rated voltage | 24 V DC |
| Unloaded output speed | 5200 RPM/gear ratio |
| Loaded current | 0.5 A |
| Stalled current | 2A |
| Gearbox ratio |
17:1/28:1/32:1/49:1/74:1/ 101:1/153:1/218:1/287:1/ 290:1/408:1/505:1/634:1 |
Product Detail Presentation
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
