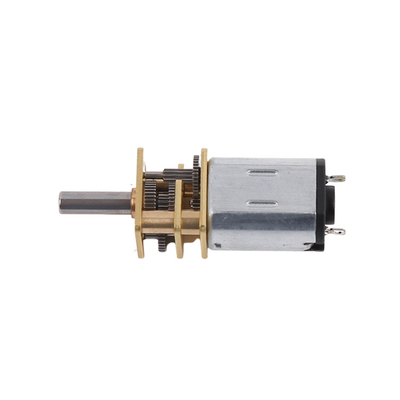

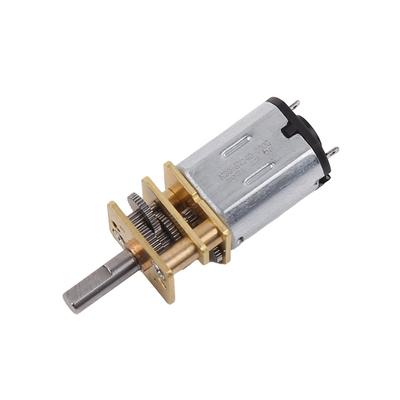

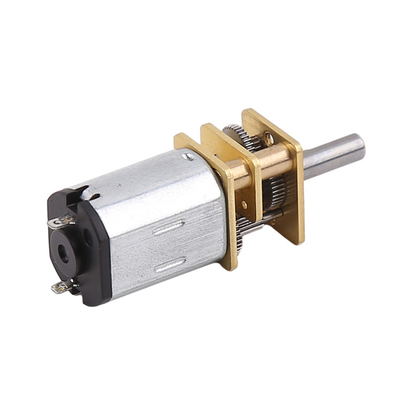

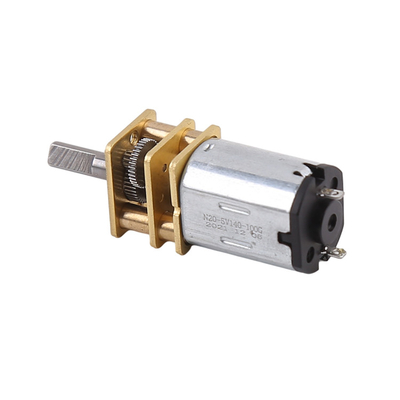

Reliable Mini DC Motor Gearbox - 12000-16000RPM Unloaded Speed Average Length 10.5mm

  • Reliable Mini DC Motor Gearbox - 12000-16000RPM Unloaded Speed Average Length 10.5mm
  • Reliable Mini DC Motor Gearbox - 12000-16000RPM Unloaded Speed Average Length 10.5mm
  • Reliable Mini DC Motor Gearbox - 12000-16000RPM Unloaded Speed Average Length 10.5mm
  • Reliable Mini DC Motor Gearbox - 12000-16000RPM Unloaded Speed Average Length 10.5mm
  • Reliable Mini DC Motor Gearbox - 12000-16000RPM Unloaded Speed Average Length 10.5mm
Place of Origin China
Brand Name Vic-Tech
Certification RoHS
Model Number 12GB-N20
Minimum Order Quantity 1Unit
Price $2.5~$6/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton. Most bulk products use pallets for easy transportation and product protection
Delivery Time 10~20 days after the sample is paid
Payment Terms T/T, Paypal, Credit card
Supply Ability 10000 pc/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Gearbox Length 9mm/12mm Output Shaft D Shaft/M3 Lead Screw
Loaded Torque(single Motor) About 3g*cm Rated Voltage 3V~12V DC
Gear Ratio 2:1 ~1000:1 Motor Type N20 DC Motor+gearbox
Output Torque Single Motor Torque*gear Ratio* Efficiency Gearbox Type 10*12mm Gearbox
Leave a Message
Product Description

Product Description:

Small DC Gear Motor is a type of bldc planetary gear motor, encoder gear motor and N20 gear box motor. It is popularly used in robotic applications due to its high torque, small size and low cost. The output torque of the motor is determined by the single motor torque, gear ratio and efficiency. It is available in two gearbox lengths, 9mm and 12mm, and two types of gearbox, 10*12mm and N20 gearbox. The output shafts of the motor include D Shaft and M3 Lead Screw. The unloaded speed of the single motor is between 12000 and 16000 RPM.



Features:

  • Product Name: Small DC Gear Motor
  • Output shaft: D Shaft/M3 Lead Screw
  • Output torque: Single Motor Torque*gear Ratio* Efficiency
  • Output speed: Single Motor Speed/gear Ratio
  • Gear ratio: 2:1 ~1000:1
  • Gearbox type: 10*12mm Gearbox
  • Horizontal Gear Motor
  • Worm Gear Reducer Motor
  • Gear Box DC Motor


Technical Parameters:

Parameter Value
Gearbox type 10*12mm Gearbox
Output torque Single Motor Torque*gear Ratio* Efficiency
Output speed Single Motor Speed/gear Ratio
Motor type N20 DC Motor+gearbox
Gearbox length 9mm/12mm
Loaded torque(single motor) About 3g*cm
Unloaded speed (single motor) 12000~16000RPM
Rated voltage 3V~12V DC
Output shaft D Shaft/M3 Lead Screw
Gear ratio 2:1 ~1000:1


Applications:

The Vic-Tech 12GB-N20 small DC gear motor is a powerful and durable motor designed for a variety of applications. It features a N20 DC motor with 10*12mm gearbox, a gear ratio of 2:1 to 1000:1, and an output torque of Single Motor Torque*gear Ratio* Efficiency. This motor is RoHS certified with a minimum order quantity of 1Unit, and a price range of $2.5~$6/Unit. It is available in a variety of packaging options, including pearl cotton and carton for bulk products, and pallets for easy transportation and product protection. Delivery is usually between 10~20 days after the sample is paid, and payment options include T/T, Paypal, and Credit card. With a supply ability of 10000 pc/Month, this small DC gear motor is suitable for use in many applications, such as horizontal gear motor, worm gear dc motor 24v, and many more.



Customization:

Small DC Gear Motor

The Small DC Gear Motor from Vic-Tech is a great choice for all your gear motor needs. This motor comes with a 10*12mm gearbox, and can achieve a loaded torque of about 3g*cm. It is rated to run from 3V-12V DC, and offers a unloaded speed of 12000~16000RPM. In addition, this motor is RoHS certified and comes with a minimum order quantity of 1Unit.

Product Details:

  • Brand Name: Vic-Tech
  • Model Number: 12GB-N20
  • Place of Origin: China
  • Certification: RoHS
  • Minimum Order Quantity: 1Unit
  • Price: $2.5~$6/Unit
  • Packaging Details: The product is packed with pearl cotton, and the outside is in a carton. Most bulk products use pallets for easy transportation and product protection
  • Delivery Time: 10~20 days after the sample is paid
  • Payment Terms: T/T, Paypal, Credit card
  • Supply Ability: 10000 pc/Month
  • Gearbox type: 10*12mm Gearbox
  • Loaded torque(single motor): About 3g*cm
  • Rated voltage: 3V~12V DC
  • Unloaded speed (single motor): 12000~16000RPM
  • Motor type: N20 DC Motor+gearbox

Keywords:

  • 24v worm gear motor
  • Horizontal gear motor
  • Worm gear reducer motor
  • DC gear motor


Support and Services:

Small DC Gear Motor Technical Support and Service

We provide comprehensive technical support and service for our Small DC Gear Motors. Our team of experienced engineers and technicians is available to help you with any questions or problems you may have.

We offer free telephone technical support, email technical support and on-site technical service. If you experience a problem, we can help you troubleshoot and diagnose the issue quickly and efficiently, and provide a solution.

We also offer personalized training and installation services, and we can help you customize and optimize your Small DC Gear Motor for your specific application.
