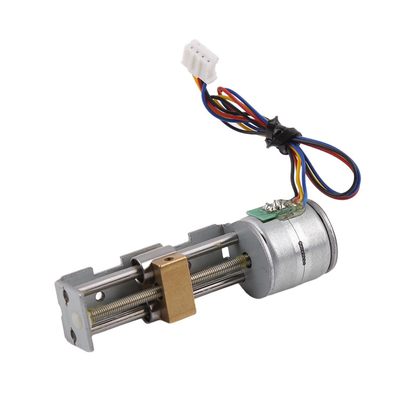

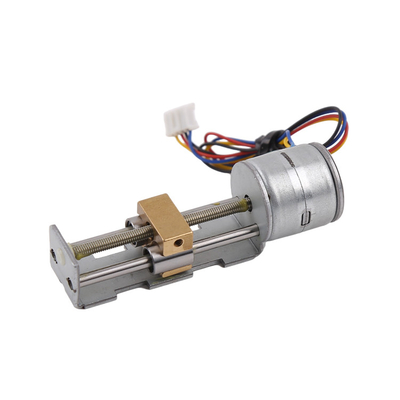

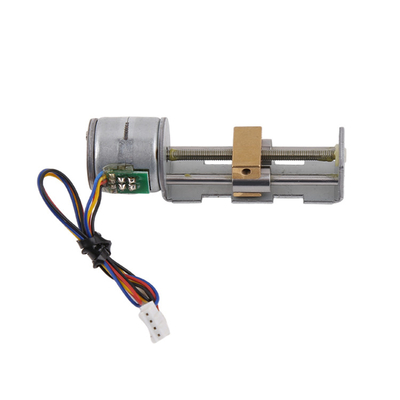

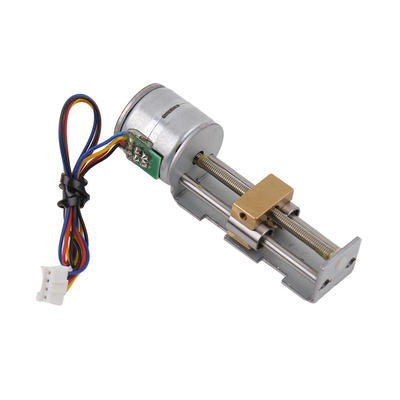

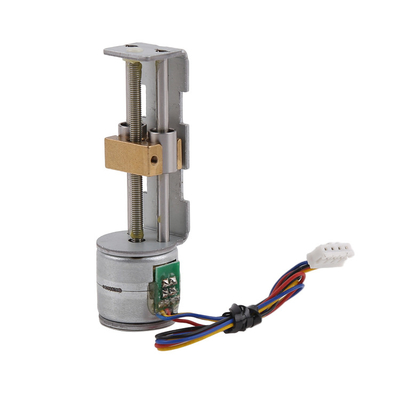

Precision Driven 20mm Slider Linear Stepper Motor M3*0.5P Lead Screw About 34mm Stroke
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM20-34L |
| Minimum Order Quantity | 1Unit |
| Price | $7~$18/Unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 10~30 days after receiving sample payment |
| Payment Terms | MoneyGram, Western Union,Credit Card,T/T, L/C |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Stroke | About 34mm | Step Length | 0.025mm/step |
|---|---|---|---|
| Step Angle | 18°/step | Motor Diame | 20mm |
| Phase Number | 2 Phases | Coil Resistance | 20Ω/phase |
| Motor Type | Linear Stepper Motor With Slider | Lead Screw | M3*0.5P |
| High Light | 20mm Slider Linear Stepper Motor,34mm Stroke Linear Stepper Motor,M3x0.5P Lead Screw Stepper Motor |
||
Product Description
Precision-Driven 20mm Slider Linear Stepper Motor M3*0.5P Lead Screw About 34mm Stroke
Product Description:
This Slider Stepper Motor is a small linear motor, which is a captive linear actuator stepper motor. It has a step length of 0.025mm/step, a stroke of about 34mm, a coil resistance of 20Ω/phase, a step angle of 18°/step, and a motor diameter of 20mm. It is a highly precise and reliable linear actuator, making it ideal for applications where small movements and positioning accuracy are required, such as in the medical, robotics, agricultural, and aerospace industries.
This Slider Stepper Motor is perfect for applications such as medical equipment, robots, agricultural machinery, and aerospace equipment. It provides high precision and accuracy, with its step length of 0.025mm/step and step angle of 18°/step. It also has a stroke of about 34mm and a coil resistance of 20Ω/phase, allowing for excellent stability and repeatability. The motor diameter of 20mm makes it ideal for applications where space is limited, as well as those that require a small, lightweight motor.
Features:
- Compact Linear Motor: Slider Stepper Motor
- Coil resistance: 20Ω/phase
- Small Linear Motor: Slider design: Brass Slider+double Linear Bearings
- Stroke: About 34mm
- Phase number: 2 Phases
- Step angle: 18°/step
- Slider linear stepper motor: Slider Stepper Motor
Technical Parameters:
| Parameter | Value |
|---|---|
| Lead screw | M3*0.5P |
| Motor type | Linear Stepper Motor With Slider |
| Slider design | Brass Slider+double Linear Bearings |
| Step angle | 18°/step |
| Step length | 0.025mm/step |
| Thrust | About 1.3 KG |
| Phase number | 2 Phases |
| Motor diame | 20mm |
| Coil resistance | 20Ω/phase |
| Stroke | About 34mm |
| Product type | Captive Linear Actuator Stepper Motor |
Applications:
VIC-TECH SM20-34L precision linear motors are RoHS certified and come with a minimum order quantity of 1Unit. With a thrust of 1.3 KG, a motor diameter of 20mm, and a lead screw of M3*0.5P, these slider linear stepper motors are capable of stroke up to 34mm. The attractive pricing of $7-18/Unit and the fact that this small linear motor is available in standard export package or can be customized make it a very attractive choice. Delivery time is 10-30 days after receiving sample payment and payment terms include MoneyGram, Western Union, Credit Card, T/T, and L/C. With a supply capability of 100000 Units/year, VIC-TECH SM20-34L is a great choice of linear motor with slider.
Customization:
VIC-TECH 20mm Slider Linear Stepper Motor - Model SM20-34L
Brand Name: VIC-TECH
Model Number: SM20-34L
Place of Origin: China
Certification: RoHS
Minimum Order Quantity: 1Unit
Price: $7~$18/Unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 10~30 days after receiving sample payment
Payment Terms: MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability: 100000 Units/year
Product Features
Motor diame: 20mm
Coil resistance: 20Ω/phase
Thrust: About 1.3 KG
Motor type: Linear Stepper Motor With Slider
Step length: 0.025mm/step
VIC-TECH 20mm Slider linear stepper motor is a Captive Linear Actuator Stepper Motor, with an integrated slider and guide rail, providing a long life and reliable motion control solution. This stepper motor is perfect for applications requiring precision positioning. It is RoHS certified and comes with a minimum order quantity of 1Unit with a price range of $7~$18/Unit.
Support and Services:
Slider Stepper Motor technical support and services include:
- 24/7 online support
- Free product installation
- Product troubleshooting and repair
- Software updates
- Technical advice and guidance
