M2*P0.4 Lead Screw Slider Linear Stepper Motor - Customizable Performance

  • M2*P0.4 Lead Screw Slider Linear Stepper Motor - Customizable Performance
  • M2*P0.4 Lead Screw Slider Linear Stepper Motor - Customizable Performance
  • M2*P0.4 Lead Screw Slider Linear Stepper Motor - Customizable Performance
  • M2*P0.4 Lead Screw Slider Linear Stepper Motor - Customizable Performance
  • M2*P0.4 Lead Screw Slider Linear Stepper Motor - Customizable Performance
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM08102
Minimum Order Quantity 1Unit
Price $2.8~$7/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 10~30 days after receiving sample payment
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 100000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lead Screw Type M2*0.4P Motor Type Linear PM Stepper Motor With Slider
Coil Resistance 20Ω/phase Pull-out Thrust 80g Min (500 PPS)
Max Starting Frequency 800Hz(Min) Lead Screw M2*P0.4
Travel Per Step 0.02mm Step Angle 18°/step
Leave a Message
Product Description

Product Description:

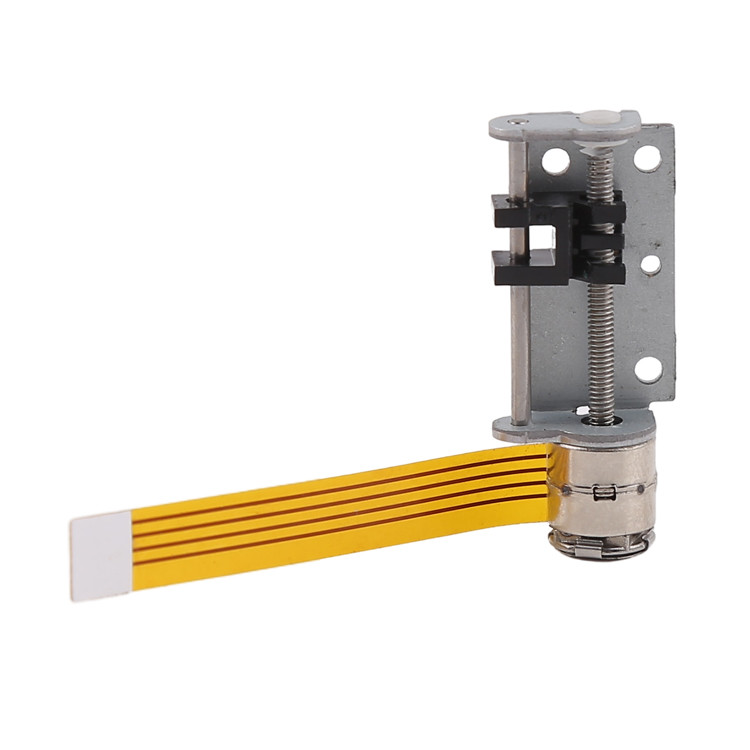

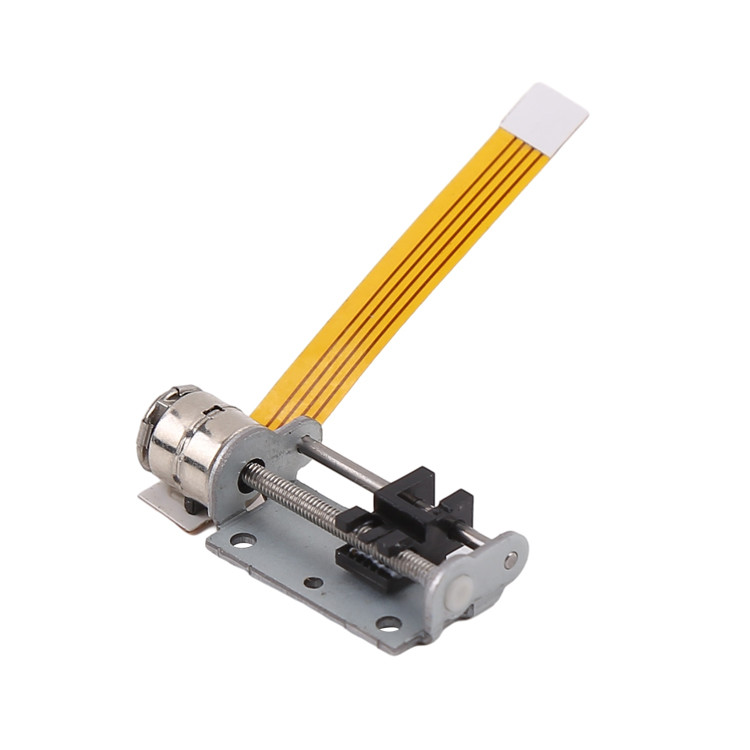

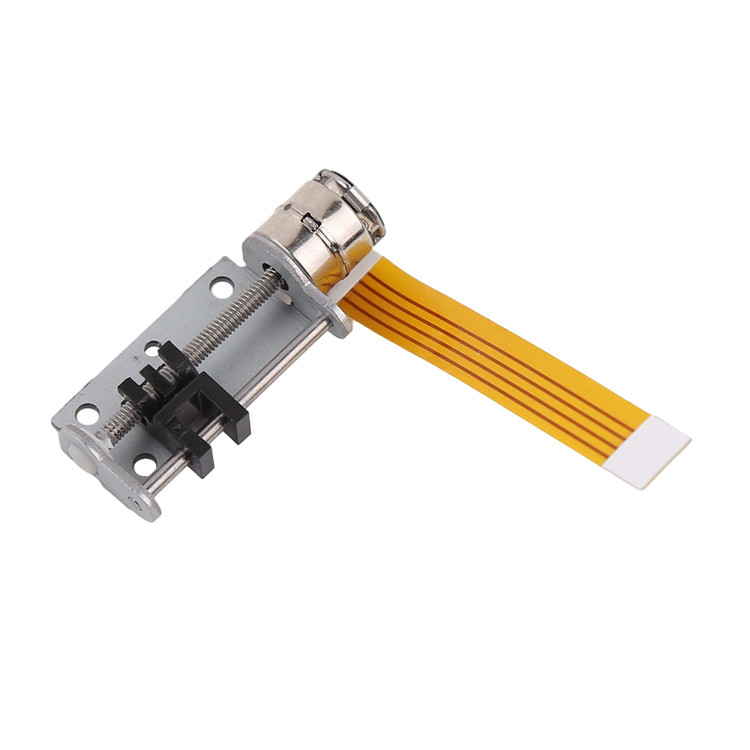

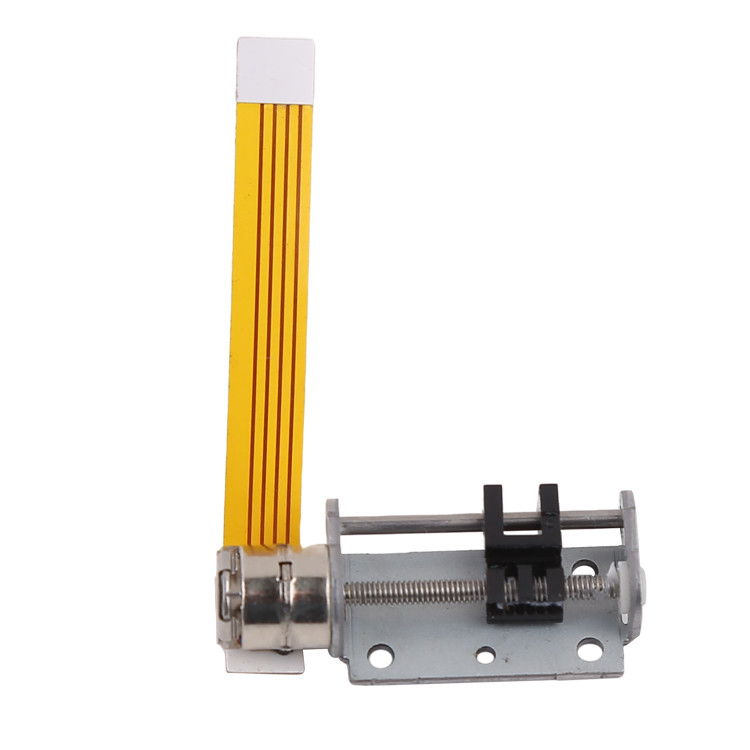

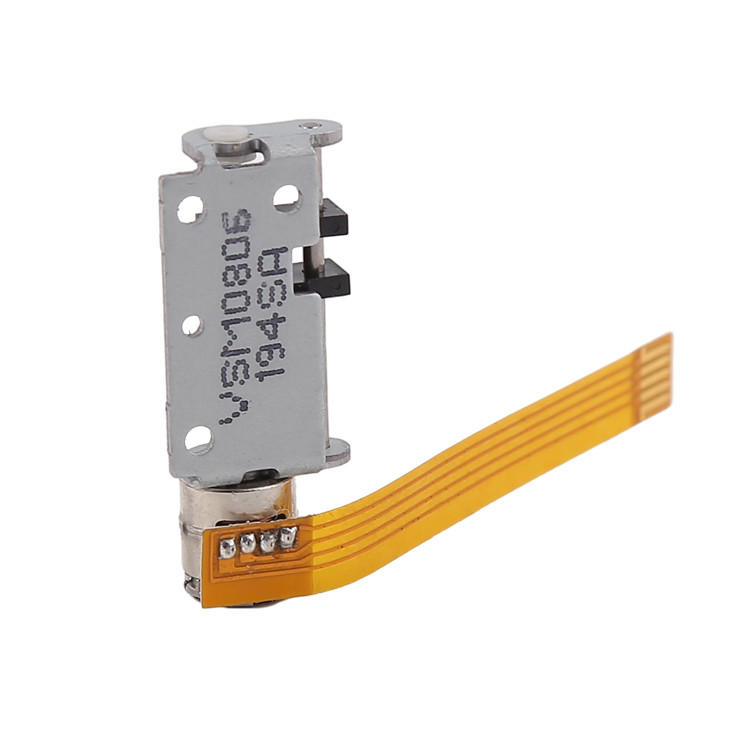

Slider Stepper Motor is a linear actuator stepper motor that provides precise, high-speed motion control. It is a captive linear actuator stepper motor, which has a step angle of 18° per step, an effective stroke of 10 mm, a motor diameter of 8 mm, a max response frequency of 2000 Hz (min) and a max starting frequency of 800 Hz (min). This linear actuator stepper motor provides smooth, reliable and precise linear motion control, and is ideal for applications that require high accuracy and speed. It is a great choice for applications in electronics, medical, automotive, aerospace and other industries.


Features:

  • Product Name: Slider Stepper Motor
  • Motor type: Linear PM Stepper Motor With Slider
  • Coil resistance: 20Ω/phase
  • Pull-out thrust: 80g Min (500 PPS)
  • Step angle: 18°/step
  • Lead screw: M2*P0.4
  • Linear Actuator
  • Mini Slider linear stepper motor
  • Precision Linear Motors


Technical Parameters:

Property Specification
Step angle 18°/step
Max Starting frequency 800Hz(Min)
Coil resistance 20Ω/phase
Voltage 3.3~5 V DC
Max response frequency 2000Hz(Min)
Lead screw M2*P0.4
Motor diameter 8 Mm
Lead screw type M2*0.4P
Effective stroke 10 Mm
Travel per step 0.02mm
Features Precision Linear Motors, Linear Actuator, Compact Linear Motor


Applications:

VIC-TECH's Slider Stepper Motor, the Model Number VSM08102, is a precise linear motor designed and manufactured in China. Our Slider Stepper Motor is certified to the RoHS standard, and each unit can be purchased with a minimum order quantity of 1. The price for each unit ranges between $2.8 and $7. Standard export package, as well as customized packaging, are available. We guarantee 10 to 30 days of delivery time after receiving the sample payment. Payment can be made through MoneyGram, Western Union, Credit Card, T/T, or L/C. Our Motor type is Linear PM Stepper Motor With Slider, with a max response frequency of 2000Hz(Min), a lead screw of M2*P0.4, a step angle of 18°/step, and a max starting frequency of 800Hz(Min). We have an annual supply capacity of 100,000 Units.

VIC-TECH's Slider Stepper Motor is ideal for any application requiring precise linear motion. It is suitable for precision mechanical testing, medical linear motion, industrial automation, linear actuators, and other related fields. Furthermore, our Slider Stepper Motor is perfect for use in applications such as precise positioning, speed control, and smooth motion control. It is an excellent choice for moving platforms, optical systems, medical instruments, and laser systems. Our Slider Stepper Motor is also suitable for use in applications such as 3D printing, linear stages, and robotics.

With its high precision and superior performance, VIC-TECH's Slider Stepper Motor is a great choice for any precision linear motion application. Our Slider Stepper Motor is a powerful and reliable linear motor that is designed for a wide variety of applications, including precision mechanical testing, medical linear motion, industrial automation, linear actuators, and more. With its high accuracy and long-term reliability, our Slider Stepper Motor is an excellent choice for any precision linear motion application.



Customization:

Customized Slider Stepper Motor from VIC-TECH

VIC-TECH's Slider Stepper Motor, Model Number VSM08102, is a compact linear motor that is RoHS certified and perfect for precise linear actuation. This motor is an 8mm slider linear stepper motor that features a step angle of 18°/step and a travel per step of 0.02mm. It has a coil resistance of 20Ω/phase, a max starting frequency of 800Hz(Min), and a minimum order quantity of one unit.

Our pricing for this Slider Stepper Motor is $2.8~$7/unit, and delivery time is 10~30 days after receiving sample payment. Payment terms are MoneyGram, Western Union, Credit Card, T/T, and L/C. We have a supply ability of 100,000 units/year. Packaging can be customized to your needs, or we can provide standard export packaging.



Support and Services:

Slider Stepper Motor technical support and service includes:

  • A team of experienced engineers to assist with product installation and setup.
  • A comprehensive trouble-shooting guide to help diagnose and fix any problems.
  • On-going technical assistance and customer support.
  • Regular updates to ensure the product remains up-to-date.
  • A warranty to cover any defects in the product.
