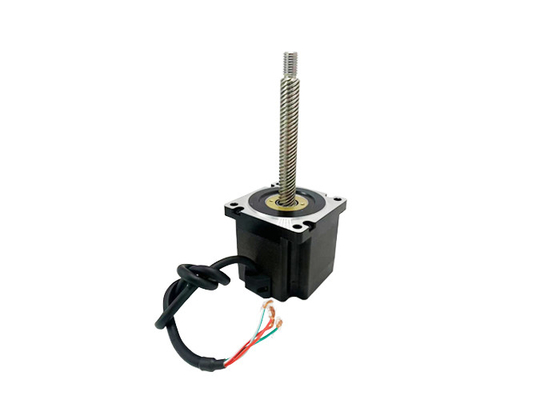

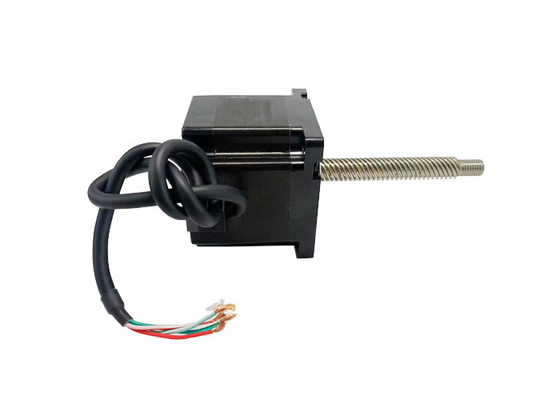

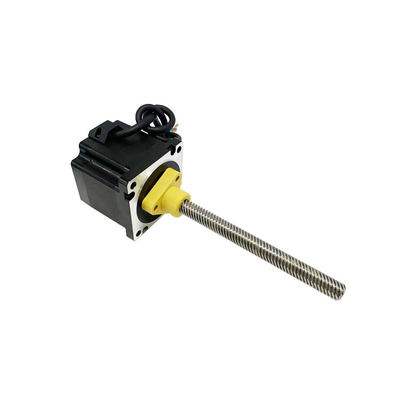

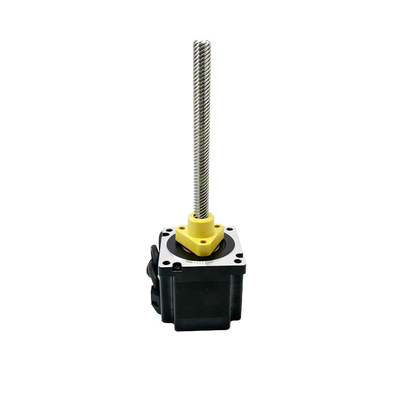

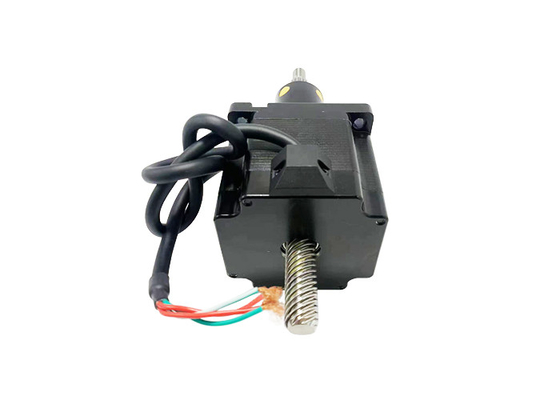

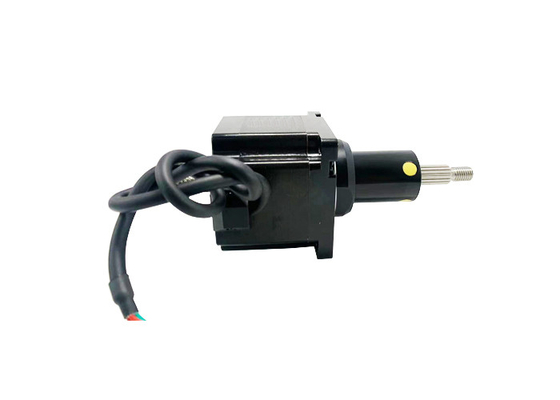

Nema 34 (86mm) hybrid stepper motor, bipolar, 4-lead, ACME lead screw, low noise, long life, formedical equipment

Nema 34 (86mm) hybrid stepper motor, bipolar, 4-lead, ACME lead screw, low noise, long life, formedical equipment

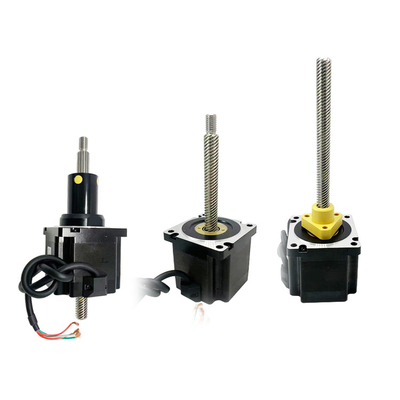

This 86mm hybrid stepper motor is available in three types: externally driven, through-axis, and through-fixed-axis. You can choose according to your specific needs.

ACME lead screw stepper motor converts rotary motion to linear movement, with the use of lead screw; the lead screw has various combinations of diameter and lead, to satisfy different application requirements.

Lead screw stepper motor is typically used in the applications that require precision linear movement, low noise, high cost effective, such as medical equipment, telecommunication device, etc.

ThinkerMotion offers full range of lead screw stepper motor (NEMA 8, NEMA11, NEMA14, NEMA17, NEMA23, NEMA24, NEMA34) with load range from 30N to 2400N, and 3 types are available (external, captive, non-captive). Customizations can be processed per request, such as screw length & screw end, magnetic brake, encoder, anti-backlash nut, etc.; and the lead screw can also be Teflon coated upon request.

Descriptions:

Certifications:

Electrical Parameters:

Lead screw specifications and performance parameters:

Note: For more lead screw specifications, please contact us.

VSM86HSM standard external motor outline drawing:

Notes:

Lead screw length can be customized

Customized machining is viable at the end of lead screw

86mm hybrid stepper motors standard captive motor outline drawing:

Notes:

Customized machining is viable at the end of lead screw

86mm Hybrid Stepper Motor Standard Through-Fixed Motor Outline Drawing​:

Notes:

Lead screw length can be customized

Customized machining is viable at the end of lead screw

Speed and thrust curve:

86 series 76mm motor length bipolar Chopper drive
100% current pulse frequency and thrust curve (Φ15.88mm lead screw)

86 series 114mm motor length bipolar Chopper drive
100% current pulse frequency and thrust curve (Φ15.88mm lead screw)

Test condition:

Chopper drive, no ramping, half micro-stepping, drive voltage 40V

Areas of application:

CNC machine tools: 86mm hybrid stepper motors are widely used in CNC machine tools for controlling the motion and position of cutting tools to realize high-precision machining operations.

Automation equipment: 86mm hybrid stepper motors can be used in various automation equipment, such as automatic packaging machines, automatic sorting systems, automated production lines, etc., for controlling motion and positioning.

3D Printing: In the field of 3D printing, 86mm hybrid stepper motors are used to control the position and movement of the print head to realize precise printing operations.

Medical Devices: 86mm hybrid stepper motors are widely used in medical devices, such as medical syringe pumps, medical robots, medical scanning equipment, etc. for precise position control and motion control.

Telecommunications equipment: 86mm hybrid stepper motors can be used for precision positioning and control in telecommunications equipment, such as the positioning system of communication antennas, precise control of fiber optic equipment.

Textile machinery: In the textile industry, 86mm hybrid stepper motors can be used to control spinning machines, looms and other equipment to ensure the accuracy and stability of the textile process.

Robotics: 86mm hybrid stepper motors can be used in a variety of robotics applications, including industrial robots, service robots, collaborative robots, etc., for precise movement and operation.

Automated Warehousing Systems: In automated warehousing and logistics systems, 86mm hybrid stepper motors can be used to control conveyor belts, elevators, stackers and other equipment to achieve accurate positioning and handling of items.

Advantage:

Smooth and precise motion: 86mm hybrid stepper motors can achieve smooth and precise motion due to their inherent step resolution. This allows for accurate positioning and smooth movement, reducing the risk of vibrations and ensuring high-quality performance.

High torque at low speeds: Hybrid stepper motors provide high torque output even at low speeds, making them suitable for applications that require strong holding or starting torque. This characteristic is particularly advantageous in situations where the motor needs to maintain position against external forces.

Wide range of step resolutions: 86mm hybrid stepper motors offer a wide range of step resolutions, allowing for fine control of motion. By utilizing microstepping techniques, the motor can divide each step into smaller sub-steps, resulting in smoother motion and improved position accuracy.

Easy to drive and control: Hybrid stepper motors have a simple drive and control architecture, typically using pulse and direction signals. This makes them easy to integrate into various control systems, reducing complexity and development time.

High reliability and durability: 86mm hybrid stepper motors are known for their robustness and long operational life. They can withstand demanding operating conditions, such as temperature variations and mechanical stresses, without compromising performance.

Cost-effective solution: Hybrid stepper motors offer a cost-effective solution compared to other motion control technologies, such as servo motors. They provide a good balance between performance and cost, making them suitable for applications where budget considerations are important.

Versatile applications: 86mm hybrid stepper motors find applications in various industries, including robotics, automation, manufacturing, 3D printing, medical equipment, and more. Their versatility allows them to be used in a wide range of applications that require precise positioning and control.

Motor Selection Requirements:

►Movement/mounting direction

►Load Requirements

►Stroke Requirements

►End machining requirements

►Precision Requirements

►Encoder Feedback Requirements

►Manual Adjustment Requirements

►Environmental Requirements

Production workshop:
