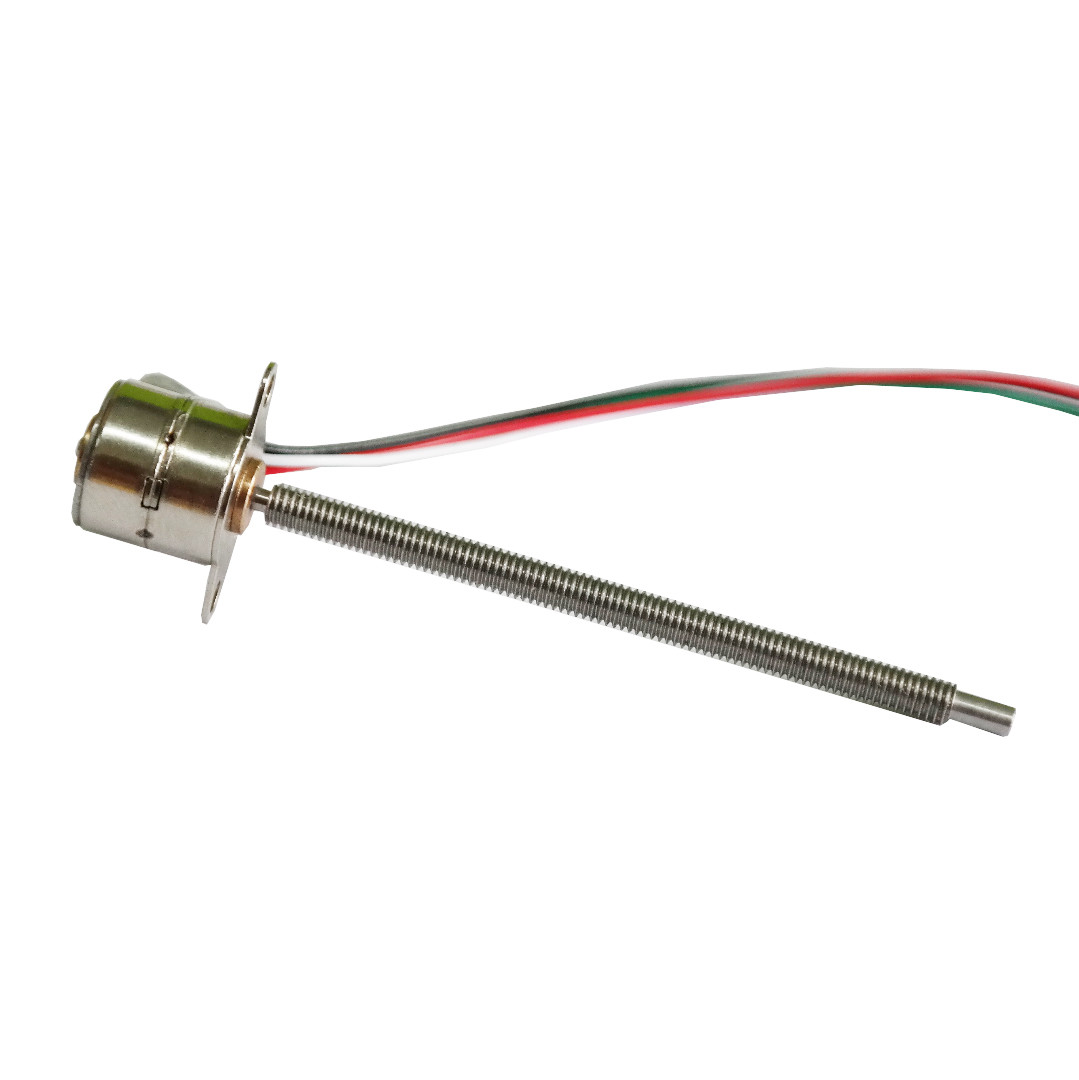

VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw

  • VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw
  • VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw
  • VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw
  • VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw
  • VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw
  • VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1070
Minimum Order Quantity 1Unit
Price $2~$7.5/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Phase 2
Voltage 5V Current / Phase 250mA/Phase
Resistance 40Ω±7% Weight 5.5g
Rotation CW/CCW Type Permanent Magnet
Lead Screw M3 Thread Lead Screw Length Customizable
High Light

10mm Micro Stepper Motor

,

2 Phase Micro Stepper Motor

,

VSM1070
Leave a Message
Product Description

Customized VSM1070 10 mm stepper motor with threaded M3 lead screw



VSM1070 stepper motor is specially customized 10 mm motor for lead screw. It has 18 degree step angle

The lead screw is M3 standard thread (with 0.5mm pitch), and it's punched with a 1.5mm hole.

The motor has 1.5mm shaft diameter to match the lead screw perfectly.

Lead screw length can be customized, also, motor can be changed to 15mm if you want more torque.

Mechanical Dimension:MM

VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw 0

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10mm micro stepper motor
Model VSM1070
Current Per Phase  250mA /phase
Coil Resistance 40Ω±7%
No. Of phase 2  Phases
Step Angle 18 degree
Lead srew type M3 thread (0.5 pitch)
Lead screw length Can be customized
Pull-In Torque More Than 5.0gf.cm At 500 pps
Pull-In Out More Than 6.0gf.cm At 500 pps
Hoiding Torque More Than 13.0gf.cm At 500 pps
Max. Response Frequency More Than 1500 pps
Max. Starting Frequency More Than 1000 pps
Insulation Class Class E for Coils
Insulation Strength 100V AC for One Second
Insulation Resistance 50MΩ DC 500 V
Operating Temperature Range -0~+55 ℃

Lead Wire

 UL1571 28#
Weight 5.5g
OEM & ODM SERVICE AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw 1

VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw 2

VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw 3

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw 4



Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

VSM1070 10mm Micro Stepper Motor With Threaded M3 Lead Screw 5
