35mm 0.6 A Weight 84 g PM Miniature Stepper Motors With Linear Actuation , RoHS Certified

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 35YC25-A02
Minimum Order Quantity 1Unit
Price $6.8~$18/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance 11Ω±10% Phase 2
Type Permanent Magnet Step Angle(degrees) 7.5°
Voltage 12V DC The Mark Thrust 100N
The Mark Pull 100N After All Journey ≥5.3mm
Weight 84 G
High Light

high torque stepper motor

,

electric linear actuator motor

,

PM Miniature Stepper Motors

Leave a Message
Product Description



35mm PM Linear Stepper Motor, 12VDC Step Angle 7.5 Permanent Magnet Stepper Linear Motor for 3D Printer Stepper Motor

35YC25-A02 is a Stepper motor whit a lead screw, when rotor running CW or CCW,the lead screw will go forword or backword. at the same time ,the lead will rotating.Motor stepper step angle is7.5 degree, lead pitch is 2.5mm, when motor stepper rotate one step, the lead move 0.0254mm



This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.

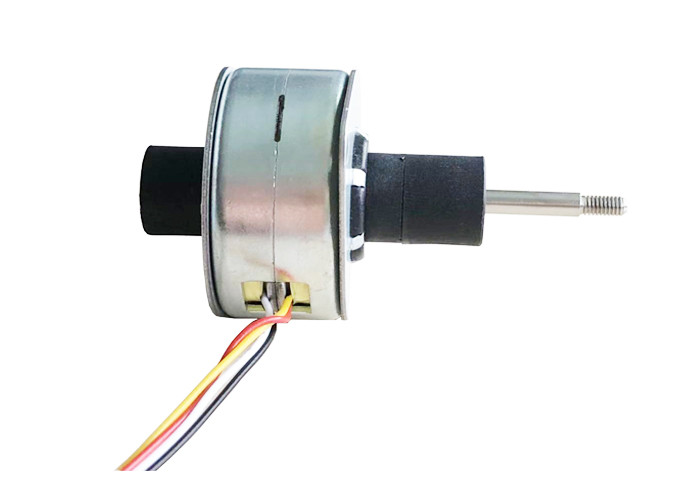

35mm 0.6 A Weight 84 g PM Miniature Stepper Motors With Linear Actuation , RoHS Certified 0

Mechanical Dimension:MM

35mm 0.6 A Weight 84 g PM Miniature Stepper Motors With Linear Actuation , RoHS Certified 1

Technical Features



35YC25-A02 is a Stepper motor whit a lead screw, when rotor running CW or CCW,the lead screw will go forword or backword. at the same time ,the lead will rotating.

motor stepper step angle is7.5 degree, lead pitch is 2.5mm, when motor stepper rotate one step, the lead move 0.0254mm



This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

35mm  linear stepper motor

Model

35YC25-A02

Resistance

11Ω±10%

Travel Per Step Avail

0.0254mm

The Mark Thrust

100 N

The Mark Pull 100 N

Inductance

8.2±20% (mH)

Current Per Phase 0.6 A

After All Journey

≥5.3mm

Protection Rate

IP30

Life

1500 000 return

Operating Temp Range -10℃~40℃
Insulation Resistance >100MΩ

Lead Wire

UL 1061 28#

OEM & ODM Srvice

Available



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

35mm 0.6 A Weight 84 g PM Miniature Stepper Motors With Linear Actuation , RoHS Certified 2
