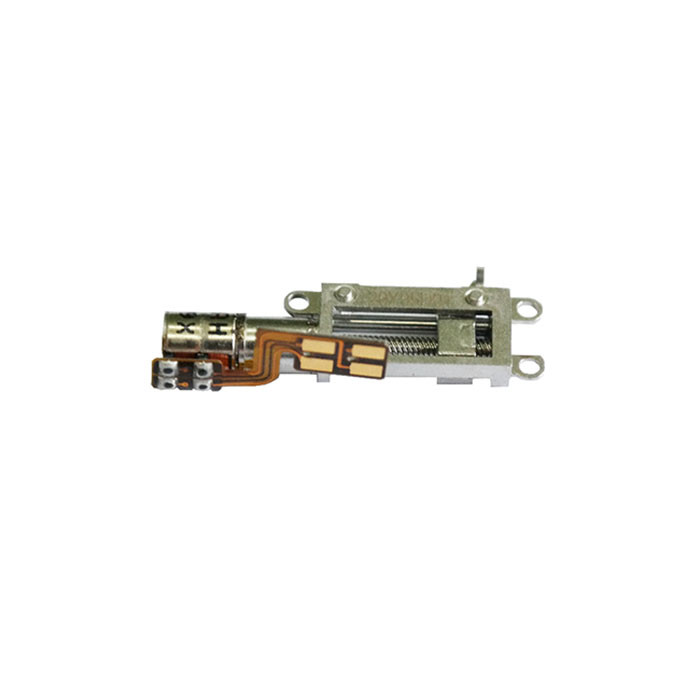

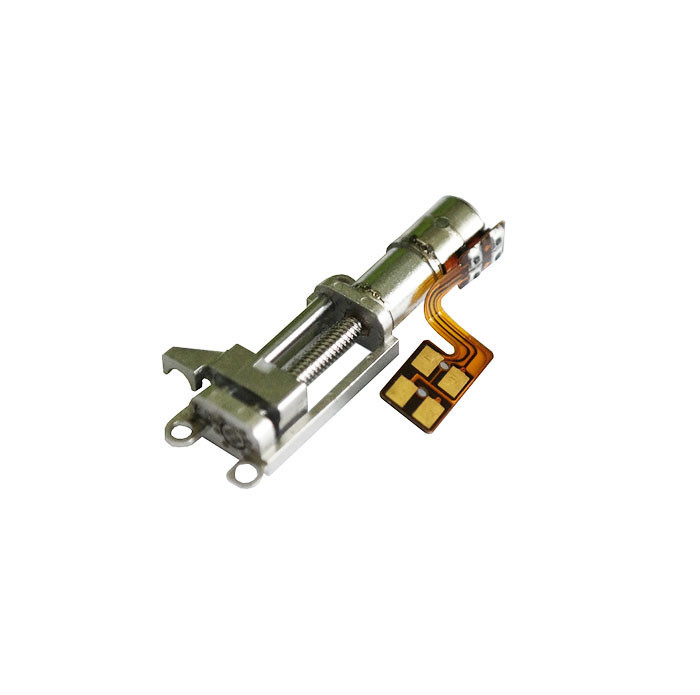

5V 5mm Diameter Micro Linear Stepper Motor With Gearbox

5V 5mm Diameter Micro Linear Stepper Motor With Gearbox

  • 5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
  • 5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
  • 5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
  • 5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
  • 5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: VIC-TECH
Certification: RoHS
Model Number: SM5-PG-Linear
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $6.5~$15.5/Unit
Packaging Details: Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time: 10-30 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000000 Units/year
Contact Now
Detailed Product Description
Step Angle(degrees):: 22.5 Degree Phase: 2
Voltage: 5 V Type: Permanent Magnet
Thrust: Over 250 G Motor Type: Linear Stepper Motor With Gearbox
Motor Diameter: 5mm Gear Ratio: 20.25:1
High Light:

5mm Diameter Linear Stepper Motor

,

5V Micro Linear Stepper Motor

,

5V Micro Stepper Motor

Micro 5mm diameter linear stepper motor with gearbox and slider

This motor is a 5mm diameter stepper motor, attached with 20.25:1 gear ratio gearbox.

This is a linear stepper motor, and the lead screw pitch 0.4mm, and it has 6 starts, so lead of lead screw is 2.4mm.

The effective stroke of this motor is about 8mm, and slider can move up and down based on driver’s set up.

This motor has very small size and can be used on high precision electrical and electronic devices.

Please feel free to contact us if you want to order samples.



Mechanical Dimension:MM

5V 5mm Diameter Micro Linear Stepper Motor With Gearbox 0

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Model number SM5-PG-Linear
Motor type Linear stepper motor with gear box
Motor diameter 5mm
Rated voltage 5V
Gearbox ratio 20.25:1
Lead screw pitch 0.4mm
Lead screw starts 6 starts
Step angle 22.5°
Stroke About 8mm
Thrust 250 g (5V/2400PPS)





Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

5V 5mm Diameter Micro Linear Stepper Motor With Gearbox 1

Product Detail Presentation



5V 5mm Diameter Micro Linear Stepper Motor With Gearbox 2
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox 3
